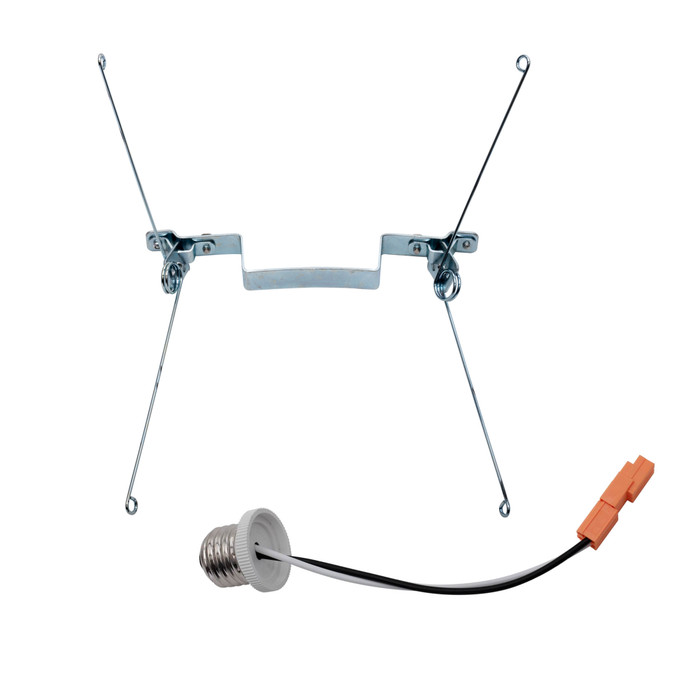

WAC Lighting 306-RFK Recessed LED Retrofit Kit, Wet Location
The WAC Lighting 306-RFK Recessed Retrofit Kit converts a Junction Box version of the WAC Disc into a recessed retrofit fixture, using multiple high-powered LEDs to illuminate a white acrylic diffuser uniformly without the socket shadows common to conventional flush mounts. This Wet Location, Energy Star Rated kit installs without a transformer directly into an existing 5" or 6" recessed can, making it ideal for closets and corridors.
Key Features
- Trade Size: Designed to fit into an existing 5" or 6" recessed unit for a clean retrofit upgrade.
- Durable Construction: Aluminum housing paired with a white acrylic diffuser delivers even, shadow-free light output.
- No-Wire Installation: Includes an A19 socket set with spring-located mounting clips for a fast, tool-friendly retrofit into existing cans.
- Compatibility: Engineered for use with WAC Disc part numbers FM-306-9CSJB or FM-309-9CSJB.
- Wet Location Rated: IP65 rated for Dry, Damp, and Wet locations, suitable for mounting on a ceiling or wall in a junction box.
- Closet Rated: Approved for use in closets and corridors where clearance-rated fixtures are required.
- ADA Compliant: Meets accessibility design requirements for commercial and residential installations.
Certifications & Compliance
- ETL, cETL, CSA, UL #1598 Listed
- IP65 Rated for Dry, Damp, and Wet Locations
- Energy Star 2.0 Certified
- CEC Title 24 JA8-2016 Compliant
- Closet Rated
- ADA Compliant
Technical Specifications
- ADA Compliant: Yes
- Energy Star: Yes
- Hardwired or Portable: Hardwired
- Product Type: Indoor Ceiling Lighting
- Safety Rating: ETL, cETL, IP65, CSA, Energy Star, Title 24, ADA, Closet Rated
- Shade/Glass Description: White Acrylic Diffuser
- Warranty: 5 Years Functional, 2 Years Finish
- Subcategory: Accessory
- Material: Aluminum
- Country of Origin: Thailand
- Location Rating: Wet
- Style: Functional
- Mounting: Ceiling/Wall; Any
Typical Applications
- Closet and Corridor Lighting Upgrades
- Recessed Can Retrofit Conversions (5" or 6")
- Ceiling or Wall Junction Box Mounting
- Wet and Damp Location Installations
- Residential and Light Commercial Renovation Projects
Why WAC Lighting?
WAC Lighting builds this retrofit kit with a durable aluminum housing and a white acrylic diffuser engineered to eliminate the socket shadowing seen in ordinary flush mounts. Backed by ETL, cETL, CSA, and UL #1598 listings along with Energy Star 2.0 and CEC Title 24 JA8-2016 certification, it delivers code-compliant, wet-location-rated performance for professional retrofit installations, supported by a 5-year functional and 2-year finish warranty.
Manufacturer Resources
Specification Sheet
Product Specs
- ADA Compliant:
- Yes
- Collection:
- Disc
- Energy Star:
- Yes
- Hardwired or Portable:
- Hardwired
- Product Type:
- Indoor Ceiling Lighting
- Shade/Glass Description:
- White Acrylic Diffuser
- Subcategory:
- Accessory
- Product Material:
- Aluminum
- Location Rating:
- Wet
- Product Style:
- Functional
- Mounting Method:
- Ceiling/Wall;Any
WAC Lighting WAC-FM-306-RFK-P – Frequently Asked Questions
1) Will the WAC Lighting 306-RFK retrofit kit fit my existing 5 inch or 6 inch recessed can?
Yes. The 306-RFK is built to drop into an existing 5 inch or 6 inch recessed housing. It uses spring-located mounting clips and an A19 socket set, so it threads into the existing lamp socket rather than requiring new wiring, and no transformer is needed.
2) Can the 306-RFK be used on its own, or does it need a WAC Disc fixture?
It is not a standalone luminaire. The 306-RFK is the accessory that converts a junction box version of the WAC Disc into a recessed retrofit fixture, and it is engineered for use with WAC Disc part numbers FM-306-9CSJB or FM-309-9CSJB. If you do not already have one of those Disc units, the retrofit kit alone will not light the opening.
3) Is this WAC retrofit kit rated for a shower, soffit, or covered exterior ceiling?
Wet location rated and IP65, so it holds up in showers, covered porches, and damp corridors as well as plain dry interiors. Mounting is ceiling or wall over a junction box.
4) Can I install the WAC 306-RFK in a clothes closet and stay code compliant?
Yes, it carries a Closet Rated listing, which is what inspectors look for when a fixture goes in a clothes closet with storage clearance rules. It is also ADA compliant, so it works in corridors and accessible spaces.
5) Does this WAC retrofit kit meet California Title 24 for a residential remodel?
Yes. The 306-RFK is CEC Title 24 JA8-2016 compliant and Energy Star 2.0 certified, along with ETL, cETL, CSA and UL 1598 listings. That covers the usual documentation an inspector or a rebate program asks for on a California retrofit.
6) Is the WAC 306-RFK hardwired or does it plug in?
Hardwired. It mounts over a junction box on a ceiling or wall, and in a can retrofit it picks up power through the existing A19 socket set rather than through a cord and plug.
7) Will I see lamp shadows through the lens like I do on a cheap flush mount?
No. The kit drives multiple high-powered LEDs behind a white acrylic diffuser, which spreads the output evenly instead of showing the socket shadow typical of a single-lamp flush mount. The housing is aluminum.
