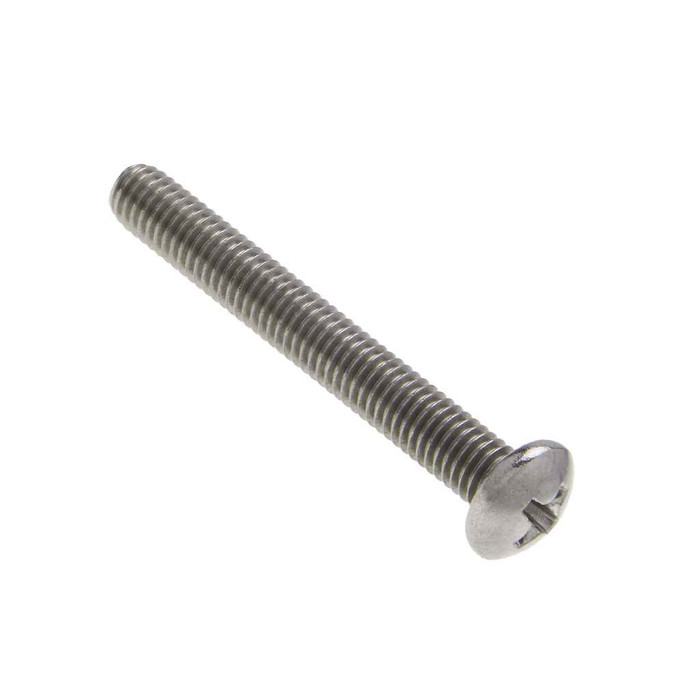

Metallics JSPMP38SS 10-32 x 2-1/2 in. Pan Head Phillips Machine Screws - 18-8 Stainless - 100qty

Metallics JSPMP38SS 10-32 x 2-1/2 in. Pan Head Phillips Machine Screws - 18-8 Stainless - Each

(No reviews yet) Write a Review

Model: JSPMP38SS
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$192.86
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
10-32 x 2-1/2 in. Pan Head Phillips Machine Screws - 18-8 Stainless - 100qty

  • Features

    • Pan head with Phillips Drive
    • 18-8 Stainless Material
    • 10-32 Diameter, 2-1/2" Length

  • Additional Notes

    • Other sizes and quantities available by request | Tensile strength values for stainless screws are offered as approximations only; there is no single standard for the performance requirements of stainless machine screws.

Manufacturer Resources

Product Specs

Minimum Purchase:
100 units
Arra Compliant:
N
Buy American Compliant:
No
Dimensional Standard:
ASME B18.6.3-2010
Division:
Electrical H1
Drive Type:
Phillips
Driver Size:
#2
Fastener Head Height:
0.122 - 0.133 in.
Fastener Head Type:
Pan
Fastener Head Width:
0.357 - 0.373 in.
Fastener Length:
2/1/02
Field Application:
Electrical, Plumbing, Heating and Air Conditioning Industries
Hardness:
Rockwell BBS-B9S
Language Code:
EN
Material Standard:
SAE
Neurspe:
https://ideadigitalasset.com/DAMRoot/Original/10035/11237_ID-SPE-v1-ID-SPE-v1-Pan_Head_Screw_St_SS.pdf
Order Minimum Imperial:
100
Order Minimum Uom Imperial:
JR
Pack Type:
Jar
Phillips Recess Diameter:
0.192
Product Group:
Fasteners
Product Height:
4.57 in
Product Length:
3 in
Product Weight:
1.9 lbs
Product Width:
3 in
Recess Penetration Gaging Depth:
0.089 - 0.113
Sub Division:
Electrical-E H2
Tensile Strength:
80000 psi minimum
Thread Per Inch:
32
Department:
Electrical
Product Subgroup:
Screws
Product Type:
Machine Screw
Type2:
Machine Screw
Series:
SPMP
Product Details:
Machine Screw
Product Material:
18-8 Stainless

Metallics JSPMP38SS – Frequently Asked Questions

1) Will a 10-32 machine screw thread into standard electrical box and device ears?
Yes. The Metallics JSPMP38SS is a 10-32 thread, 32 threads per inch, which is the thread size used for device mounting holes in outlet boxes, switch boxes, and plaster rings. At 2-1/2 inches long it is the length you reach for when the device has to stand off a deep mud ring or a stack of extension rings rather than sit flush.
2) Can I use these on a federally funded job with Buy American requirements?
No. The JSPMP38SS is listed as not Buy American compliant and not ARRA compliant, with multiple countries of origin. For a project with domestic sourcing requirements in the contract, you need a fastener certified as domestically produced.
3) What driver do I need for these Phillips pan head screws?
A #2 Phillips bit. The recess is a Phillips drive with a 0.192 inch recess diameter and a gaging depth of 0.089 to 0.113 inch, so a #2 seats fully. A #1 will cam out and a #3 will not bottom in the recess.
4) Can I use 18-8 stainless machine screws outdoors or in a damp location?
18-8 stainless is the usual choice for exterior and wet-location work where plated steel would rust out, and that is the material these pan head screws are made from. For coastal or chloride-heavy exposure, 316 is the step up from 18-8.
5) What dimensional standard do these Metallics machine screws meet?
They are built to ASME B18.6.3-2010, the standard for inch-series machine screws, with material to SAE. That is what lets you specify them against a drawing that calls out B18.6.3 head and recess dimensions rather than just a size.
6) How are these sold, and what is the minimum I can buy?
They ship in a jar of 100, and 100 is the order minimum. Shipping weight for the jar is 1.9 lbs. Other sizes and quantities are available by request.
7) Will a machine screw like this hold in drywall or wood on its own?
No. A machine screw has a uniform straight thread and no point, so it needs a tapped hole, a threaded device ear, or a nut on the back side. For fastening into wood, drywall, or sheet metal without pre-tapped threads, you want a wood screw, self-drilling sheet metal screw, or an anchor instead.
8) What tensile strength can I count on from these stainless screws?
80,000 psi minimum, with hardness reported as Rockwell BBS-B9S. Metallics notes that tensile values for stainless machine screws are approximations, since there is no single performance standard for them. If a drawing calls out a graded strength value, a graded steel fastener is the correct specification rather than stainless.
