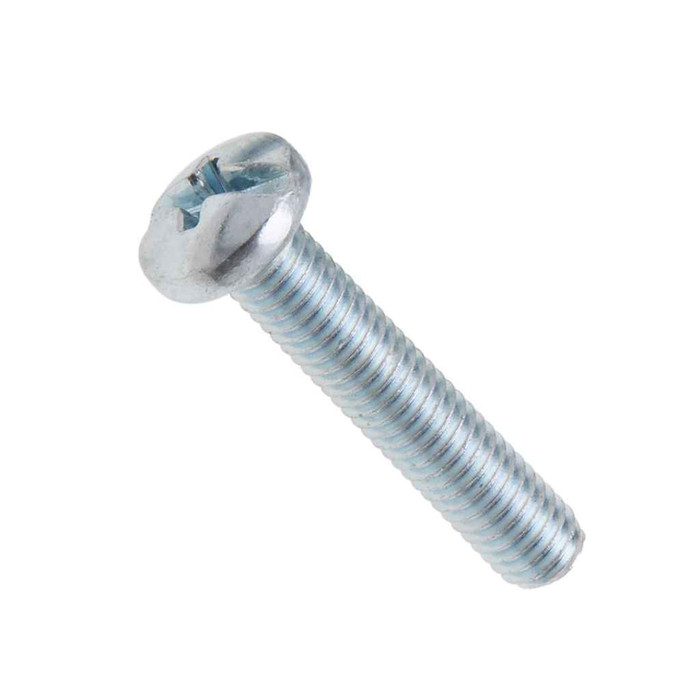

Metallics JPMP36 10-32 x 3/4 in. Pan Head Phillips Machine Screws - Steel Zinc - 100qty

Metallics JPMP36 10-32 x 3/4 in. Pan Head Phillips Machine Screws - Steel Zinc - Each

(No reviews yet) Write a Review

Model: JPMP36
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$50.47
$0.47
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
10-32 x 3/4 in. Pan Head Phillips Machine Screws - Steel Zinc - 100qty

  • Additional Notes

    • Other sizes and quantities available by request | Tensile strength values for stainless screws are offered as approximations only; there is no single standard for the performance requirements of stainless machine screws.

  • Features

    • Pan head with Phillips Drive
    • Steel Zinc Material
    • 10-32 Diameter, 3/4" Length

Manufacturer Resources

Product Specs

Minimum Purchase:
100 units
Arra Compliant:
N
Buy American Compliant:
No
Dimensional Standard:
ASME B18.6.3-2010
Division:
Electrical H1
Drive Type:
Phillips
Driver Size:
#2
Fastener Head Height:
0.122 - 0.133 in.
Fastener Head Type:
Pan
Fastener Head Width:
0.357 - 0.373 in.
Fastener Length:
4-Mar
Field Application:
Electrical, Plumbing, Heating and Air Conditioning Industries
Hardness:
Rockwell B70-B100
Language Code:
EN
Material Standard:
AISI 1006 - 1022
Neurspe:
https://ideadigitalasset.com/DAMRoot/Original/10035/11237_ID-SPE-v1-ID-SPE-v1-Pan_Head_Screw_St_SS.pdf
Order Minimum Imperial:
100
Order Minimum Uom Imperial:
JR
Pack Type:
Jar
Phillips Recess Diameter:
0.192
Product Group:
Fasteners
Product Height:
2.15 in
Product Length:
3 in
Product Weight:
0.68 lbs
Product Width:
3 in
Recess Penetration Gaging Depth:
0.089 - 0.113
Sub Division:
Electrical-E H2
Tensile Strength:
60000 psi minimum
Thread Per Inch:
32
Department:
Electrical
Product Subgroup:
Screws
Product Type:
Machine Screw
Type2:
Machine Screw
Series:
PMP
Product Finish:
Zinc
Product Details:
Machine Screw
Product Material:
Steel Zinc

Metallics JPMP36 – Frequently Asked Questions

1) Are these Metallics pan head screws Buy American or ARRA compliant for a government job?
No. The JPMP36 pan head machine screw is not Buy American compliant and is not ARRA compliant, and country of origin is listed as multiple. If your specification carries a domestic-content requirement, this part will not satisfy it.
2) What size Phillips driver fits the JPMP36 machine screw?
A #2 Phillips. The recess is 0.192 inch in diameter with a gaging depth of 0.089 to 0.113 inch, so a #2 bit seats fully. A #1 will cam out and chew the recess; a #3 will not seat.
3) What dimensional standard do these 10-32 pan head screws meet?
Dimensions conform to ASME B18.6.3-2010, the standard for machine screws, so head and recess geometry interchange with any other B18.6.3 10-32 pan head Phillips screw. Steel is AISI 1006-1022 with a hardness of Rockwell B70-B100.
4) How much load will a 10-32 steel zinc machine screw take?
Tensile strength is 60,000 psi minimum on these low-carbon steel screws. That is standard commercial machine screw strength, fine for mounting boxes, straps, plates and brackets. It is not a structural or high-strength fastener, so for anything carrying real load look to a grade-rated bolt instead.
5) Is zinc plated steel okay outdoors or in a damp location?
The JPMP36 carries a zinc finish over carbon steel, which handles indoor and dry locations well but will eventually rust in wet, outdoor or washdown environments. For those, specify a stainless machine screw in the same 10-32 x 3/4 size.

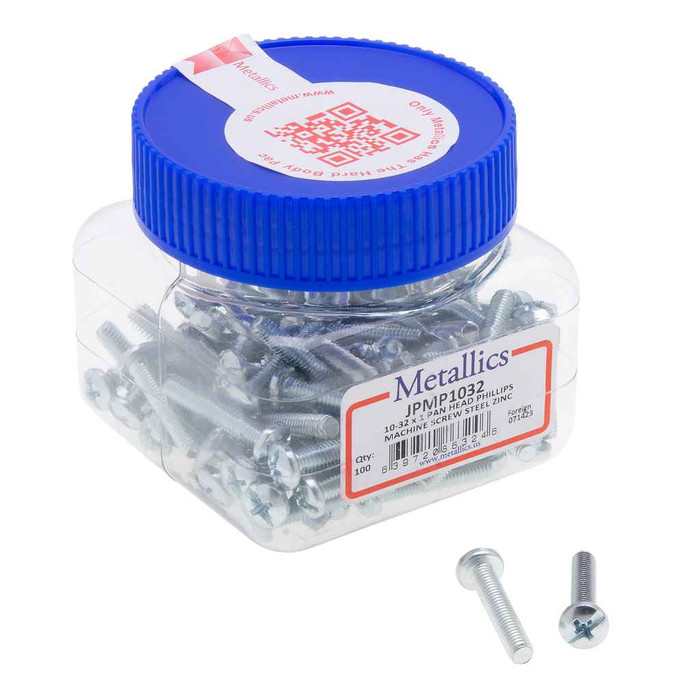

6) How are these 10-32 x 3/4 machine screws packaged, and what is the minimum order?
They ship in a jar of 100 pieces, and the jar is the minimum order quantity. Total packed weight is 0.68 lbs. If you need a different size or a larger count, other lengths and quantities are available by request.
7) Will these machine screws work for HVAC and plumbing work, or are they electrical only?
They are intended for the electrical, plumbing, heating and air conditioning trades. The same 10-32 x 3/4 pan head Phillips is used for duct accessory brackets, equipment covers and panel mounting as readily as for electrical device work.
