Metallics JPMP20 10-32 x 3/8 i...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$50.19
$0.19

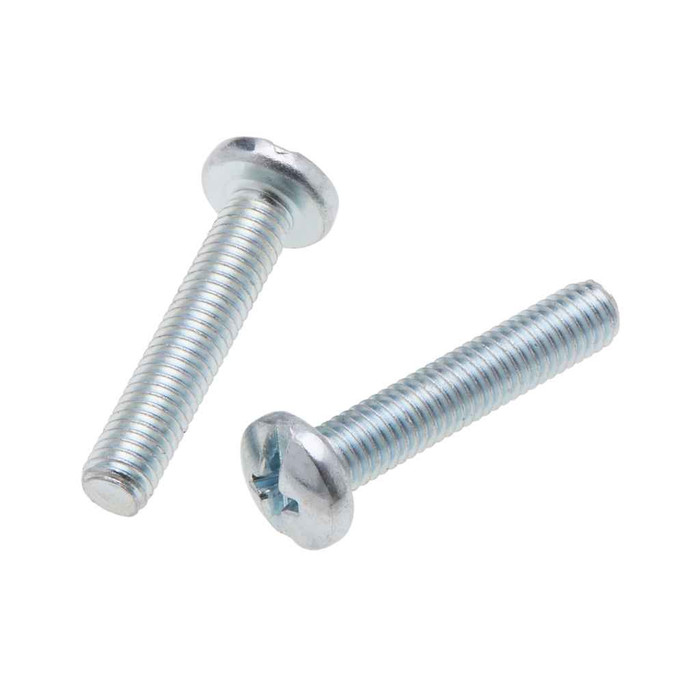

Metallics JPMP20 10-32 x 3/8 in. Pan Head Phillips Machine Screws - Steel Zinc - 100qty

Metallics JPMP20 10-32 x 3/8 in. Pan Head Phillips Machine Screws - Steel Zinc - Each

(No reviews yet) Write a Review

Model: JPMP20
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$50.19
$0.19
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
10-32 x 3/8 in. Pan Head Phillips Machine Screws - Steel Zinc - 100qty

  • Additional Notes

    • Other sizes and quantities available by request | Tensile strength values for stainless screws are offered as approximations only; there is no single standard for the performance requirements of stainless machine screws.

  • Features

    • Pan head with Phillips Drive
    • Steel Zinc Material
    • 10-32 Diameter, 3/8" Length

Manufacturer Resources

Product Specs

Minimum Purchase:
100 units
Arra Compliant:
N
Buy American Compliant:
No
Dimensional Standard:
ASME B18.6.3-2010
Division:
Electrical H1
Drive Type:
Phillips
Driver Size:
#2
Fastener Head Height:
0.122 - 0.133 in.
Fastener Head Type:
Pan
Fastener Head Width:
0.357 - 0.373 in.
Fastener Length:
8-Mar
Field Application:
Electrical, Plumbing, Heating and Air Conditioning Industries
Hardness:
Rockwell B70-B100
Language Code:
EN
Material Standard:
AISI 1006 - 1022
Neurspe:
https://ideadigitalasset.com/DAMRoot/Original/10035/11237_ID-SPE-v1-ID-SPE-v1-Pan_Head_Screw_St_SS.pdf
Order Minimum Imperial:
100
Order Minimum Uom Imperial:
JR
Pack Type:
Jar
Phillips Recess Diameter:
0.192
Product Group:
Fasteners
Product Height:
2.15 in
Product Length:
3 in
Product Weight:
0.56 lbs
Product Width:
3 in
Recess Penetration Gaging Depth:
0.089 - 0.113
Sub Division:
Electrical-E H2
Tensile Strength:
60000 psi minimum
Thread Per Inch:
32
Department:
Electrical
Product Subgroup:
Screws
Product Type:
Machine Screw
Type2:
Machine Screw
Series:
PMP
Product Finish:
Zinc
Product Details:
Machine Screw
Product Material:
Steel Zinc

Metallics JPMP20 – Frequently Asked Questions

1) Do these Metallics machine screws meet a recognized dimensional spec for submittals?
Dimensions conform to ASME B18.6.3-2010, the standard for machine screws and tapping screws, and the material is AISI 1006 to 1022 low carbon steel. Tensile strength is 60,000 psi minimum with a hardness of Rockwell B70 to B100. Those are the figures an MRO or institutional buyer needs for a fastener submittal.
2) Are Metallics JPMP20 screws Buy American or ARRA compliant for government work?
No. The JPMP20 is not Buy American compliant and is not ARRA compliant, and country of origin is listed as multiple. On federally funded projects with domestic sourcing requirements, these will not qualify.
3) What screwdriver or bit do I need for Metallics JPMP20 machine screws?
A #2 Phillips bit is the specified driver for these screws. The recess measures 0.192 in. in diameter with a gaging depth of 0.089 to 0.113 in., so a #1 bit will cam out and a #3 will not seat properly.
4) How much clearance does the pan head on the JPMP20 screw take up?
Head height runs 0.122 to 0.133 in. and head width 0.357 to 0.373 in. That is a low, broad bearing surface, so it spreads load on sheet metal or a plastic device without the countersink a flat head would require, and it sits under about an eighth of an inch above the surface.
5) Are Metallics JPMP20 screws suitable for outdoor or damp locations?
These are carbon steel screws with a zinc finish. Zinc plating handles indoor and dry locations and gives limited corrosion resistance, but it is not a marine or sustained wet-location finish. For exterior, washdown, or coastal work, specify a stainless 10-32 pan head Phillips instead.
6) How are Metallics JPMP20 machine screws packaged and what is the minimum order?
They ship in a jar of 100, and the jar is the minimum order unit. The packed jar weighs 0.56 lbs. Metallics notes other sizes and quantities are available by request.
7) Will a 10-32 machine screw thread into sheet metal or do I need a tapped hole?
A machine screw like the JPMP20 has straight machine threads at 32 TPI and needs a pre-tapped hole or a nut. It will not form its own thread the way a self-tapping or sheet metal screw does, so for untapped sheet metal use a tapping screw instead.
