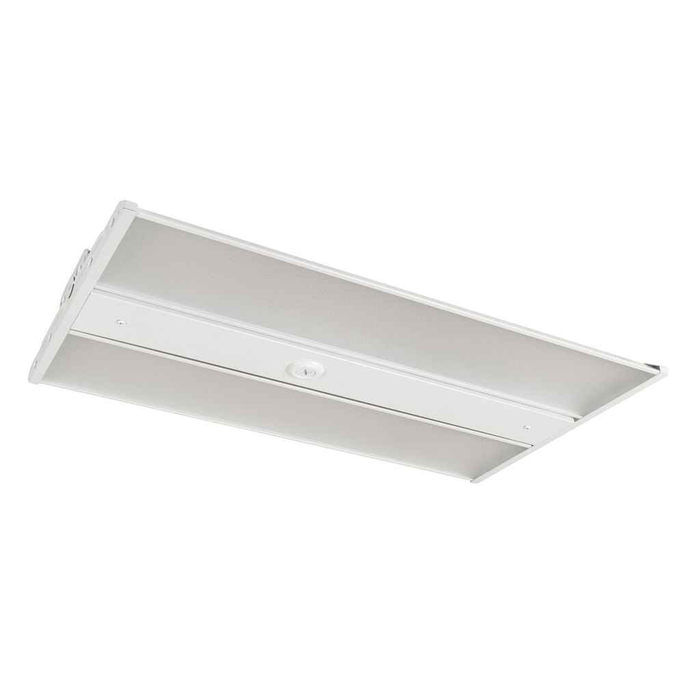

Keystone 105W Linear LED High Bay with Power and Color Select 2ft Ceiling Mount

Keystone 105W Linear LED High Bay with Power and Color Select 2ft Ceiling Mount

(No reviews yet) Write a Review

Model: KT-HBLED105PS-2FB-8CSD-VDIM-P
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$372.99
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Keystone 105W Linear LED High Bay with Power and Color Select

Professional LED lighting solution with selectable power and color temperature

The Keystone 105W Linear LED High Bay delivers versatile professional lighting with selectable power options (105/90/65W) and dual color temperature settings (4000K/5000K). This 2ft linear ceiling mount fixture features 0-10V dimming capability and provides up to 15,300 lumens output with a white housing designed for commercial and industrial applications.

Professional Features & Benefits

  • Selectable Power Options (105/90/65W): Customize energy consumption and light output to match specific application requirements while maintaining efficiency.
  • Dual Color Temperature (4000K/5000K): Choose between neutral white and daylight color temperatures to optimize visual comfort and task performance.
  • Variable Lumen Output (15300/13500/10200): Adjust brightness levels to suit different ceiling heights and lighting needs while maximizing energy savings.
  • 0-10V Dimming Compatibility: Integrate with building automation systems for precise light level control and additional energy management.
  • DLC Premium Certification: Meets stringent energy efficiency standards for utility rebate eligibility and professional installation confidence.
  • 50,000 Hour Rated Life: Provides long-term reliability with minimal maintenance requirements, reducing total cost of ownership.
  • Twist-in Sensor Ready Design: Accommodates occupancy sensors for automated lighting control and enhanced energy efficiency.

Technical Specifications

  • Accessory Device: No
  • Cec T20: No
  • Cri: >80
  • Dimming: 0-10V
  • Dlc: No
  • Dlc Premium: Yes
  • Energy Star: No
  • Housing Color: White
  • Input Voltage: 120-277
  • Led Module Included: No
  • Mounting Method: Ceiling Mount
  • Nominal Size: 2 ft Linear
  • Not Suitable For Sale In California: No
  • Product Weight: 8.65 lbs
  • Rated Life Hours: 50000
  • Selectable Color Temperature: 4000/5000
  • Selectable Lumens Output: 15300/13500/10200
  • Selectable Power: 105/90/65
  • T24 Ja8: No
  • Ul: No
  • Unique Features: Twist in Sensor Ready
  • Warranty Years: 5
  • Wireless Control: No

Professional Applications

  • Warehouse and Distribution Centers
  • Manufacturing Facilities
  • Retail and Commercial Spaces
  • Gymnasium and Recreation Centers
  • Maintenance and Service Areas
  • Industrial Work Environments
  • Storage and Utility Rooms

Why Choose Keystone Quality?

Keystone delivers professional-grade LED lighting solutions backed by a comprehensive 5-year warranty and DLC Premium certification. The robust white housing construction and 50,000-hour rated life ensure dependable performance in demanding commercial and industrial environments.

Manufacturer Resources

Product Specs

Accessory Device:
No
Cec T20:
No
Cri:
>80
Dimming:
0-10V
Dlc:
No
Dlc Premium:
Yes
Energy Star:
No
Housing Color:
White
Input Voltage:
120-277
Led Module Included:
No
Mounting Method:
Ceiling Mount
Not Suitable For Sale In California:
No
Product Weight:
8.65 lbs
Rated Life Hours:
50000
Selectable Color Temperature:
4000/5000
Selectable Lumens Output:
15300/13500/10200
Selectable Power:
105/90/65
T24 Ja8:
No
Ul:
No
Unique Features:
Twist in Sensor Ready
Warranty Years:
5
Wireless Control:
No
Product Nominal Size:
2 ft Linear

Keystone KT-HBLED105PS-2FB-8CSD-VDIM-P – Frequently Asked Questions

1) Will the Keystone KT-HBLED105PS high bay run on 277V in my warehouse?
Yes. The Keystone 105W linear high bay accepts 120-277V input, so it wires to either a 120V circuit or a 277V commercial feed without a different part number. That universal range is what lets one model cover a 277V warehouse bay and a 120V service area in the same building.
2) How do I set the wattage and color temperature on this Keystone selectable high bay?
The fixture is field-selectable on two axes: power at 105W, 90W or 65W, and color temperature at 4000K or 5000K. Lumen output tracks the wattage setting, 15,300 / 13,500 / 10,200 lumens. You pick the setting at install rather than ordering a different SKU, which is why one stocked part can cover several ceiling heights and lighting levels on the same job.
3) Can this 2ft linear high bay be dimmed from a building automation system?
Dimming is 0-10V, so it ties into a BAS or standard 0-10V control channel with a low-voltage control pair pulled alongside the line feed. It is not a line-voltage (TRIAC/ELV) dimming fixture and there is no wireless control built in, so plan on running the 0-10V wiring if you want dimming.
4) Can I add an occupancy sensor to the Keystone 105W linear high bay later?
Yes. It ships twist-in sensor ready, so a compatible twist-in sensor mounts to the fixture without cutting into the housing or adding an external sensor box. The sensor itself is a separate purchase, so add it to the order if you want the aisle-by-aisle occupancy control that pairs with the 0-10V dimming.
5) How is this mounted, and will 8.65 lbs work on my existing high bay hanging points?
The fixture is a ceiling mount, 2 ft linear form factor weighing 8.65 lbs. At that weight it is a light fixture by high bay standards, so existing structural hanging points sized for an HID high bay will carry it easily. Mounting hardware for your specific condition (chain, cable, surface) should be confirmed as part of the order since the configuration is a ceiling mount.
6) What is the exact model number to order for this Keystone selectable high bay?
The part number is KT-HBLED105PS-2FB-8CSD-VDIM-P, a Keystone 2 ft linear high bay with power select, color select and 0-10V dimming. One part number covers all three wattages and both color temperatures, so there is no separate SKU per setting.
7) Will this Keystone high bay render colors well enough for an assembly or inspection area?
CRI is greater than 80, which is the standard commercial and industrial grade for warehouse, manufacturing and retail work. Combined with the 5000K setting it gives a cool, high-contrast light suited to inspection and detail work; 4000K is the softer choice for retail and mixed-use space.
8) What is the rated life on the Keystone 105W LED high bay, and what housing color does it come in?
Rated life is 50,000 hours, and the housing is white. For an MRO buyer standardizing a facility, 50,000 hours at typical two-shift warehouse operation means the fixture outlasts several HID lamp and ballast cycles, and the white housing keeps the ceiling plane consistent across bays.
