Keystone 215W Linear LED High ...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$582.51

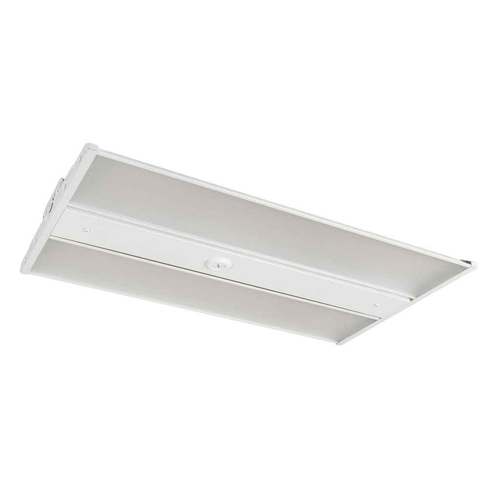

Keystone 215W Linear LED High Bay with Power and Color Select 2ft Ceiling Mount

Keystone 215W Linear LED High Bay with Power and Color Select 2ft Ceiling Mount

(No reviews yet) Write a Review

Model: KT-HBLED215PS-2FB-8CSD-VDIM-P
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$582.51
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Keystone 215W Linear LED High Bay with Power and Color Select

Professional high-performance lighting with selectable power and color temperature options

The Keystone 215W Linear LED High Bay delivers versatile commercial lighting performance with selectable power options (215/175/135W) and dual color temperature settings (4000K/5000K). This 2ft linear ceiling mount fixture features white housing construction, 0-10V dimming capability, and twist-in sensor ready design for professional installation flexibility. With selectable lumen output ranging from 20,900 to 30,600 lumens and >80 CRI rating, this high bay provides optimal illumination control for diverse commercial applications.

Professional Features & Benefits

  • Selectable Power Options (215/175/135W): Allows precise energy management and light output customization for specific application requirements without fixture replacement.
  • Dual Color Temperature (4000K/5000K): Provides flexibility to match lighting ambiance and visual comfort preferences in different commercial environments.
  • Variable Lumen Output (30,600/26,000/20,900): Delivers optimal illumination levels with corresponding power selection for maximum efficiency and performance.
  • 0-10V Dimming Compatibility: Enables smooth light level control and integration with building automation systems for enhanced energy savings.
  • DLC Premium Certification: Ensures superior energy efficiency performance and utility rebate eligibility for commercial lighting projects.
  • Twist-in Sensor Ready Design: Facilitates easy occupancy sensor integration for automated lighting control and additional energy conservation.
  • 50,000 Hour Rated Life: Provides long-term reliability and reduced maintenance costs with 5-year warranty protection.

Technical Specifications

  • Accessory Device: No
  • Cec T20: No
  • Cri: >80
  • Dimming: 0-10V
  • Dlc: No
  • Dlc Premium: Yes
  • Energy Star: No
  • Housing Color: White
  • Input Voltage: 120-277
  • Led Module Included: No
  • Mounting Method: Ceiling Mount
  • Nominal Size: 2 ft Linear
  • Not Suitable For Sale In California: No
  • Product Weight: 10.65 lbs
  • Rated Life Hours: 50000
  • Selectable Color Temperature: 4000/5000
  • Selectable Lumens Output: 30600/26000/20900
  • Selectable Power: 215/175/135
  • T24 Ja8: No
  • Ul: No
  • Unique Features: Twist in Sensor Ready
  • Warranty Years: 5
  • Wireless Control: No

Professional Applications

  • Warehouse and Distribution Centers
  • Manufacturing Facilities
  • Retail and Big Box Stores
  • Gymnasiums and Recreation Centers
  • Commercial Garages and Service Bays
  • Industrial Work Areas
  • Loading Docks and Storage Areas

Why Choose Keystone Quality?

Keystone delivers professional-grade LED lighting solutions with DLC Premium certification ensuring superior energy efficiency and utility rebate eligibility. The comprehensive 5-year warranty and 50,000-hour rated life provide long-term reliability and reduced total cost of ownership for commercial lighting installations.

Manufacturer Resources

Product Specs

Accessory Device:
No
Cec T20:
No
Cri:
>80
Dimming:
0-10V
Dlc:
No
Dlc Premium:
Yes
Energy Star:
No
Housing Color:
White
Input Voltage:
120-277
Led Module Included:
No
Mounting Method:
Ceiling Mount
Not Suitable For Sale In California:
No
Product Weight:
10.65 lbs
Rated Life Hours:
50000
Selectable Color Temperature:
4000/5000
Selectable Lumens Output:
30600/26000/20900
Selectable Power:
215/175/135
T24 Ja8:
No
Ul:
No
Unique Features:
Twist in Sensor Ready
Warranty Years:
5
Wireless Control:
No
Product Nominal Size:
2 ft Linear

Keystone KT-HBLED215PS-2FB-8CSD-VDIM-P – Frequently Asked Questions

1) How do I set the wattage and color temperature on the Keystone KT-HBLED215PS-2FB-8CSD-VDIM-P high bay?
The fixture ships with onboard selectable switches rather than separate SKUs. Power selects between 215W, 175W and 135W, and color temperature selects between 4000K and 5000K. Lumen output tracks the wattage you pick: 30,600 at the top setting, 26,000 in the middle, 20,900 at the lowest. That means one part number covers three light levels and two color appearances, so you can stock a single fixture and tune it on the lift.
2) Can this high bay be tied into a 0-10V dimming system or building automation panel?
Dimming is 0-10V, so it drops straight onto a standard low-voltage dimming loop or a BAS output. You will need to pull the two control conductors to the fixture in addition to line and neutral. There is no wireless control built in, so anything networked has to come from the control side, not the fixture.
3) Can I add an occupancy sensor to this Keystone linear high bay later?
It is built twist-in sensor ready, so a compatible twist-in sensor can be added without opening the fixture up or rewiring the driver. The sensor itself is a separate purchase, it does not come with the fixture. Pairing a twist-in sensor with the 0-10V dimming lets you do high/low occupancy control in aisles and storage areas.
4) Does this fixture qualify for utility rebates on a warehouse lighting project?
It is DLC Premium listed, which is the tier most utility programs require for their higher commercial rebate amounts. Rated life is 50,000 hours and CRI is greater than 80. Confirm the specific program's qualifying list entry by model number when you file, since rebate schedules vary by utility.
5) How does this 2ft linear high bay mount, and can I hang it from chain or aircraft cable?
The mounting method stated for this fixture is ceiling mount, so plan on fastening it up to the structure or deck. The body is a 2 ft linear form, white housing, and the fixture weighs 10.65 lbs, so a single-person lift and standard ceiling anchors are workable. Pendant, chain or cable hanging would require accessory hardware, which is not included.
6) Should I pick 4000K or 5000K for a warehouse versus a retail floor?
Both are on the same fixture, so the decision is made at install. 5000K reads as a crisper, cooler white and is the common choice for warehouses, loading docks and industrial work areas where visual acuity matters. 4000K is a more neutral white that sits better in retail and gym spaces next to other neutral-white fixtures. If you are mixing this into an existing building, match the setting to the fixtures already up so the ceiling does not read as two different installs.
7) Can I lower the wattage later if the space is over-lit, instead of swapping fixtures?
That is the point of the power select switch. Drop from 215W to 175W or 135W and output moves to 26,000 or 20,900 lumens from 30,600, with no fixture change and no driver swap. On top of that the 0-10V input lets you trim further from a dimmer or control system. For a property manager inheriting an over-lit bay, that is a field adjustment, not a re-spec.
8) Does this Keystone high bay have replaceable LED modules or lamps?
No separate LED module is included or user-serviceable, this is an integrated fixture. There is nothing to relamp over its life, which is rated at 50,000 hours. Maintenance planning should treat it as a whole-fixture replacement item rather than a lamp-and-ballast item.
