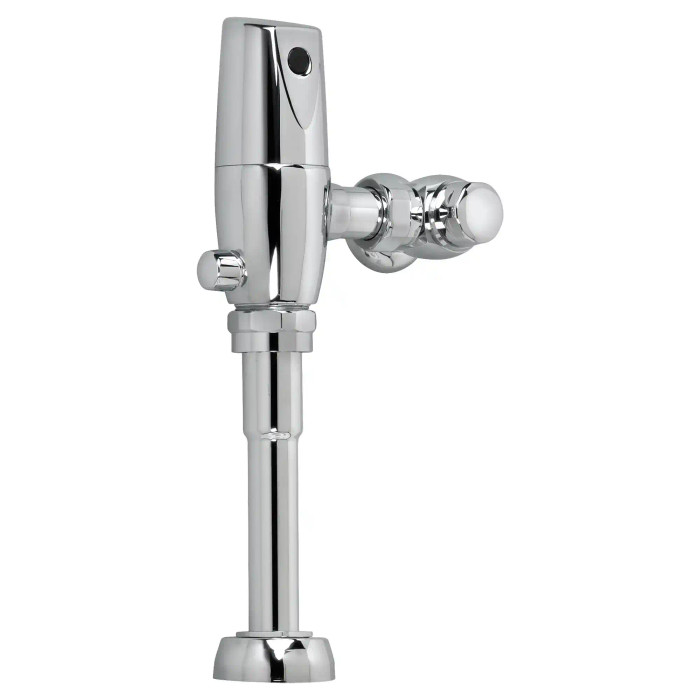

American Standard Ultima Selectronic Touchless Urinal Flush Valve, Piston-Type, Battery, 1.0 gpf/3.8 Lpf, 1-1/4-inch - AMS-6062601

American Standard Ultima Selectronic Touchless Urinal Flush Valve, Piston-Type, Battery, 1.0 gpf/3.8 Lpf, 1-1/4-inch - AMS-6062601

(No reviews yet) Write a Review

Model: 6062601.002
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$556.31
$506.31
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
Ultima Selectronic Touchless Urinal Flush Valve, Piston-Type, Battery, 1.0 gpf/3.8 Lpf, 1-1/4-inch
  • For urinals with 1-1/4-inch (32 mm) exposed top spud
  • 8-year CR-P2 lithium battery installed in valve
  • Touchless operation limits the spread of germs
  • Exclusive DynaClean self-cleaning wiper spring technology
  • Integral wiper spring cleans refill orifice with every flush to help prevent valve run-on
  • Fully mechanical manual override can operate without power
  • Fail-Safe operation: Valve automatically closes upon loss of power or water pressure
  • Pressure Compensation feature ensures accurate flush volume regardless of inlet water pressure
  • Proprietary brass alloy resists dezincification
  • 11-1/2" (292 mm) rough-in

Manufacturer Resources

Spec Sheet

Product Specs

Product Type:
Flush Valve
Product Group:
Commercial
Product Subgroup:
Parts and Accessories
Department:
Plumbing
Parts and Accessories Type:
Flush Valve
Application:
Toilet
Country of Origin:
Mexico
Product Color:
Chrome

American Standard 6062601.002 – Frequently Asked Questions

1) Does this touchless urinal flush valve need to be wired, or does it run on a battery?
Battery powered, no electrical rough-in and no transformer needed. An 8-year CR-P2 lithium battery comes installed in the valve. For retrofits in an existing restroom where there's no power near the fixture, that removes the electrician from the job entirely.
2) What happens to the Ultima Selectronic urinal valve if the battery dies or the water is shut off?
Fail-safe: the valve closes automatically on loss of power or loss of water pressure, so you don't get a stuck-open valve flooding the floor. There's also a fully mechanical manual override that flushes the urinal with no power at all, which keeps the fixture usable until maintenance swaps the battery.
3) Is this a 1.0 gpf urinal valve, and will the flush volume hold up on a building with variable water pressure?
It flushes 1.0 gallon per flush (3.8 Lpf). Pressure compensation is built in, so the delivered volume stays consistent regardless of inlet pressure, which matters on upper floors or on systems where pressure swings through the day. If your urinal fixture is rated for 0.5 gpf or 0.125 gpf, match the valve to the fixture rating instead.
4) Our urinal valves keep running on after the flush. Does this one do anything about that?
That run-on is usually a fouled refill orifice. The Ultima uses DynaClean self-cleaning wiper spring technology, an integral wiper spring that scrubs the refill orifice on every flush to keep it clear. It's the specific failure mode this design targets, which is why it shows up in high-traffic facility standardization.
5) Is this a piston or diaphragm flush valve, and what is the body made of?
Piston-type operation, not diaphragm. The body uses a proprietary brass alloy that resists dezincification, which is the failure you see in aggressive or high-chloride water where ordinary brass loses zinc and turns porous. If your maintenance program is standardized on diaphragm kits, note that piston repair parts are a different stock item.
6) Can I use this valve on a water closet instead of a urinal?
No. This is a urinal flush valve at 1.0 gpf with a 1-1/4 inch top spud connection. Water closets take a larger spud and a higher flush volume, so you need a closet-specific Selectronic valve for a toilet.
7) What part number and finish do I order for the American Standard Ultima battery urinal flush valve?
Order model 6062601.002. The .002 suffix is the chrome finish, which is the finish this valve is offered in.
