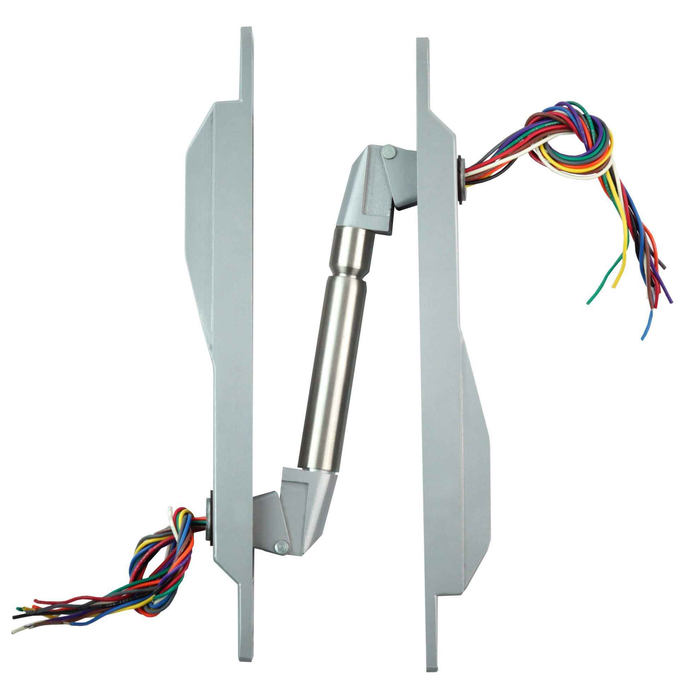

ABH PT200 Series Concealed Power Transfer with 18 AWG Wiring

(No reviews yet) Write a Review

Model: ABH-PT200-US28
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$378.00
$371.45
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

ABH PT200 Series Concealed Power Transfer with 18 AWG Wiring

Professional Electrical Power Transfer Solution

The ABH PT200 Series Power Transfer provides secure and discreet electrical power and data transfer from frame to door through a completely concealed mortised installation. Featuring all-metal construction with no plastic parts, this UL/ULC listed power transfer handles up to 24 VDC at 5A or 120 VAC NEC Class ratings. The unit mortises into door and frame edges and remains completely hidden when the door is closed, making it ideal for high-abuse and heavy-traffic commercial applications.

Professional Features & Benefits

  • Electrical Specifications: Supports 24 VDC at 5A or 120 VAC NEC Class for versatile power and data transfer applications.
  • Concealed Installation: Mortises into door and frame edges with complete concealment when door is closed for professional appearance.
  • Heavy-Duty Construction: All-metal construction including backboxes with no plastic parts for exceptional durability in high-abuse situations.
  • Fire Door Compatibility: UL/ULC listed for use on fire doors ensuring code compliance in critical applications.
  • Universal Door Compatibility: Includes fasteners for wood, steel, or aluminum doors and frames for versatile installation options.
  • 18 AWG Wiring: Standard (2) 18 AWG wire configuration provides reliable electrical connectivity for access control systems.
  • Competitive Compatibility: Matches competitor’s door and frame preparation requirements for easy retrofits and replacements.
  • Patent Pending Technology: Advanced design features provide superior performance and reliability in demanding commercial environments.

Technical Specifications

  • BAA Qualified: Yes
  • Commercial/Residential: Commercial
  • Department: Door Hardware
  • Electronic: Yes
  • Keyed: N/A
  • Keyed Function: N/A
  • PDF:EZ Connect Wire ALLEGION Color & Position: https://zensupply.com/content/pdf/abh/0002642_ez_wire_color_allegion_connectors_10_12_wire.pdf
  • PDF:PT200 Power Transfer Template: https://zensupply.com/content/pdf/abh/0000580_pt200_pt1000_07.pdf
  • PDF:PT200SC, PT200SCEZ Power Transfer - Template: https://zensupply.com/content/pdf/abh/0002643_pt200sc_pt1000scpt1200ezsc_template_1_2_02.pdf
  • PDF:Power Transfer Cross Reference Chart: https://zensupply.com/content/pdf/abh/0000405_cross_reference.pdf
  • PDF:Power Transfer Cut Sheet: https://zensupply.com/content/pdf/abh/0000179_electrical_power_transfer_products_compressed_1.pdf
  • Product Category: Electronic Access Controls
  • Product Group: Electronic Access Controls
  • Product Model: PT200
  • Product Subgroup: Controllers, Power Supplies and Transformers
  • Product Type: Power Transfers
  • Series: PT200 Series
  • Subcategory: Power Transfers

Professional Applications

  • Commercial Building Security Systems
  • Retail Loss Prevention
  • Healthcare Facility Access Control
  • Educational Institution Safety Systems
  • Industrial Facility Monitoring
  • Emergency Exit Compliance
  • Government and Municipal Buildings

Why Choose ABH Quality?

ABH PT200 Series power transfers deliver professional-grade reliability with all-metal construction including backboxes and no plastic parts for demanding high-abuse applications. UL/ULC listed for fire door applications with patent pending technology ensuring superior performance. Engineered for demanding commercial applications where dependable concealed power transfer is essential.

Product Specs

Product Group:
Electronic Access Controls
Product Subgroup:
Controllers, Power Supplies and Transformers
Subcategory:
Power Transfers
Commercial/Residential:
Commercial
Product Type:
Power Transfers
Electronic:
Yes
Keyed:
N/A
Keyed Function:
N/A
Series:
PT200 Series
BAA Qualified:
Yes
Product Model:
PT200
Product Category:
Electronic Access Controls
Department:
Door Hardware

ABH ABH-PT200-US28 – Frequently Asked Questions

1) How does the ABH PT200 power transfer get power from the frame into the door without exposed wiring?
The PT200 mortises into the door edge and the matching frame edge, so the wire crosses the gap between the two and stays completely hidden when the door is closed. Nothing shows on the face of the door, and there is no exposed loop or armored cord riding across the hinge side. That is the whole reason to pick a concealed mortised transfer over a surface door cord on a high-traffic or high-abuse opening: there is nothing sticking out for someone to grab, cut, or catch a cart on.
2) Can I use a concealed power transfer on a fire rated door?
The PT200 is UL and ULC listed for use on fire doors, so it can be mortised into a rated door and frame assembly. That listing is what an inspector will look for on a rated opening, and it is the difference between this and a surface cord that may not be acceptable on a labeled door.
3) What voltage and current will the ABH PT200 carry for an electrified lock or exit device?
Rated for 24 VDC at 5A, or 120 VAC NEC Class. Two 18 AWG conductors come standard, which is what most electrified latch retraction, electric strikes, and electrified trim runs are wired with. If your device draws more than 5A inrush at 24 VDC, size the run to that number before you commit, because the transfer is the choke point in the circuit, not the lock.
4) What is the difference between the PT200, the PT200EZ, and the PT200SC?
Three wiring builds of the same concealed transfer. PT200 is the base unit with two 18 AWG wires you land yourself. PT200EZ carries the same two 18 AWG wires already terminated with Molex Micro-Fit 3.0 EZ connectors, which saves splicing in the field and gives you a plug-and-play joint at each end. PT200SC is the version for swing clear hinge applications, where the door swings fully out of the opening and the door and frame prep geometry is different. Pick SC only if the opening actually uses swing clear hinges; otherwise the standard prep applies.
5) I have swing clear hinges on this opening. Will a standard concealed power transfer work?
No, order the PT200SC instead. Swing clear hinges throw the door leaf clear of the opening, which changes where the door edge sits relative to the frame edge, and the standard PT200 prep will not line up. ABH publishes a separate template for the PT200SC and PT200SCEZ specifically because the door and frame prep is different from the standard unit.
6) Can I drop an ABH PT200 into a door and frame that was already prepped for another brand's concealed power transfer?
Yes. The PT200 matches competitor door and frame preparation, so on a retrofit where the existing transfer has failed you can pull the old unit and set the ABH in the same mortise without re-prepping the door. ABH also publishes a power transfer cross reference chart to match the model you are replacing to the right PT200 variant. That is the practical case for this part on an existing building: no new mortise, no door swap.
7) Will the ABH PT200 mount in an aluminum storefront door, or is it only for hollow metal and wood?
All three. The PT200 ships with fasteners for wood, steel, or aluminum doors and frames, so a glass front installer setting it in an aluminum stile and a contractor setting it in hollow metal are both covered out of the same box. The unit itself mortises into the door and frame edge in every case.
8) Should I use a concealed power transfer or a surface mounted door loop cord?
Concealed is the choice when the opening takes abuse or the appearance matters. The PT200 mortises into the edges and disappears when the door shuts, and it is all metal including the backboxes with no plastic parts. A surface door cord such as the Locknetics DC Series 20 inch medium duty cord with aluminum end caps installs faster and needs no mortise, which makes it the practical answer on a retrofit where you cannot cut the door or frame, or on a low traffic interior opening. In a school corridor, a hospital, or anywhere carts and crowds hit the door, the exposed cord is the part that gets torn off.
9) What can carry access control wiring from frame to door when the door and frame cannot be mortised for a concealed power transfer?
The ABH PT200 power transfer mortises into the door and frame edges and is completely hidden when the door is closed, so it requires both edges to be prepped. On an opening where that prep is not possible, a surface-mounted door cord such as the Locknetics DC Series 20 inch medium duty door cord with aluminum end caps routes the wiring across the hinge gap on the face of the door and frame instead of inside it. The trade is appearance and exposure: the PT200 stays concealed and is UL/ULC listed for use on fire doors with all-metal construction including backboxes, while the door cord runs in the open and is reached by anyone at the door.
10) Is the ABH PT200 power transfer Buy American compliant for a government job?
BAA qualified, yes. On a federal, municipal, or other Buy American Act job where the hardware submittal has to clear a domestic preference review, the PT200 is a commercial grade product that carries that qualification.
11) Is the PT200EZ with Molex connectors compatible with Allegion electrified hardware wiring?
The EZ version terminates its two 18 AWG conductors in Molex Micro-Fit 3.0 connectors, and ABH publishes an EZ Connect wire color and position sheet for Allegion connectors covering 10 and 12 wire configurations. Match your device leads to that color and position chart before you plug in, since the connector will physically mate regardless of how the pins are assigned. The plain PT200 with bare 18 AWG leads is the safer pick if your electrified device uses a connector system you cannot confirm.
12) How do I prep the door and frame for an ABH PT200 before the doors arrive on site?
ABH publishes an installation template for the PT200 that gives the mortise layout for both the door edge and the frame edge, and a separate template for the PT200SC and PT200SCEZ swing clear versions. Get the correct template to the door shop with the submittal so the cutouts come factory prepped rather than being routed on site, which is where concealed transfers go wrong on hollow metal.
13) Can I run two 18 AWG wires through the PT200 for both a lock and a door position switch?
The PT200 carries two 18 AWG conductors total, which is one circuit. That is enough for a single electrified device such as an electric strike, an electrified lock, or latch retraction on an exit device. Monitoring a door position switch, request to exit, or latch bolt monitor on the same opening needs more conductors than this unit provides, so plan a higher wire count transfer for openings where the access control system also reads status back from the door.
14) Is a medium duty door cord the same thing as a concealed power transfer?
No. Both move electrical conductors from the frame to a door leaf, but they are different devices. The ABH PT200 is a concealed transfer that mortises into the door and frame edges, comes with fasteners for wood, steel, or aluminum doors and frames, and handles 24 VDC at 5A or 120 VAC NEC Class. The Locknetics DC Series 20 inch door cord is a medium duty surface cord with aluminum end caps and is specified by its length rather than by a mortise prep. If a submittal calls for a concealed power transfer, a door cord does not satisfy it.
15) Does the ABH PT200 come in a finish that will match my aluminum storefront or a dark bronze frame?
Six finishes across the whole PT200 range: painted brass, painted bronze, painted dark bronze, painted black, painted white, and satin aluminum. Satin aluminum is the one that matches clear anodized storefront, and painted dark bronze matches a dark anodized frame. Every finish is offered on the standard PT200, the PT200EZ, and the PT200SC, so choosing swing clear or the connector version does not limit your color. Since the unit is hidden with the door closed, the finish only matters for the edge plate against the frame and door.
