ACSI ACSI K-124 Request To Exit Switch Kit for Precision 2000 Series Series ACSI-K-124

ACSI K-124 Request To Exit Switch Kit for Precision 2000 Series Series

(No reviews yet) Write a Review

Model: K-124
From the 1500 Series Collection

In Stock (leaves warehouse same day if ordered before 3pm ET)

$88.00
$84.53
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

ACSI K-124 REQUEST TO EXIT SWITCH KIT FOR PRECISION 2000 SERIES SERIES OVERVIEW

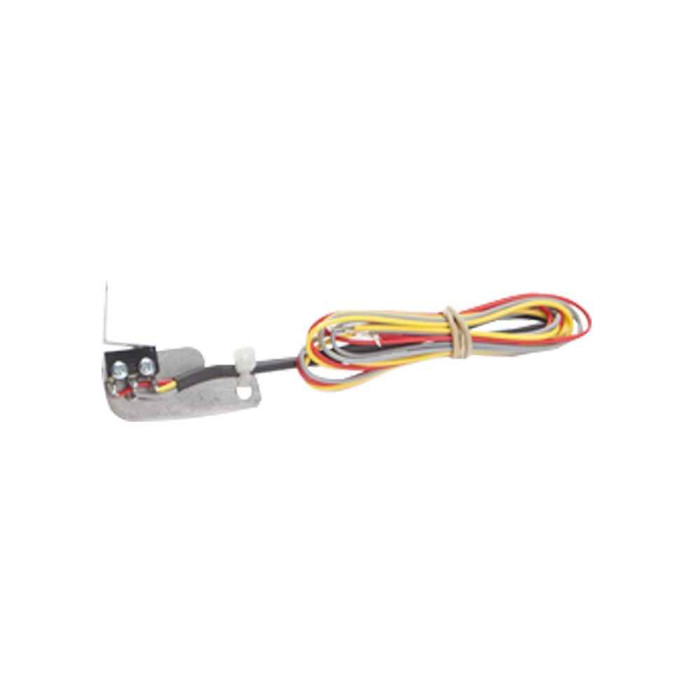

K-124 Request To Exit Switch Kit for Precision 2000 Series Series. ACSI Series K Switch Kits are field installed in exit devices. Series K Switch Kits include a SPDT (Single Pole Double Throw) switch assembly with long wire leads and easy-to-follow installation instructions. K Switch Kits may be used to:

  • Provide instant release of magnetic locks for free egress.
  • Activate a door alarm.
  • Signal a control console when the push bar of an exit device is depressed.
  • Shunt a door alarm to allow free egress.

Buy the ACSI K-124 Switch Kit for Precision 2000 Series Series for easy installation and dependable door hardware solution.

ACSI K-124 REQUEST TO EXIT SWITCH KIT FOR PRECISION 2000 SERIES SERIES PRODUCT FEATURES

  • Function: Part/Component
  • Product Type: Electronic Part/Accessory
  • Contact Ratings: 3A @ 125VAC; 2A @ 30VDC
  • Function Family: Part/Component
  • Features: SPDT Monitor Switch; Authorized Egress
  • For Use With: Precision 2000; 5000 Electric Exit Devices
  • Manufacturer Parent: ACSI
  • Sub-Series: K-124

ACSI ELECTRIC EXIT DEVICE SWITCH KITS COLLECTION

ACSI ACSI K-100 Request To Exit Switch Kit for Von Duprin 33A, 35A, 98, 99 Series
ACSI K-200 Request To Exit Switch Kit for Von Duprin 33A, 35A, 98, 99 DPDT Series
ACSI K-101 Request To Exit Switch Kit for Von Duprin 55 Series
ACSI K-102 Request To Exit Switch Kit for Von Duprin 88 Series
ACSI K-103 Request To Exit Switch Kit for Sargent 80 Series Series
ACSI K-203 Request To Exit Switch Kit for Sargent 80 Series DPDT Series
ACSI K-104 Request To Exit Switch Kit for Sargent 9600, 9700, 9800, 9900 Series
ACSI K-105 Request To Exit Switch Kit for Sargent 9300, 9400, 9500 Series
ACSI K-106 Request To Exit Switch Kit for Adams Rite 8000, 3000 Series
ACSI K-107 Request To Exit Switch Kit for Corbin Russwin 8000 and Yale 2100 Series
ACSI K-108 Request To Exit Switch Kit for Jackson 1085, 1095 Series
ACSI K-109 Request To Exit Switch Kit for Yale 7000 and Corbin Russwin ED4000, ED5000 Series
ACSI K-110 Request To Exit Switch Kit for Monarch 18, 19 Series
ACSI K-111 Request To Exit Switch Kit for Doromatic 990, 1090 Series
ACSI K-112 Request To Exit Switch Kit for Doromatic 1490, 1590 Series
ACSI K-124 Request To Exit Switch Kit for Precision 2000 Series Series
ACSI K-125 Request To Exit Switch Kit for Dorma 9000 Series
ACSI K-126 Request To Exit Switch Kit for Hager 4500, 4600 and PDQ 6200 and Stanley Commercial QED100, 200, 300 Series
ACSI K-226 Request To Exit Switch Kit for Hager 4500, 4600 and PDQ 6200 and Stanley Commercial QED100, 200, 300 DPDT Series
ACSI K-128 Request To Exit Switch Kit for Design 1000 Series
ACSI K-129 Request To Exit Switch Kit for Falcon 24, 25 Series
ACSI K-130 Request To Exit Switch Kit for Jackson 20 Series
ACSI K-131 Request To Exit Switch Kit for Falcon 1690, 1790 Series
ACSI K-123 Latch Bolt Monitor Switch Kit for Von Duprin 33A, 35A, 98, 99 Series
ACSI K-127 Latch Bolt Monitor Switch for ACSI 1500K-VD ELR Kit on Von Duprin 33A, 35A. 98, 99 Series

Product Specs

Subcategory:
Electric Exit Device Switch Kits
Series:
1500 Series
Collection:
1500 Series
Product Type:
Exit Device Field Install Kits
Compatibility:
Precision 2000 Series Series
Commercial/Residential:
Commercial
Electronic:
Yes
Lock Function:
Part/Component
Product Group:
Electronic Access Controls
Product Subgroup:
Sensors, Switches, Relays and Timers
Parts and Accessories Type:
Installation Accessories
Product Attribute:
Parts and Accessories
Product Function:
Part/Component
Fire Rating:
No
Product Category:
Electronic Access Control
Department:
Door Hardware

ACSI K-124 – Frequently Asked Questions

1) Will the ACSI K-124 switch kit fit a Precision 2000 Series exit device?
That is exactly what the K-124 is cut for. It's a request-to-exit switch kit built for Precision 2000 Series devices, and the description also lists Precision 5000 electric exit devices as compatible. It installs inside the device in the field, so you're not replacing the exit device to get REX signaling on it. If your opening has a different brand of device on it, the K-124 is the wrong kit, ACSI builds a separate kit per device family.
2) I have a Von Duprin 99 (or Sargent 80, Falcon 25) exit device, which ACSI switch kit do I order instead of the K-124?
Match the kit to the device family. ACSI lists the K-100 for Von Duprin 33A, 35A, 98 and 99, the K-101 for Von Duprin 55, the K-102 for Von Duprin 88, the K-103 for Sargent 80, the K-104 for Sargent 9600/9700/9800/9900, the K-105 for Sargent 9300/9400/9500, the K-129 for Falcon 24 and 25, the K-131 for Falcon 1690 and 1790, the K-106 for Adams Rite 8000 and 3000, the K-109 for Yale 7000 and Corbin Russwin ED4000/ED5000, and the K-125 for Dorma 9000. The K-124 only covers Precision.
3) Can a K-124 switch release a maglock for free egress when someone pushes the exit device bar?
Yes, that's one of its four listed uses. The switch signals the instant the push bar is depressed, which gives you instant release of magnetic locks for free egress. The same output can activate a door alarm, shunt a door alarm so authorized egress doesn't trip it, or signal a control console. How you wire it decides which of those it does.
4) Is the K-124 a latch bolt monitor, or does it only sense the push bar?
It senses the push bar. The K-124 signals when the bar is depressed, which tells your system someone is requesting egress, not whether the latch is actually thrown and secure. Those are different jobs. If you need to know the bolt is projected and the door is secure, that's a latch bolt monitor, and ACSI builds those separately, the K-123 for Von Duprin 33A, 35A, 98 and 99 and the K-127 for the 1500K-VD ELR kit on those same devices. Some integrators install both on one leaf: one to shunt on egress, one to prove the door relatched.
5) I manage a building with alarmed exit doors that go off every time staff leave, can a REX switch kit fix that?
That's one of the exact uses for a Series K switch kit. Wired as an alarm shunt, the switch bypasses the door alarm for authorized egress, so a legitimate push of the bar doesn't sound the horn while a door forced open still does. On Precision 2000 Series devices the K-124 is the kit that fits, and it goes in the existing device in the field rather than requiring new exit hardware on every door.
6) What are the contact ratings on the ACSI K-124 request-to-exit switch?
The switch is rated 3A at 125VAC and 2A at 30VDC. On a low-voltage access control system that's plenty to drive a relay coil, a maglock control input, or an alarm shunt input directly. If you're switching a load heavier than that, such as a maglock drawing more than 2A on its own circuit, run the switch into an interposing relay rather than putting the load through the contacts.
7) Is the K-124 a single-pole or double-pole switch, and when do I need the double-pole version?
The K-124 carries an SPDT (single pole double throw) switch assembly, so you get one common with a normally open and a normally closed contact off a single push bar actuation. That covers most REX jobs: one circuit either shunting an alarm or releasing a lock. If you need two electrically independent circuits from the same bar press, say releasing a maglock and separately reporting to a monitoring panel on isolated contacts, that's what ACSI's DPDT kits are for, the K-200, K-203 and K-226 in the same family.
8) Does the ACSI K-124 come with wire and instructions, or do I need to buy anything else?
The kit ships with the switch assembly, long wire leads and installation instructions. The long leads are the point, they let you run out of the device and across to the hinge edge without splicing inside the rail. What isn't in the kit is anything that gets power across the door: a door loop or electric hinge, plus whatever relay or panel input you're landing the leads on. Plan that side of the job separately.
9) Does adding a K-124 REX switch to a Precision 2000 device affect the fire label on the door?
The K-124 kit itself carries no fire rating. That doesn't automatically disqualify the opening, but on a labeled fire door the exit device's own listing governs, and any field modification to a fire-rated device has to stay within what the device manufacturer permits. Also worth knowing on fire openings: a REX switch that releases a maglock is a life-safety circuit, so how it's wired matters as much as the switch itself. On a non-rated opening this is a straightforward field install.
10) Is the ACSI K-124 rated for commercial use, and is it an electronic component?
Commercial grade, and yes, it's an electronic access control component rather than mechanical hardware. That matters for who installs it: this is low-voltage work landing on an access control panel, maglock or alarm circuit, so it typically falls to the integrator or electrician rather than the door installer, even though the switch itself mounts inside the exit device.
