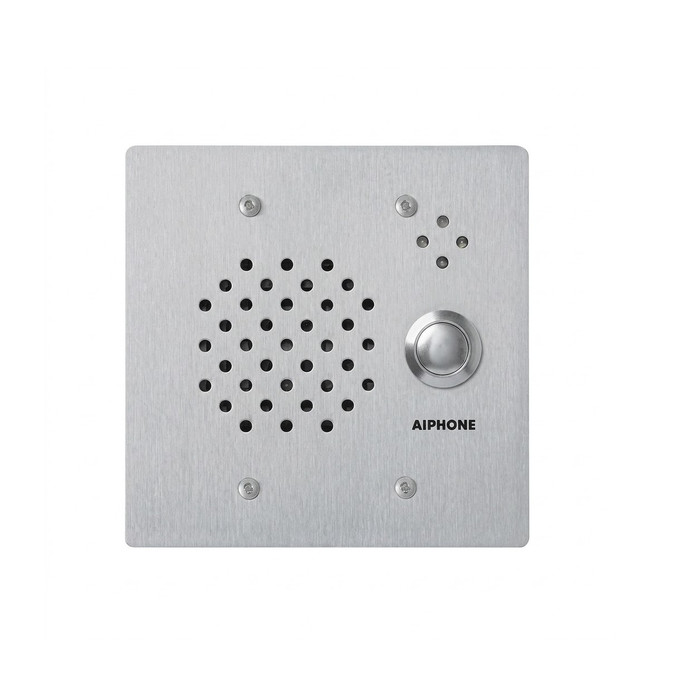

The IE-SS/A and IE-SSR are vandal proof and weather resistant sub stations designed for use with the systems listed above. They're constructed with 12 gauge stainless steel, and the IE-SSR features a red mushroom call button. The units either flush mount into a 2-gang box, or surface mount with the SBX-2G. Each unit includes tamper proof screws and a tool for installation.
FEATURES
- Moisture and puncture resistant speaker
- 3-layer steel baffle protects speaker from tampering
- Pigtail wires for connection to master station
- Includes tamper proof mounting screws
- Stainless steel, mechanical call button
SPECIFICATIONS
- Power Source: Supplied by master station
- Speaker: Baffle protected, Water proof and puncture resistant, 2.4 oz. magnet
- Microphone: Baffle protected
- Call Button: SPST call button. Call tone is activated at master when call button is pressed
- IE-SS/A: Limited stop button
- IE-SSR: Limited stop, red mushroom button
- Communication: Hands free at sub. Master uses handset.
- Faceplate: 12 gauge stainless steel
- Mounting:
- Flush mount into a 2-gang box. Surface mount into SBX-2G, sold separately.
- Tamper proof screws included (6x32 for use with flush gang box) with T-10 TORX bit.
- Use hardware included with SBX-2G when installing sub into that unit.
- Terminations: Color-coded prewired pigtails
- Operating Temperature: Flush Switch rating: 14°F to 158°F; Mushroom Switch rating: -22°F to 185°F
- Speaker rating: -67°F to 187°F
- Wiring: 2 conductors. Use Aiphone #822202
- Wiring Distance: See system that unit is being used with for distance specifications
- Dimensions (H x W x D): IE-SS/A / IE-SSR alone: 4-11/16" x 4-11/16" x 2"
With SBX-2G: 4-3/4" x 4-7/8" x 3-5/8" (Top) 2-3/8" (Bottom)
