Aiphone IX-SS-2G - SIP Compati...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$1,082.00
$1,014.90

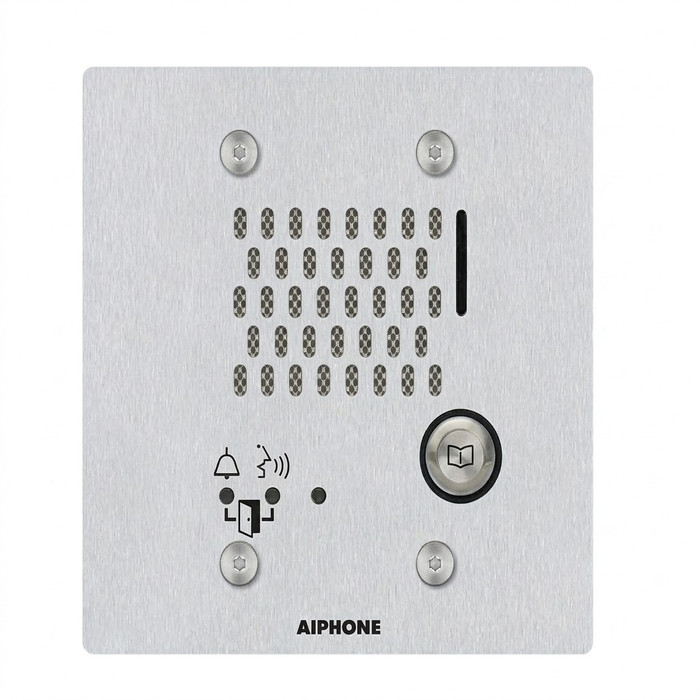

Aiphone Aiphone IX-SS-2G - SIP Compatible Flush Mounted IP Door Station 2-Gang Vandal Resistant Stainless Steel Cover IX-SS-2G

Aiphone IX-SS-2G - SIP Compatible Flush Mounted IP Door Station 2-Gang Vandal Resistant Stainless Steel Cover

(No reviews yet) Write a Review

Model: IX-SS-2G-IX

In Stock (leaves warehouse same day if ordered before 3pm ET)

$1,082.00
$1,014.90
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

The IX-SS-2G is a 2-gang, flush mount IP addressable door station. It is weather resistant (IP65) and connects to a network using Cat-5e/6 cable. It is SIP compliant and can be used with or without other IX Series stations. The station can be programmed to call up to 20 different stations and there are 3 different call levels to choose from. Sound files can be uploaded allowing for custom messages to be played during certain functions (door release, call placed, communication start, error message). The station has audible and visual indications for calling, communication, and door release.

FEATURES

  • SIP 2.0 Compliant
  • 802.3af PoE
  • Illuminated call button indicator
  • IP65 rated, weather resistant (IP65)
  • 1 contact output
  • 1 trigger input
SPECS


Power Source: PoE (IEEE 802.3af class 0)
Power Draw: 3.36 Watts
Audio Codec: G.711 (μ-law, A law), G.722
Impact Protection: IK08
Protocols: IPv4, IPv6, TCP, UDP, SIP, HTTP, HTTPS, RTSP, RTP, RTCP, IGMP, MLD, SMTP, FTP, DHCP, NTP, DNS
Port Security: IEEE 802.1X
Operating Temp: -40° - 140°F (-40° - 60°C)
Ingress Protection: IP65
Dimensions: 4-¾" H x 4-¾" W
Mounting: Flush mounted with locally available 2-gang box (2-1/2" deep or greater), or surface mount with the SBX-2G/A Stainless Steel surface mount box

Manufacturer Resources

IX SYSTEM Brochure

Product Specs

Product Type:
IP Door Station
Series:
IX Series
Product Group:
Electronic Access Controls
Product Subgroup:
Intercoms
Subcategory:
IP Intercoms
Commercial/Residential:
Commercial
Electronic:
Yes
Product Category:
Electronic Access Controls
Department:
Door Hardware

Aiphone IX-SS-2G-IX – Frequently Asked Questions

1) Can the IX-SS-2G be mounted outdoors at an exterior entrance?
Yes. It's IP65 rated against water and dust and operates from -40 to 140 degrees F (-40 to 60 C), so an unprotected exterior door or gate callbox location is within spec. The stainless cover carries an IK08 impact rating, which is the reason it gets specified at high-traffic and public-facing entries rather than a plastic-front station.
2) Does the Aiphone IX-SS-2G work with a third-party SIP phone system, or do I need other Aiphone IX stations?
It's SIP 2.0 compliant and can be used with or without other IX Series stations, so it will register to a third-party SIP server and call SIP endpoints directly. Audio codecs are G.711 (mu-law and A-law) and G.722. It also runs as a straight IX system station if you're building out an all-Aiphone intercom.
3) What wiring and power does this IP door station need at the door?
One Cat-5e or Cat-6 run back to the network is all it takes. Power comes over that same cable via PoE, IEEE 802.3af class 0, drawing 3.36 watts, so no separate power supply or transformer at the door. Confirm the switch port or midspan injector is 802.3af.
4) Can the IX-SS-2G release an electric strike or maglock directly?
It has one contact output that can drive a door release, plus one trigger input you can use for a door position switch, request-to-exit, or an external button. The station gives audible and visual indication on door release. The strike or maglock still needs its own power supply sized to the lock; the contact output is a dry switching point, not a power source.
5) How many places can a call from this door station ring?
The station can be programmed to call up to 20 different stations, with 3 call levels to choose from (normal, priority, urgent handling). That covers a lobby desk plus after-hours rollover to a maintenance office or a management phone without adding hardware at the door.
6) Will the IX-SS-2G pass our network security requirements?
Port security is IEEE 802.1X, so it authenticates onto a controlled switch port rather than needing an open VLAN exception. It supports IPv4 and IPv6 and runs HTTPS alongside HTTP, plus RTSP/RTP/RTCP for streaming, SIP, DHCP, NTP, DNS, SMTP, FTP, IGMP and MLD. That combination is what most IT departments in healthcare, education and government ask for before they'll let a door device onto the production network.
7) Is the IX-SS-2G an audio-only station or does it have a camera?
It's an audio door station. The face carries an illuminated call button indicator and gives audible and visual feedback for calling, communication and door release, but video is not part of this model. If the opening needs the visitor on camera, specify a video door station from the IX Series instead.
8) Can I play a custom message at the door, like a recorded greeting or an ADA-style confirmation?
Sound files can be uploaded to the station and assigned to specific events: door release, call placed, communication start, and error message. Property managers use this for building-specific greetings; institutions use it to confirm door release audibly for visitors who can't see the indicator.
9) Is this door station suitable for residential use or is it a commercial product?
It's built and specified for commercial work: IK08 vandal-resistant stainless face, IP65 weather rating, PoE network wiring and 802.1X port authentication. That's a multi-family, institutional and commercial-entry device, not a house intercom. A single-family install would be paying for the network infrastructure and the vandal-rated housing without needing either.
