Aiphone Aiphone IX-DVF-PR Flush Mount IP Video Door Station with Proximity Card Reader IX-DVF-PR

Aiphone IX-DVF-PR Flush Mount IP Video Door Station with Proximity Card Reader

(No reviews yet) Write a Review

Model: IX-DVF-PR

In Stock (leaves warehouse same day if ordered before 3pm ET)

$2,080.00
$1,580.99
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

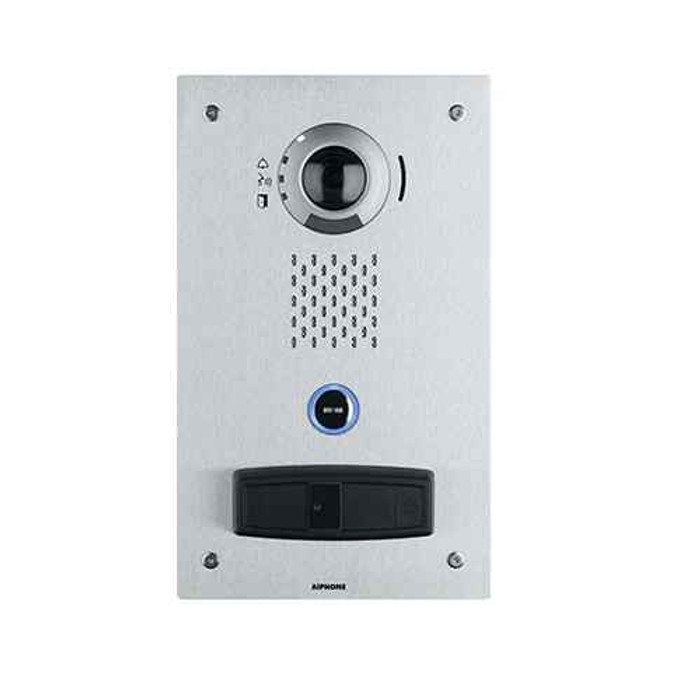

The IX-DVF-PR is a vandal-resistant door station for the IX Series with a built-in AC-PROX-1G proximity card reader. The door station can either be surface or flush mounted.

FEATURES

  • 1.23 megapixel fixed video camera
  • White LED for low light illumination
  • Camera vertical adjustment +15°, 0°, or -8° (manual)
  • Built-in proximity card reader
  • Flush mount with included back box
  • Weather and vandal resistant stainless steel panel
  • Slot for microSD™ card
  • Two contact outputs, six trigger inputs
  • 802.3af PoE
  • RJ45 in/out with PoE pass-through (802.3at Type 2 PoE+)
SPECS


Door Station

  • Power Source: PoE (IEEE 802.3af class 0) or 24V DC (PS2420UL)
  • Power Draw: 5.28W
  • Camera: 1/3" CMOS 1.23 megapixel
  • Min. Illumination: 5 lux
  • Audio Codec: G.711 (μ-law, A law), G.722
  • Protocols: IPv4, IPv6, TCP, UDP, SIP, HTTP, HTTPS, RTSP, RTP, RTCP, IGMP, MLD, SMTP, SFTP, DHCP, NTP, DNS
  • Port Security: IEEE 802.1X
  • Operation Temp: -31°~140°F (-35°~60°C)
  • Protection: IK65
  • Impact Protection: IK08
  • Dimensions: 11-11/16" H x 7" W x 2-1/16" D



Card Reader Specifications

  • Power Input: 5~14V DC
  • Power Draw:: 45mA
  • Frequency:: 125kHz
  • Certifications: CSA, FCC, CE, C-Tick

Manufacturer Resources

IX SYSTEM Brochure

Product Specs

Product Type:
IP Video Door Station
Series:
IX Series
Product Group:
Electronic Access Controls
Product Subgroup:
Intercoms
Subcategory:
IP Intercoms
Commercial/Residential:
Commercial
Electronic:
Yes
Product Category:
Electronic Access Controls
Department:
Door Hardware

Aiphone IX-DVF-PR – Frequently Asked Questions

1) How do I power an Aiphone IX-DVF-PR door station?
Two options. PoE over the network cable (IEEE 802.3af class 0), or 24V DC from an Aiphone PS2420UL supply. Power draw at the station is 5.28W, so a standard 802.3af port carries it with room to spare. The RJ45 in/out also passes PoE through, but pass-through needs 802.3at Type 2 PoE+ upstream rather than plain 802.3af.
2) What credentials does the built-in card reader on the IX-DVF-PR read?
It has an integrated AC-PROX-1G proximity reader running at 125kHz, so it reads 125kHz prox credentials, not 13.56MHz smart cards. If your building is already on 125kHz prox badges, this station adds a reader at the entry without a separate reader body on the wall. The reader section draws 45mA at 5 to 14V DC and carries CSA, FCC, CE and C-Tick marks.
3) Will the IX-DVF-PR survive an unsheltered exterior entrance in a cold climate?
It is built for exposed entries: stainless steel panel, weather and vandal resistant, IK65 protection with IK08 impact rating. Operating range runs from -31 to 140 degrees F (-35 to 60 C), which covers northern winters and full sun on a south-facing door.
4) Can I wire door release and request-to-exit to the IX-DVF-PR directly, or do I need a separate controller?
The station has two contact outputs and six trigger inputs on board. That gives you relay outputs for a strike or maglock circuit and inputs for things like REX, door position, or call buttons, wired straight to the station instead of through a separate access panel.
5) How well does the IX-DVF-PR camera see a face at night?
The camera is a 1/3 inch CMOS sensor at 1.23 megapixel, fixed lens, with a minimum illumination of 5 lux and a white LED for low-light fill. It is not an IR camera, so identification in the dark depends on that LED rather than infrared. The camera angle can be set manually to +15, 0, or -8 degrees to suit the mounting height at your door.
6) Will the IX-DVF-PR integrate with our existing VoIP phone system and network security policy?
It speaks SIP alongside the standard IP stack (IPv4, IPv6, TCP, UDP, HTTP, HTTPS, RTSP, RTP, RTCP, IGMP, MLD, SMTP, SFTP, DHCP, NTP, DNS), so it can register to a SIP server rather than only Aiphone master stations. For network access control it supports IEEE 802.1X port security. Audio uses G.711 (mu-law and A-law) or G.722 wideband.
7) Is the Aiphone IX-DVF-PR suitable for an apartment building or is it a commercial-only unit?
It is classed as commercial equipment and belongs to the Aiphone IX Series IP intercom line, which is what gets specified for multi-family lobbies, schools, healthcare and office entries. Nothing prevents residential use, but the vandal-resistant stainless panel and prox reader are aimed at controlled commercial and multi-tenant entrances.
8) Can the IX-DVF-PR record video locally if the network goes down?
There is a microSD card slot in the station for local storage, separate from any network recording. Note the card is not part of the door station itself, so plan on supplying one.
