Aiphone Aiphone IX-DVF RA - IP Video Emergency Station, SIP Compatible, ADA Compliant IX-DVF-RA

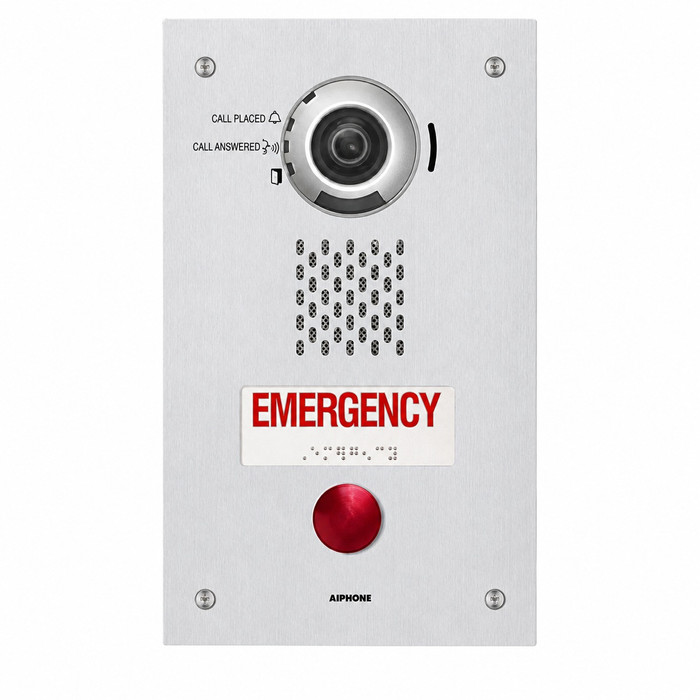

Aiphone IX-DVF RA - IP Video Emergency Station, SIP Compatible, ADA Compliant

(No reviews yet) Write a Review

Model: IX-DVF RA

In Stock (leaves warehouse same day if ordered before 3pm ET)

$2,198.00
$2,061.70
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

FEATURES

  • Use SIP to integrate with Cisco Unified Call Manager® and answer calls off-site
  • ONVIF® Profile S Compliant
  • Both “Call” and “Emergency” call buttons
  • ADA compliant raised lettering and Braille signage (French)
  • 802.3af PoE with PoE pass through (802.3at Type 2 PoE+)
  • 1.23 megapixel fixed color video camera
  • Camera vertical adjustment +15º, 0º, or -8º (manual)
  • Capture and store the audio and video of active conversations on a microSD™ card (not provided by Aiphone)
  • IP65 rated, weather resistant
  • Stainless steel faceplate
  • 2 contact outputs
  • 6 trigger inputs
  • 2-year warranty

SPECS

  • Power Source: PoE (IEEE 802.3af class 0)
  • Power Draw: 5.28 Watts
  • Camera: ⅓" CMOS 1.23 megapixel
  • illumination: 5 lux
  • Audio Codec: G.711 (μ-law, A law), G.722
  • Video Codec: H.264/AVC, motion JPEG
  • Protocols: IPv4, IPv6, TCP, UDP, SIP, HTTP, HTTPS, RTSP, RTP, RTCP, IGMP, MLD, SMTP, FTP, DHCP, NTP, DNS
  • Port Security: IEEE 802.1X
  • Operating Temp: -40° - 140°F (-40° - 60°C)
  • Ingress Protection: IP65
  • Impact Protection: IK08
  • Dimensions: 11-11⁄16" H x 7" W
  • Mounting: Flush mounted with included back box, or surface mount with the SBX-IDVFRA Stainless Steel surface mount box. Also compatible with the WB-CA, WB-HA, WB-CE, and WB-HE Emergency wall boxes or modular towers.


Manufacturer Resources

IX SYSTEM Brochure

Product Specs

Product Type:
IP Video Door Station
Series:
IX Series
Product Group:
Electronic Access Controls
Product Subgroup:
Intercoms
Subcategory:
IP Intercoms
Commercial/Residential:
Commercial
Electronic:
Yes
Product Category:
Electronic Access Controls
Department:
Door Hardware

Aiphone IX-DVF RA – Frequently Asked Questions

1) What is the difference between the IX-DVF-RA and IX-DVF-2RA emergency stations?
Button count. The RA has one call button; the 2RA has two. Both ship in English or French versions, and the French builds carry the ADA raised lettering and Braille signage in French. Pick the 2RA where you need a separate general assistance call and a dedicated emergency call reaching different destinations.
2) Can the Aiphone IX-DVF RA run on PoE, and how much power does it draw?
It runs on standard 802.3af PoE, class 0, drawing 5.28 watts. That means one Cat cable does power and data, no local transformer at the pedestal. It also does PoE pass through when fed from 802.3at Type 2 PoE+, so you can power a downstream device off the same run.
3) Will an Aiphone IX-DVF RA survive outdoors in an unheated parking garage or northern climate?
Rated IP65 for weather resistance and IK08 for impact, with a stainless steel faceplate. Operating range is -40 to 140 degrees F (-40 to 60 C), so it covers exterior tower and garage mounting in cold climates without a heater.
4) Can emergency calls from this Aiphone station be answered off-site on our phone system?
Yes. The IX-DVF RA is SIP compatible and integrates with Cisco Unified Call Manager, so calls can ring to desk phones or an off-site answering point rather than only to an IX master station. It speaks G.711 (mu-law and A-law) and G.722 audio over IPv4 or IPv6.
5) Can the IX-DVF RA release a door or trigger an alarm panel directly?
It carries 2 contact outputs and 6 trigger inputs. The outputs handle strike or maglock release and auxiliary signaling; the inputs take door position switches, tamper, or external call triggers. Confirm your strike's voltage and current against the contact rating before wiring it through.
6) Does this Aiphone station meet network security requirements for a hospital or campus IT department?
It supports IEEE 802.1X port security and HTTPS, alongside HTTP, TCP, UDP, RTP, RTCP, IGMP, MLD, SMTP, FTP, DHCP, NTP and DNS. That covers the usual authenticated-port requirement on an institutional network.
7) Can the camera angle be adjusted after the station is installed in a wall box?
Yes, manually. Vertical adjustment is +15 degrees, 0, or -8 degrees, which lets you correct for a station mounted at ADA reach height so the frame catches a face rather than a chest. There is no motorized or remote pan and tilt.
8) Is the IX-DVF RA suitable for a residential entry, or is it a commercial-only device?
This is a commercial-duty emergency station, and it is built for that job: stainless faceplate, IK08 impact rating, dedicated Call and Emergency buttons. For a single-family front door it is more station than the application needs and the wall box and tower mounting assume a garage, campus or facility install.
