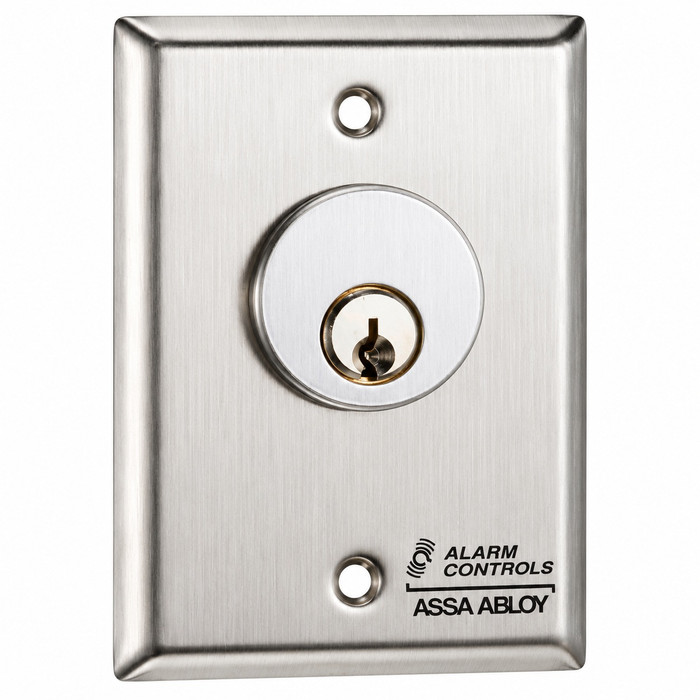

Alarm Controls MCK-4 Series - Mortise Cylinder Single Gang Station
**Mortise Cylinders not included**
Features
Standard Features
- Stainless steel wall plate accepts standard 1-1/8” mortise cylinder
- Tamper-proof and slotted-head screws included
- Mortise Cylinders not included, available separately (CY-1, CY-1A)
Options
- Momentary or alternate switch, see model chart
- SPDT or DPDT, see model chart
- No LED, green LED, green and red LEDs, see model chart.
- Pneumatic time delay: 2 to 45 seconds, see model chart.
- Add WP for weather resistant cover and surface mount box. Available for
single gang models only.
Specifications
Electrical
- Contacts rated 4A at 28 VDC
- LEDs operate on 12 or 24 VDC/VAC
- Switch depth behind plate: 1-1/4”
- Switches terminatedin colored leads
Operating Temperature
- +15 to 120F
Manufacturer Resources
Alarm Controls MCK Catalog Page
Product Specs
- Series:
- MCK-4
- Subcategory:
- Mortise Cylinder Station
- Commercial/Residential:
- Commercial
- Product Type:
- Mortise Cylinder Stations
- Product Group:
- Electronic Access Controls
- Product Subgroup:
- Sensors, Switches, Relays and Timers
- Product Finish:
- Satin Stainless Steel
- Product Category:
- Electronic Access Controls
- Department:
- Door Hardware
Alarm Controls MCK-4-4 – Frequently Asked Questions
1) Does the Alarm Controls MCK-4 mortise cylinder station come with the cylinder?
No cylinder is included with the MCK-4 station. You get the stainless steel wall plate, the switch, and both tamper-proof and slotted-head mounting screws. The plate accepts a standard 1-1/8 inch mortise cylinder, and Alarm Controls lists the CY-1 and CY-1A as the cylinders to order alongside it. If you already keep 1-1/8 inch mortise cylinders on a facility keyway, you can key the station into the same system rather than buying a new one.
2) How deep does the MCK-4 key switch station sit behind the wall plate?
Switch depth behind the plate is 1-1/4 inches. That is what has to clear inside a single gang box, so measure your box depth and anything already occupying it before you cut in. On surface applications, ordering the WP weather resistant version brings its own surface mount box, so you are not depending on what is in the wall.
3) Should I order momentary or alternate action on a key switch station?
Momentary makes contact only while the key is turned, then springs back. That is what you want for a door release or a request-to-exit pulse where the door should relock the moment you let go. Alternate action latches: turn the key and the contacts stay transferred until you turn it back. Use that for arming and disarming, putting a door on free access for the day, or shunting an alarm point. The MCK-4 is offered in both, in SPDT and DPDT.
4) Will an MCK-4 key switch handle the current for my maglock or electric strike?
Contacts are rated 4 amps at 28 VDC. That covers a typical maglock or a strike drawing well under an amp, and it covers a relay coil comfortably. If the load is a high-inrush device or anything on line voltage, switch a relay with the station and let the relay carry the load rather than running it through the key switch contacts.
5) Can I mount an Alarm Controls MCK-4 key station outside?
Ordered with the WP option, yes. That adds a weather resistant cover and a surface mount box, and Alarm Controls offers it on single gang models, which is what the MCK-4 is. Operating range is +15 to 120F, so a cold northern exterior gate or an unheated garage below 15 degrees is outside what the station is rated for. Without WP the station is an interior flush-mount device.
6) Is there a key switch that holds a door released for a set time without anyone standing there?
The MCK-4 is offered with a pneumatic time delay adjustable from 2 to 45 seconds. Turn the key and the contacts hold for the interval you have set, then drop out on their own. That is the option for a delivery door or a service entrance where someone needs a window to get through with hands full, and it does it mechanically, with no timer module to power or program. If you want the door to stay open until someone comes back and turns the key, order alternate action instead.
7) SPDT or DPDT on an Alarm Controls key station, which do I need?
Count the circuits you have to switch. SPDT gives you one set of transfer contacts, enough to release a single mag lock or strike. DPDT gives you two independent sets from one key turn, which is how you drop a lock and shunt the alarm zone at the same time, or release a lock while signalling the access panel. Both are available on the MCK-4 in momentary and alternate action.
8) What do the LED options on a mortise cylinder station actually tell you, and what voltage do they need?
LEDs on the MCK-4 run on 12 or 24 VDC or VAC, so they drop onto the same supply feeding most access control hardware. You can order the plate with no LED, a single green, or green and red. Two LEDs are the useful spec when the station is out of sight of the door: green for locked or armed, red for released, so a guard or manager reading the plate knows the state without walking the opening. On a momentary release, an LED is often wired to the lock output rather than the switch so it reports the door, not the key.
9) What do I need to specify when ordering an Alarm Controls MCK-4 key station?
Four decisions. Switch action, momentary or alternate. Contact configuration, SPDT or DPDT. LED, none, green, or green and red. And whether you want the WP weather resistant cover with surface mount box. There is also a pneumatic timer version, 2 to 45 seconds, in place of the plain switch. Add the mortise cylinder to the order separately, either a CY-1 or CY-1A, or one of your own on your building keyway.
10) Will the MCK-4 plate match the other stainless plates and switches in my building?
The plate is satin stainless steel in a single gang size, so it lines up with the standard stainless device plates already on most commercial corridors and equipment rooms. It fits a single gang opening, which means a standard single gang box or ring, not a two gang cutout.
11) How do you keep someone from unscrewing a key switch station off the wall?
Both tamper-proof and slotted-head screws ship with the MCK-4, so you pick the level of security the location calls for. Use the tamper-proof screws on public-side stations, a corridor, a lobby, or an exterior wall where the plate is reachable, and keep the slotted heads for stations inside a secured room where service access matters more.
