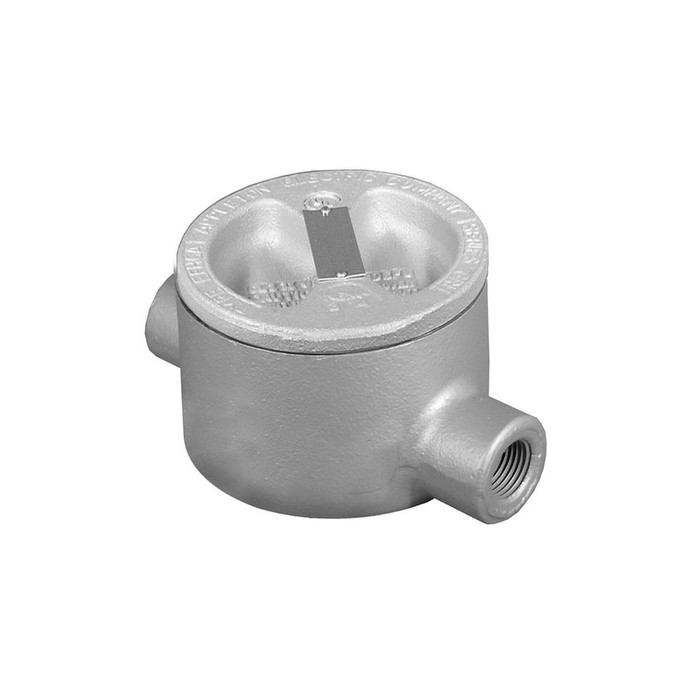

Appleton GRH Series Explosionproof Conduit Outlet Box, Malleable Iron

Appleton GRH Series Explosionproof Conduit Outlet Box, Malleable Iron

(No reviews yet) Write a Review

Model: GRHLB50

In Stock (leaves warehouse same day if ordered before 3pm ET)

$142.07
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Appleton GRH Series Explosionproof Conduit Outlet Box, Malleable Iron

The Appleton GRH Series conduit outlet box is an explosionproof, dust-ignitionproof fitting built with a malleable iron body for use in indoor and outdoor classified (hazardous) locations. Furnished with an internal ground screw and O-ring, these corrosion-resistant boxes provide access for maintenance, allow connection of different lengths of conduit, and permit changes in conduit direction, all while carrying a NEMA 3, 4 environmental rating.

Key Features

  • Explosionproof, Dust-Ignitionproof: Rated for use in Class I, Groups A, B, C, and D; Class II, Groups E, F, and G; and Class III hazardous locations.
  • Durable Construction: Malleable iron bodies deliver high tensile strength and ductility, with strong resistance to corrosion, impact, and shock.
  • Internal Ground Screw: Standard on every unit for reliable grounding continuity.
  • Tapered Hub Threads: Accurately tapped, tapered hub threads produce tight, rigid joints and dependable ground continuity with threaded metal conduit.
  • Raintight O-Ring Seal: Standard O-rings provide a raintight fit backed by a NEMA 3, 4 rating.
  • Internally Threaded Body: Pairs with an externally threaded cover; each box is furnished complete with its cover.
  • Protected Conductors: A smooth, rounded integral bushing in each hub protects conductor insulation during pulls.
  • General-Purpose Wiring: Designed for use with threaded metal conduit in general-purpose wiring applications.

Certifications & Compliance

  • Class I, Division 1 and 2, Groups A, B, C, D
  • Class II, Division 1 and 2, Groups E, F, G
  • Class III
  • NEMA 3, 4

Technical Specifications

  • Refer to manufacturer documentation for complete technical specifications.

Typical Applications

  • Indoor and Outdoor Classified Hazardous Locations
  • Class I, II, and III Hazardous Location Installations
  • Threaded Metal Conduit Systems for General-Purpose Wiring
  • Conduit Direction Changes and Maintenance Access Points

Why Appleton?

Appleton engineers the GRH Series with malleable iron construction and a triple-coat finish process for lasting corrosion resistance in demanding classified environments. Combined with an internal ground screw, raintight O-ring sealing, and explosionproof, dust-ignitionproof performance across Class I, II, and III locations, GRH boxes deliver code-compliant reliability for professional electrical installations.

GRH body-style key: Appleton's GRH family covers several distinct body shapes sharing the same cover/capacity spec — Type LB (this listing, GRHLB) is a back-outlet body style, the same "LB" shape convention used industry-wide for conduit bodies; Type L (see the separate GRHL listing) is a different body configuration. If you're not sure which body shape your run needs, compare the two listings before ordering — they are not the same part at a different size.

Product Specs

Product Type:
Outlet Box
Product Finish:
Epoxy Powder Coat
Standards:
NEMA 3, 4
Product Material:
Malleable Iron
Department:
Electrical
Product Group:
Boxes & Enclosures
Product Subgroup:
Electrical Boxes

Appleton GRHLB50 – Frequently Asked Questions

1) Can the Appleton GRHLB50 conduit outlet box be used in a Class I Division 1 area?
Yes. The Appleton GRH Series box is explosionproof and dust-ignitionproof for Class I, Divisions 1 and 2, Groups A, B, C and D; Class II, Divisions 1 and 2, Groups E, F and G; and Class III locations. That covers most gas, vapor and combustible-dust classified areas, including Group A (acetylene) and Group B (hydrogen), which many cast-iron fittings do not cover.
2) Is the GRHLB50 rated for outdoor use in the rain?
It is. The GRH box carries a NEMA 3, 4 rating, backed by a standard O-ring that gives a raintight seal between the internally threaded body and the externally threaded cover. NEMA 4 means it also stands up to hose-directed water, so wash-down areas and exposed outdoor runs are in scope.
3) Does the Appleton GRHLB50 come with a cover, or do I order that separately?
The cover is included. Each GRH box is furnished complete with its cover, plus an internal ground screw and the O-ring. What you supply is the threaded rigid metal conduit and, if the run needs it, a sealing fitting per the installation requirements for the classified area.
4) Will the GRHLB50 thread onto rigid metal conduit, or does it take compression fittings?
Threaded metal conduit only. The hubs are accurately tapped with tapered threads to produce a tight, rigid joint and dependable ground continuity, which is what an explosionproof installation requires. There is no provision for compression or set-screw EMT connectors on this box.
5) Is the malleable iron body going to corrode in a wet or chemical plant environment?
The GRH body is malleable iron with an epoxy powder coat finish, applied as part of Appleton's triple-coat process for corrosion resistance in classified environments. Malleable iron also gives high tensile strength and ductility with resistance to impact and shock, which is why it is specified over aluminum where physical abuse is likely. For severe chloride or acid exposure, a stainless or specially coated fitting is the usual call.
6) How do I ground the Appleton GRHLB50 box?
An internal ground screw is standard on every GRH unit, so you can bond an equipment grounding conductor inside the box. The tapered hub threads also maintain ground continuity through the threaded conduit itself. For an inspector who wants a bonded conductor rather than relying on the raceway, the screw is already there.
7) Will the GRHLB50 protect the conductor insulation when I pull wire through it?
Each hub has a smooth, rounded integral bushing that protects conductor insulation during pulls. That is the point of specifying a conduit body at a direction change instead of bending the raceway, along with giving you a maintenance access point later.
8) What part number do I order for the Appleton GRH back-outlet box?
The part is GRHLB50, an Appleton GRH Series explosionproof conduit outlet box in malleable iron, LB back-outlet body style, supplied with cover, O-ring and internal ground screw.
