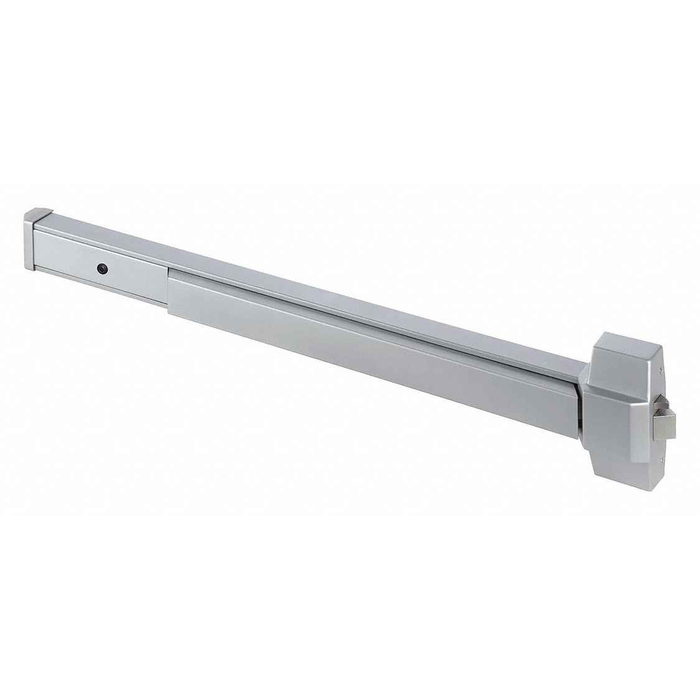

Arrow ED910 36" Rim Exit Device

Arrow ED910 36" Rim Exit Device

(No reviews yet) Write a Review

Model: ED910-36 32D
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$427.00
$136.97
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

ARROW ED910 Series Exit Devices

The ED910 and PEC910 exit devices are similar in function, yet different in form. The ED910 is a value exit device for everyday solutions whereas the PEC910 features a one-piece design with a patented permanent end cap – ideal for high traffic or high vandalism areas. Both products are BHMA Grade One certidfied and designed to replace or upgrade
existing devices. Each also comes with an extended 10-year warranty.



Standard features

  • Chassis – Stamped steel materials
  • Chassis Cover – Cast zinc
  • Door Type – Fits 1-3/4" (44.5 mm) doors standard.
  • Door Width – For 48" doors, can be cut for a minimum 43" door width. For 36" doors, can be cut for a minimum 31" door width.Two non-critical adjusting valves (sweep and latch) control closing speed.
  • Stile – 4-1/2" (144.30 mm) minimum
  • Mounting – Wood and machine screws furnished standard
  • Handing – Reversible
  • Dogging – Hex-type hold down
  • Latchbolt – Stainless stee
  • Rail Assembly – Powder coated steel, stainless steel optional
  • Warranty – Ten year warranty
  • Strike – Surfaced applied, nylon coated



Certification & Compliance:

  • ANSI/BHMA A156.3, Grade 1
  • Underwriters Laboratories (UL and CUL) Listed for accident hazard (panic) standard.
  • All exit devices comply with life safety code NFPA 101



DOWNLOADS & RESOURCES

ED910 Series Cut Sheet

Manufacturer Resources

Product Specs

Subcategory:
Rim Exit Devices
Series:
ED910 Series
Product Type:
Exit Devices - Rim
ADA Compliant:
No
Warranty:
10 Year
Product Group:
Exit Devices and Trim
Product Subgroup:
Exit Devices - Rim
ANSI/BHMA:
ANSI/BHMA A156.3, Grade 1, UL and CUL Listed, Complies NFPA 101 Safety Code
Commercial/Residential:
Commercial
Wood Door Compatible:
No
Product Model:
ED910
Door Thickness Range:
1-3/4"
Product Size:
36"
Fire Rating:
No
Product Category:
Exit Devices and Trim
Product Substrate:
Steel
Department:
Door Hardware

Arrow ED910-36 32D – Frequently Asked Questions

1) What is the minimum door width and stile the Arrow ED910 needs?
Stile has to be at least 4-1/2 inches, so the ED910 is a wide stile device and won't go on a narrow stile aluminum storefront door. On width, the 36 inch device can be cut down for a door as narrow as 31 inches, and the 48 inch device cuts down to a 43 inch minimum door. Measure the stile first, that's the spec that rules it out.
2) Does the Arrow ED910 meet Grade 1 and panic hardware code requirements?
The ED910 is certified to ANSI/BHMA A156.3, Grade 1, is UL and cUL Listed for the accident hazard (panic) standard, and complies with NFPA 101 Life Safety Code. That's the package a spec writer or facilities buyer normally needs for a commercial egress opening. It is not ADA compliant and not fire rated, so it does not cover a labeled opening or an accessibility requirement on its own.
3) Do I need to cut a mortise or prep the frame for the Arrow ED910 strike?
No frame mortise. The ED910 is a rim device, so the latch throws into a surface applied strike that screws to the face of the stop. The strike is nylon coated to cut noise on latching. Rim mounting is why this is the quickest exit device to retrofit onto an existing single door, and it's also why it won't secure a pair of doors without a mullion, since there is nothing to strike into at the meeting stile.
4) I have a pair of doors with no mullion. Will an Arrow ED910 work?
Not on its own. A rim device like the ED910 needs something at the head of the opening to latch into, so on a pair you either add a removable mullion and run a rim device on each leaf, or you switch to vertical rod devices that latch at the head and threshold. For the vertical rod route, the Hager 4501 Series 36 inch concealed vertical rod device is a Grade 1 wide stile pushpad option, and the Hager 4601 is the narrow stile version.
5) Can the Arrow ED910 replace an existing exit device without changing the door?
The ED910 is built to replace or upgrade existing devices, and rim mounting keeps the work on the door face and frame stop rather than in the door edge. Two things decide it: the leaf has to be 1-3/4 inches and the stile at least 4-1/2 inches. If the old device was a vertical rod or a mortise exit device, you are changing the latching arrangement, not just swapping hardware.
6) The Arrow ED910 is not fire rated. What rim exit device should I use on a fire rated opening instead?
The Arrow ED910 carries no fire rating and complies with NFPA 101 as a panic device. For a labeled fire door you need a fire exit hardware listing instead. The Dexter ED1000-R-F-EO is a Grade 1 fire rated rim exit device. The Marks USA M9900F comes in 36 inch and 48 inch fire rated rim versions, exit only with a panic protector end cap. The Adams Rite 3700 Series is a Grade 1 fire rated narrow stile rim device at 30 inches, and it is rated for wood doors. Orca Hardware OED85 is a 36 inch fire rated rim device, exit only. Fire exit hardware is supplied without dogging, so plan on the device latching at all times.
7) The Arrow ED910 needs a 4-1/2 inch stile. What rim exit device fits a narrow stile aluminum door?
The Arrow ED910 requires a 4-1/2 inch minimum stile, which rules out most narrow stile aluminum storefront. Narrow stile alternatives include the Corbin Russwin ED4200, a Grade 1 narrow stile rim device at 36 inches for 1-3/4 inch doors that also accepts trim; the Falcon 19-R Series, Grade 1 narrow stile exit only at 36 inches for 1-3/4 inch doors; the TownSteel ED3700 and ED8900, both 36 inch Grade 1 heavy duty narrow stile rim devices; and the Adams Rite 8700 Series at 30 inches, Grade 1 narrow stile with starwheel interlocking and rated for wood doors. Confirm your stile width against the device before ordering.
8) What is the closest Grade 1 wide stile rim exit device to the Arrow ED910 if the ED910 is not available?
The Arrow ED910 is a Grade 1 rim exit device for 1-3/4 inch doors, certified to ANSI/BHMA A156.3 and UL/CUL listed for panic. The Von Duprin 22 Series 22-3FT is a direct counterpart: a 36 inch wide stile pushpad rim device, non-handed, Grade 1, for 1-3/4 inch doors. The Corbin Russwin ED5200 is another Grade 1 wide stile rim device at 36 inches for 1-3/4 inch doors, and it accepts trim in addition to exit only. Any of the three covers a 36 inch hollow metal or aluminum opening with a Grade 1 rim latch.
9) Which of these exit devices are not substitutes for the Arrow ED910 even though they show up in the same search?
Several rim products in the same class solve a different problem than the Arrow ED910, which is a Grade 1 mechanical rim panic device. The Hager 4501 and 4601 are concealed vertical rod devices, not rim, and require a top and bottom rod prep the ED910 does not. The Detex Advantex 00 Series is a dummy device with no latching function. The Sargent 12-8810-LTRIM is a dummy function device as well. The SDC MSB550 is a mechanical switch bar for releasing an electromagnetic lock and the SDC PSB560 is a pressure sense bar, both signaling devices rather than a latching panic device. The Securitron EMB is an electromechanical exit bar for 2-1/4 inch doors. The Dexter ED1500-EXTRD-SP is a 12 inch extension rod assembly, a part for ED1500 devices rather than a device.
10) Which rim exit devices accept a door thicker than 1-3/4 inch, since the Arrow ED910 does not?
The Arrow ED910 fits 1-3/4 inch doors standard. Where the leaf is thicker, the Adams Rite 8800 Series covers 1-3/4 to 2-1/4 inch as a Grade 1 narrow stile rim device, and the Dormakaba 9300 Series covers the same 1-3/4 to 2-1/4 inch range as a Grade 1 heavy duty wide stile device. The SDC S6136 covers 1-3/4 to 2 inch. Measure the leaf before ordering, because a device sized for 1-3/4 inch will not through-bolt correctly on a thicker door.
11) Do I have to order the Arrow ED910 handed, left or right?
Handing is not something you specify. The ED910 is reversible, so one device covers either hand and you can stock a single part number across a building. That matters if you're carrying spares for a portfolio of openings rather than ordering per door.
12) Can I hold the door unlocked during business hours with the Arrow ED910?
Yes, the ED910 uses hex-type hold down dogging. You depress the push rail and set it with a hex key, and the latch stays retracted so the door pushes free until you undog it. That's the standard arrangement for a storefront or school entry that runs open during the day and locks down after hours. Dogging is only permitted on non fire rated openings, which the ED910 is.
13) Do I get the mounting screws with the Arrow ED910, or do I need to buy them?
Wood and machine screws are furnished standard with the ED910, along with the surface applied nylon coated strike. What is not in the box is any outside trim. If you need to get back in from the exterior, plan on ordering a lever or pull trim separately, or a rim cylinder for a night latch arrangement.
14) What is the difference between the Arrow ED910 and the Arrow PEC910?
Same function, different build. The ED910 is the value device for everyday openings; the PEC910 is a one piece design with a patented permanent end cap, aimed at high traffic and high vandalism doors. Both are BHMA Grade 1 certified and both are made to replace or upgrade existing devices, so the decision is how hard the opening gets used, not whether it will fit.
15) Which size Arrow ED910 do I order for a 36 inch door?
The 36 inch ED910 covers doors from 31 inches up to 36 inches, since the device can be cut down to a 31 inch minimum. Above 36 inches go to the 48 inch device, which cuts down to a 43 inch minimum door. Order by the actual leaf width, not the frame opening.
16) What is a heavier duty step up from the Arrow ED910 for a high abuse exit?
The Arrow ED910 is a Grade 1 device with a stamped steel chassis and cast zinc chassis cover. For openings that take more abuse, the Detex 10 Advantex Series is a 36 inch wide stile extra heavy duty Grade 1 rim device, and the Detex 40 Advantex is the extra heavy duty narrow stile version. The Dormakaba 9300 Series is a Grade 1 heavy duty wide stile rim device at 48 inches, exit only, with a 1-3/4 to 2-1/4 inch door thickness range against the ED910 fixed 1-3/4 inch. The TownSteel ED1100 and ED9700 are 36 inch Grade 1 heavy duty wide stile rim devices.
17) What is a lighter duty or Grade 2 alternative to the Arrow ED910 for a low traffic exit?
The Arrow ED910 is a Grade 1 device certified to ANSI/BHMA A156.3. Where Grade 1 is not required by the spec, the Cal-Royal 5000 is a 36 inch wide rim exit device with a touch bar on a Grade 2 chassis, and the Cal-Royal 5500 is the 48 inch push bar version, also Grade 2. Both are rated heavy duty. On the Grade 1 side but built as a standard duty rail, the Design Hardware 2000R is a 33 inch wide stile rim device with hex key dogging, matching the ED910 hex-type hold down dogging, and the Hager 4701 Series is a 36 inch standard duty rim device carrying Grade 1 BHMA certification.
18) I want a crossbar rather than a push bar. Is the Arrow ED910 a crossbar device, and what is if not?
The Arrow ED910 uses a rail assembly of powder coated steel, with stainless steel optional, on a stamped steel chassis. For a crossbar look instead, the Corbin Russwin ED3200 is a Grade 1 48 inch crossbar rim exit device for 1-3/4 inch doors, and the CRL Jackson 1095 Series is a 48 inch crossbar rim panic device, wide stile, exit only. CRL Jackson also builds the 1095P as a paddle version of the same series if you want the paddle actuator rather than a bar.
19) The Arrow ED910 is mechanical. What rim exit device do I use if the opening needs electrified access control?
The Arrow ED910 is a mechanical Grade 1 rim device with hex-type hold down dogging and no electrical option. For a card reader or remote release opening, the SDC S6136 Spectra S6000 Series is a 36 inch electrified architectural rim exit device with a 4 inch wide stile and a 1-3/4 to 2 inch door thickness range. The Dormakaba E2103 is a 36 inch electrified rim device supplied with 4908A trim in classroom function. Both give you an electrically controlled outside trim that the ED910 cannot provide.
20) The Arrow ED910 is exit only with the standard strike. What rim device should I specify if I need a night latch or keyed outside trim?
The Arrow ED910 ships with a surface applied, nylon coated strike and a stainless steel latchbolt. If the opening needs keyed entry from the outside, the Sargent 8504 is a Grade 1 narrow stile rim device in night latch function. The Detex V4003A/03AN is a Grade 1 wide stile rim device supplied with night latch trim. The Corbin Russwin ED5200 and ED4200 are Grade 1 rim devices that accept trim, so outside trim can be added rather than built in.
21) I have a 48 inch opening. Which devices besides the Arrow ED910 cover that width?
The Arrow ED910 comes in a 36 inch size that can be cut to a minimum 31 inch door width, and a 48 inch size that can be cut to a minimum 43 inch door width. Other devices sized for the wider leaf include the Cal-Royal A9820, a 48 inch Grade 1 heavy duty exit only rim device; the Sargent 2828 and 3828, both Grade 1 reversible rim devices for 48 inch doors, exit only, wide stile; the Dexter ED1000-R-EO-4FT, a 4 foot Grade 1 rim device; and the Corbin Russwin ED3200 crossbar at 48 inches. The Arrow ED910 is reversible handing, as are the Sargent 2828 and 3828.
22) I need one rim exit device that fits both narrow and wide stile doors across a property. Does the Arrow ED910 do that?
The Arrow ED910 needs a 4-1/2 inch minimum stile, so it is a wide stile device and will not standardize across narrow stile aluminum leaves. For a mixed fleet, the BEST Precision 5101 Series is a non-handed universal design rim exit device, and the BEST 2401 Series is a non-handed narrow stile exit only device. The SDC MSB550 and PSB560 bars are listed for narrow or wide stile, though they are switch and sense bars rather than latching panic devices. Where a single latching device has to cover both stile types, expect to specify two models rather than one.
23) What finishes does the Arrow ED910 rim exit device come in?
Three: 630 satin stainless steel, 689 aluminum painted, and 690 dark bronze painted. If you're matching existing hardware across a building, 630 is the one that lines up with satin stainless closers, pulls and mortise trim; 689 and 690 are painted finishes that blend with aluminum and dark bronze storefront framing respectively.
