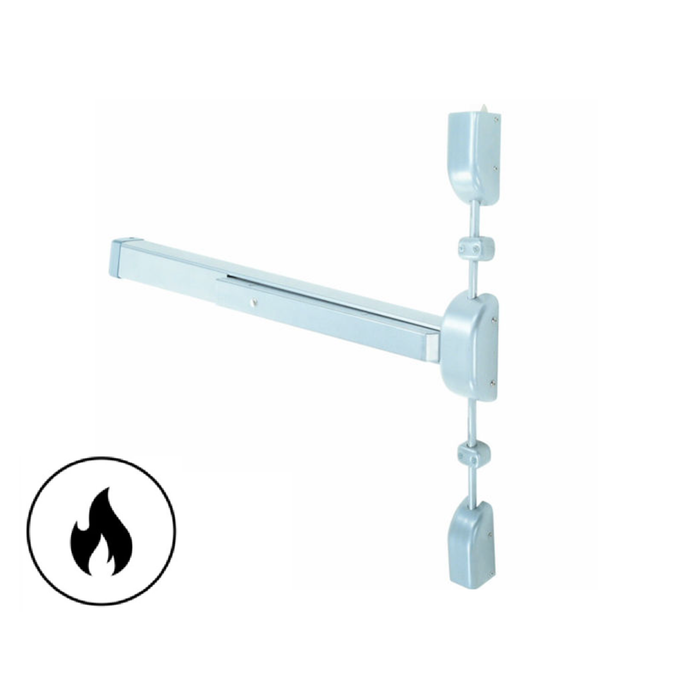

Arrow S1150 36" Fire Rated Surface Vertical Rod Exit Device Only, Less Trim

Arrow S1150 36" Fire Rated Surface Vertical Rod Exit Device Only, Less Trim

(No reviews yet) Write a Review

Model: FS1150F AL
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$1,122.00
$690.26
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

ARROW S1150 Series Exit Devices

Standard features:

  • Chassis & Cover: Non-ferrous alloy
  • End caps: Metal
  • Doors: 1-3/4" (44.45mm) thick wood or hollow metal; 3-3/4" minimum stile for single doors; 3-1/2" (88.90mm) minimum stile for double doors.
  • Handing: Reversible
  • Dogging: Allen-type key standard, cylinder available
  • Top/Bottom Bolts/Latchbolt: Brass 1/2" (12.7mm) throw top, 3/4" (19.05mm) bottom;
  • Rail Assembly: Steel
  • Rail Size– Furnished standard for doors up to 36", can be cut down to accommodate 32" doors. Alternate rail sizes available for narrow or wide doors wide doors



Certification & Compliance:

  • ANSI/BHMA A156.3, Grade 1
  • ANSI A117.1 Accessibility Code
  • Underwriters Laboratories (UL and CUL) listed for accident hazard (panic) standard.
  • Fire Exit hardware for hollow metal doors, UL and CUL listed for 3 hour, A label and lesser doors, Prefix “F” before part number.
  • Fire Exit hardware for wood doors, listed up to 1-1/2 hour, B label doors.
  • All exit devices comply with life safety code NFPA 101.
  • All fire rated devices comply with fire door and window code NFPA80.



DOWNLOADS & RESOURCES

S1250 Series Cut Sheet

Manufacturer Resources

Product Specs

Series:
S1150 Series
Product Type:
Exit Devices - Surface Vertical Rod
Stile Width:
3-3/4"
Warranty:
3 Year
Product Group:
Exit Devices and Trim
Product Subgroup:
Exit Devices - Vertical Rod
Subcategory:
Surface Vertical Rod
Latch Throw:
Top: 1/2"; Bottom: 3/4"
ANSI/BHMA:
ANSI/BHMA A156.3, Grade 1, ANSI A117.1 Accessibility Code, UL and CUL Listed, NFPA 101, NFPA80, BHMA Certified
Commercial/Residential:
Commercial
Stile Type:
Narrow or Wide Stile
Product Model:
S1150
Product Function:
Exit Only
Door Thickness Range:
1-3/4"
Door Dimension Height:
90"
Fire Rating:
Yes
Product Substrate:
Steel
Product Category:
Exit Devices and Trim
Department:
Door Hardware

Arrow FS1150F AL – Frequently Asked Questions

1) Will the Arrow S1150 exit device fit a 32 inch door, or do I need a different rail size?
The S1150 ships with a rail sized for doors up to 36 inches, and that rail can be cut down to suit a 32 inch door. You do not need a different part for that opening. Alternate rail sizes are offered for narrower or wider doors outside that range.
2) What is the minimum stile width for an Arrow S1150 surface vertical rod device?
Single doors need at least a 3-3/4 inch stile. On a pair of doors the minimum drops to 3-1/2 inches. Measure the flat face of the stile before ordering; if your aluminum storefront stile is under 3-1/2 inches, this device will not mount and you want a true narrow stile device such as the Von Duprin 3327A or the Corbin Russwin ED4400.
3) Is the Arrow S1150 fire rated, and for what label doors?
Yes. On hollow metal doors the S1150 fire exit hardware is UL and CUL listed for 3 hour, A label and lesser doors. On wood doors the listing goes up to 1-1/2 hour, B label. Order it with the F prefix ahead of the part number to get the fire rated version. It also complies with NFPA 80 for fire doors and NFPA 101 life safety.
4) Does the Arrow S1150 need a mullion on a pair of doors?
No. A surface vertical rod device latches into a strike at the head and into the floor or threshold at the bottom, so each leaf secures itself and a pair works without a center mullion. That is the main reason to pick a vertical rod over a rim device, which needs a mullion or an inactive leaf to latch against.
5) Do I get a lever or pull with the Arrow S1150, or do I have to order trim separately?
The S1150 as configured here is exit only and supplied less trim, so there is no outside lever, pull or cylinder in the box. Push the bar from inside to exit; from outside the door stays secure with no operable trim. If you need outside access, you need a device configured to accept trim plus the trim itself, such as the Corbin Russwin ED5400, which is listed as exit only, accepts trim.
6) Is the Arrow S1150 Grade 1, and does it meet accessibility requirements?
Yes on both. The S1150 is certified to ANSI/BHMA A156.3, Grade 1, which is the heaviest commercial duty level for exit devices, and it complies with the ANSI A117.1 accessibility code. It is also UL and CUL listed for the panic (accident hazard) standard. That combination is what an institutional or school spec typically calls for.
7) Is there a Sargent equivalent to the Arrow S1150 fire rated vertical rod device?
Yes. The Sargent 2727 is a reversible Grade 1 fire rated surface vertical rod exit device in the 20 Series, wide stile, exit only function - the same fire rated, exit only, reversible pattern as the Arrow S1150, which is Grade 1 under ANSI/BHMA A156.3 and reversible in handing. Sargent also offers the 3727 in the 30 Series, Grade 1 exit only wide stile with a standard push bar.
8) My opening is not a fire door. What vertical rod device can I use instead of the Arrow S1150?
Non-fire openings open up several Grade 1 options. The Von Duprin 2227-3FT is a wide stile, non-handed Grade 1 surface vertical rod device for 36 inch doors on 1-3/4 inch thickness. The Falcon 25-V-EO is a Grade 1 wide stile exit only device at 3 feet, and the Falcon 19-V-EO is the Grade 1 narrow stile exit only version. All three are listed as not fire rated, so they cannot take the place of the Arrow S1150 on a labeled door.
9) The Sargent 12-8710 is fire rated like the Arrow S1150 - can I swap one for the other?
No. The Sargent 12-8710 is a Grade 1 wide stile surface vertical rod device in the 8700 Series with a dummy function, meaning it does not latch or operate as an exit device. The Arrow S1150 is exit only function with a 1/2 inch top bolt throw and 3/4 inch bottom bolt throw. A dummy device is used for the inactive or pull-side appearance match, not for egress.
10) Is the Adams Rite 3100 a substitute for the Arrow S1150 on a fire rated opening?
The Adams Rite 3100 Series is a fire rated Grade 1 surface vertical rod exit device for 1-3/4 inch doors in a wide stile configuration, so it matches the Arrow S1150 on fire rating, grade, and door thickness. The difference is length: the Adams Rite 3100 in that configuration is a 30 inch device, while the Arrow S1150 rail is furnished for doors up to 36 inches and can be cut down to 32 inches. Confirm your door width before substituting. Note that the related Adams Rite 8100 and 8200 Series are life-safety devices listed as not fire rated.
11) Can the Arrow S1150 be dogged down so the door pushes free during business hours?
Yes, but check the opening first. Allen key dogging is standard and a cylinder dogging option is available. Note that dogging is only legal on non-fire-rated openings; if you are installing the F prefix fire exit version on a labeled door, the latches must stay active and dogging cannot be used.
12) Will the Arrow S1150 latch into my existing top strike?
The top bolt throws 1/2 inch (12.7mm) and the bottom bolt 3/4 inch (19.05mm), both brass. Where an existing head strike has the same pocket depth and is set at the same rod centerline, the top bolt will engage. Different manufacturers set strike heights differently, so measure from the door edge to the existing strike pocket before reusing it, and plan on the bottom strike being replaced since the 3/4 inch throw needs the matching floor strike.
13) Is the Arrow S1150 handed, or is one device good for left and right doors?
Reversible. One S1150 covers either hand, so you can stock a single device for a building with mixed openings and set it in the field rather than ordering per leaf.
14) What is the closest fire rated alternative to the Arrow S1150 if I need a different brand?
Among fire rated surface vertical rod devices, the TownSteel EF9727 (9700 Series) is a 36 x 84 inch Grade 1 certified heavy duty wide stile unit rated for fire and listed as wood door compatible, and the Adams Rite 3100 Series is a fire-rated Grade 1 wide stile device for 1-3/4 inch doors. Sargent's 2727 is a Grade 1 reversible wide stile device in the 20 Series. Most other surface vertical rod devices in this class are not fire rated, so confirm the label requirement before substituting.
15) Does the Arrow S1150 work on wood doors or only hollow metal?
Both. The S1150 mounts on 1-3/4 inch wood or hollow metal doors. The difference shows up in the fire label: hollow metal gets the full 3 hour A label listing, while wood doors are listed up to 1-1/2 hour, B label.
16) I need a vertical rod exit device for a narrow stile aluminum door - does the Arrow S1150 fit or should I use something else?
The Arrow S1150 is furnished for 1-3/4 inch wood or hollow metal doors with a 3-3/4 inch minimum stile, and alternate rail sizes cover narrow or wide stile applications. If you want a device built specifically as narrow stile, the Von Duprin 3327A is a Grade 1 narrow stile surface vertical rod device for 36 inch doors, the Corbin Russwin ED4400 is a Grade 1 narrow stile 36 inch device that accepts trim, and the TownSteel ED3727 is a Grade 1 narrow stile 36 by 84 device. Those three are listed as not fire rated.
17) Is there a Grade 2 alternative to the Arrow S1150 surface vertical rod device?
The Arrow S1150 is Grade 1 under ANSI/BHMA A156.3. If your spec allows Grade 2, the TownSteel TS5100 Series is a heavy duty Grade 2 surface vertical rod device at 36 by 84 inches, wide stile, and the Dexter ED2000 Series is a Grade 2 surface vertical rod panic device. Both are listed as not fire rated, so neither works on a labeled opening where the S1150 would go.
18) What is a simpler standard duty vertical rod device compared with the Arrow S1150?
The Arrow S1150 is a Grade 1 device with a steel rail assembly, non-ferrous alloy chassis and cover, and metal end caps. For a lighter duty approach, the Design Hardware 2000V is a standard duty surface vertical rod device at 33 inches, the Design Hardware 1000V is the heavy duty version at the same 33 inch length, and the Orca OED56 Series is a 36 inch standard duty exit only device supplied less bottom rod in aluminum finish for 1-3/4 inch doors. Those are listed as not fire rated.
19) I need a reversible non-handed vertical rod exit device - what are my options besides the Arrow S1150?
The Arrow S1150 is reversible in handing. Among comparable 36 inch devices, the BEST Precision 5201 Series is described as reversible, the Von Duprin 2227-3FT is non-handed Grade 1 wide stile, and the Sargent 2727 is a reversible Grade 1 fire rated device. If the door carries a label, the Sargent 2727 is the one of those three listed as fire rated alongside the Arrow.
20) What finishes does the Arrow S1150 come in for a 36 inch door?
Three painted finishes at the 36 inch size: aluminum (AL), dark bronze (BRZ) and light bronze (LBZ). If you are matching existing devices across a building, dark bronze and light bronze are distinct shades, so pull a sample from an installed opening before standardizing.
21) What is the Arrow S1150 chassis and rail made of, and will it hold up in a high traffic entrance?
Chassis and cover are non-ferrous alloy, the end caps are metal rather than plastic, the rail assembly is steel, and the top and bottom bolts are brass. Paired with the Grade 1 A156.3 certification, that build is aimed at commercial traffic, not light duty residential use.
