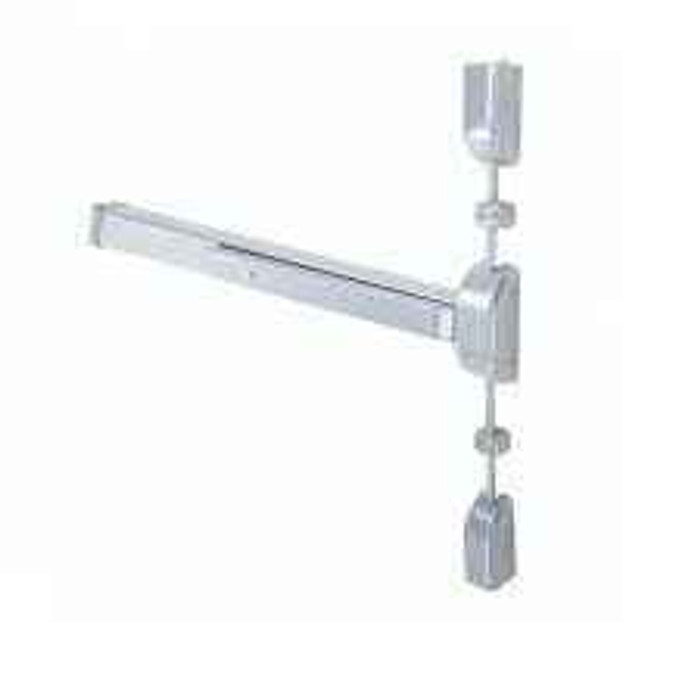

Arrow S1150 48" Surface Vertical Rod Exit Device Only, Less Trim

Arrow S1150 48" Surface Vertical Rod Exit Device Only, Less Trim

(No reviews yet) Write a Review

Model: S1150G AL
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$932.00
$596.32
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

ARROW S1150 Series Exit Devices

Standard features:

  • Chassis & Cover: Non-ferrous alloy
  • End caps: Metal
  • Doors: 1-3/4" (44.45mm) thick wood or hollow metal; 3-3/4" minimum stile for single doors; 3-1/2" (88.90mm) minimum stile for double doors.
  • Handing: Reversible
  • Dogging: Allen-type key standard, cylinder available
  • Top/Bottom Bolts/Latchbolt: Brass 1/2" (12.7mm) throw top, 3/4" (19.05mm) bottom;
  • Rail Assembly: Steel
  • Rail Size– Furnished standard for doors up to 36", can be cut down to accommodate 32" doors. Alternate rail sizes available for narrow or wide doors wide doors



Certification & Compliance:

  • ANSI/BHMA A156.3, Grade 1
  • ANSI A117.1 Accessibility Code
  • Underwriters Laboratories (UL and CUL) listed for accident hazard (panic) standard.
  • Fire Exit hardware for hollow metal doors, UL and CUL listed for 3 hour, A label and lesser doors, Prefix “F” before part number.
  • Fire Exit hardware for wood doors, listed up to 1-1/2 hour, B label doors.
  • All exit devices comply with life safety code NFPA 101.
  • All fire rated devices comply with fire door and window code NFPA80.



DOWNLOADS & RESOURCES

S1250 Series Cut Sheet

Manufacturer Resources

Arrow Express Catalog

Product Specs

Series:
S1150 Series
Product Type:
Exit Devices - Surface Vertical Rod
Stile Width:
3-3/4"
Warranty:
3 Year
Product Group:
Exit Devices and Trim
Product Subgroup:
Exit Devices - Vertical Rod
Subcategory:
Surface Vertical Rod
Latch Throw:
Top: 1/2"; Bottom: 3/4"
ANSI/BHMA:
ANSI/BHMA A156.3, Grade 1, ANSI A117.1 Accessibility Code, UL and CUL Listed, NFPA 101, NFPA80, BHMA Certified
Commercial/Residential:
Commercial
Stile Type:
Narrow or Wide Stile
Product Model:
S1150
Product Function:
Exit Only
Door Thickness Range:
1-3/4"
Door Dimension Height:
90"
Fire Rating:
No
Product Substrate:
Steel
Product Category:
Exit Devices and Trim
Department:
Door Hardware

Arrow S1150G AL – Frequently Asked Questions

1) Will the Arrow S1150 surface vertical rod exit device fit a 1-3/4 inch door?
That's the only thickness it's built for. The S1150 is set up for 1-3/4 inch (44.45mm) wood or hollow metal doors. Stile requirement is 3-3/4 inch minimum on single doors and 3-1/2 inch minimum on double doors, so check the lock stile before ordering.
2) What door height does the 48 inch Arrow S1150 rod device cover?
The 48 inch designation is the rod length, sized for doors up to 90 inches tall. The rail itself comes standard for doors up to 36 inches wide and can be cut down for a 32 inch door; alternate rail sizes exist for narrower or wider leaves.
3) Can I use the Arrow S1150 on a pair of doors with no center mullion?
Yes. A surface vertical rod device latches into the head frame and the threshold rather than a strike on the jamb, so a pair of S1150s secures double doors without a mullion. Minimum stile on double doors is 3-1/2 inches. Top bolt throw is 1/2 inch, bottom bolt 3/4 inch, so the frame and floor strikes have to be prepped to suit.
4) Is the Arrow S1150 exit device fire rated?
No. The standard S1150 is a panic device, UL and CUL listed for the accident hazard (panic) standard, and it complies with NFPA 101 life safety code. For a fire opening you need the fire exit version, ordered with an F prefix on the part number, which is listed for 3 hour A label hollow metal doors and up to 1-1/2 hour B label wood doors.
5) Does the Arrow S1150 come with outside trim or a lever?
No. It ships as device only, less trim, exit only. There is no outside operating trim, so from the outside the door is pull-only or blank unless you add a pull or trim separately. If you need key or lever access from outside, specify trim as a separate line.
6) My aluminum storefront stile is narrower than 3-3/4 inches. What vertical rod device should I use instead of the Arrow S1150?
The S1150 won't work below its stated stile minimum, 3-3/4 inches on a single door. Go to a narrow stile device instead: the Adams Rite 8200 Series is a Grade 1 narrow stile life-safety surface vertical rod, the Von Duprin 3327A is a narrow stile Grade 1 unit for 36 inch doors, and the Corbin Russwin ED4400 is a narrow stile Grade 1 device that accepts trim.
7) The Arrow S1150 is not fire rated - what surface vertical rod device should I use on a fire rated opening?
The S1150 as configured is not fire rated. For a labeled opening, the Adams Rite 3100 Series is a Grade 1 fire rated wide stile surface vertical rod device for 1-3/4 inch doors, and the TownSteel 9700 Series EF9727 is a Grade 1 fire rated heavy duty wide stile surface vertical rod device that is wood door compatible. The Sargent 2727 is also a Grade 1 fire rated wide stile exit only device.
8) What is a Grade 1 exit-only surface vertical rod device equivalent to the Arrow S1150 if Arrow is not an approved brand on the job?
The Arrow S1150 is a Grade 1 exit-only surface vertical rod device for 1-3/4 inch doors. Closest matches by function and grade include the Falcon 25-V-EO, a Grade 1 exit only wide stile surface vertical rod device for 1-3/4 inch doors, and the Sargent 2727, a Grade 1 reversible exit only wide stile surface vertical rod device. The Von Duprin 2227-3FT is also Grade 1 wide stile for 1-3/4 inch doors and is non-handed.
9) I need a vertical rod device that accepts outside lever or pull trim - does the Arrow S1150 do that?
The Arrow S1150 in this configuration is exit only and supplied less trim. If the opening needs outside operating trim, the Corbin Russwin ED4400 and ED5400 are Grade 1 devices listed as exit only, accepts trim, and the Corbin Russwin ED7400 is a Grade 1 narrow stile crossbar device that accepts operator trim.
10) Will a Sargent 12-8710 work as a drop-in replacement for an Arrow S1150?
No. The Arrow S1150 is a functioning exit only device with top and bottom bolts, 1/2 inch throw top and 3/4 inch throw bottom. The Sargent 12-8710 is a wide stile surface vertical rod device with a dummy function, so it provides the push rail appearance without latching. For an active exit, look at the Sargent 2727 or 3727, both Grade 1 exit only wide stile devices.
11) Do I need to specify handing for the Arrow S1150?
No handing to call out. The S1150 is reversible, so one device covers left and right hand openings. That's useful for property managers stocking a spare for a building with doors swinging both ways.
12) Can the Arrow S1150 be dogged down to hold the door in push-pull during business hours?
Yes. Allen-type key dogging is standard on the S1150, with cylinder dogging available as an option. Note that dogging is not permitted on fire rated openings, so if you order the F prefix fire version, plan on the device latching at all times.
13) Is the Arrow S1150 Grade 1 and ADA compliant?
Certified to ANSI/BHMA A156.3 Grade 1 and BHMA certified, and it meets ANSI A117.1 accessibility code. It's a commercial-duty device, which matters for schools, healthcare and government specs that call out Grade 1 exit hardware.
14) What is a comparable Grade 1 surface vertical rod exit device if the Arrow S1150 isn't right for my opening?
Several equivalents. The Von Duprin 2227-3FT is a wide stile Grade 1 non-handed device for 36 inch doors, 1-3/4 inch thickness. The Falcon 25-V-EO is another wide stile Grade 1 exit-only unit at 36 inches. If you need a device that accepts outside trim rather than exit only, the Corbin Russwin ED5400 is a Grade 1 wide stile vertical rod listed as exit only, accepts trim.
15) What is the difference between the Arrow S1150 and the Orca OED56 vertical rod device?
Both are exit only surface vertical rod devices for 1-3/4 inch doors and neither is fire rated. The Arrow S1150 uses top and bottom bolts, brass, with 1/2 inch top and 3/4 inch bottom throw. The Orca OED56 Series is a standard duty device supplied less bottom rod in an aluminum finish and is non-handed, so it latches at the head only.
16) Is there a lighter duty or Grade 2 alternative to the Arrow S1150 for a low traffic exit?
The Arrow S1150 is certified to ANSI/BHMA A156.3 Grade 1. Where Grade 2 is acceptable, the Dexter ED2000 Series is a Grade 2 surface vertical rod panic device and the TownSteel TS5100 Series is a Grade 2 heavy duty wide stile surface vertical rod device. Design Hardware also splits its line by duty: the 2000V is standard duty and the 1000V is heavy duty, both surface vertical rod.
17) Which surface vertical rod devices are reversible like the Arrow S1150?
The Arrow S1150 rail is reversible, so one device covers either hand. Among other surface vertical rod devices, the BEST Precision 5201 Series is listed as reversible, the Sargent 2727 is reversible, and the Von Duprin 2227-3FT is non-handed.
18) What finishes does the Arrow S1150 48 inch exit device come in?
Three painted finishes: aluminum, dark bronze and light bronze. All three are painted rather than plated, which is typical for storefront and back-of-house openings where you're matching existing aluminum or bronze doors.
19) What are the Arrow S1150 parts made of?
Chassis and cover are non-ferrous alloy with metal end caps, the rail assembly is steel, and both the top and bottom bolts are brass. Brass bolts resist galling against the strikes on a high-cycle opening.
20) The Arrow S1150 comes in a 48 inch size - what do the comparable vertical rod devices cover?
The Arrow S1150 48 inch device is offered in aluminum painted, dark bronze painted, and light bronze painted, with the rail furnished for doors up to 36 inches and cut down to 32 inches when needed. Most comparable surface vertical rod devices are catalogued at 36 inch or 3 ft rail lengths, such as the Von Duprin 2227-3FT, Falcon 20 Series 36 inch, and BEST Precision 2201 Series 36 inch, while the Adams Rite 8100 and 3100 Series are listed at 30 inches and the Design Hardware 1000V and 2000V at 33 inches.
