dormakaba L1000 vs Schlage ND: Cylindrical Lock Comparison Guide

By ZenSupply Locksmith Desk · Reviewed by ZenSupply technical staff · Last updated June 17, 2026

What is the dormakaba L1000 cylindrical lock?

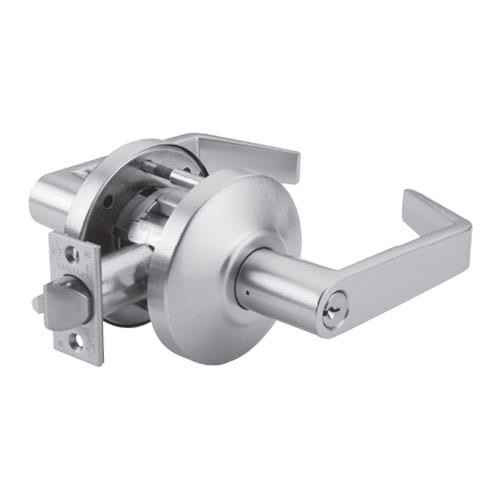

The dormakaba L1000 is a Grade 1 cylindrical lever lock in the Series 1000 family, built for institutional and commercial openings. It uses a standard 161 door prep, 2-3/4" backset, and a chassis-and-rose trim architecture comparable to the commercial cylindrical lever locks spec'd by most architects.

It's a direct competitor to the Schlage ND, SARGENT 10 Line, BEST 9K, and Corbin Russwin CL3300. dormakaba positions the L1000 as the value Grade 1 — same ANSI rating, lower list price tier than the entrenched specs.

How does the dormakaba L1000 compare to the Schlage ND Series?

Both are Grade 1 cylindrical levers tested to A156.2 with the same 800,000-cycle operational threshold. The Schlage ND has held the spec crown for high-traffic openings for decades — it's the default on most institutional specs because locksmiths and integrators have ND parts on the truck and in the warehouse.

The L1000 is engineered to drop into the same 161 prep without modification, which is the whole point: dormakaba is targeting retrofits where the spec calls for ND but the budget doesn't allow it. Internally the chassis differs — clutch mechanism, spring cage, and lever return springs are not parts-compatible with ND.

Where ND wins: parts availability, restricted keyway ecosystem (Everest, Primus), and field familiarity. Where L1000 wins: list price, dormakaba/Kaba/BEST keyway integration, and shorter lead times on standard configurations.

Choose dormakaba L1000 when:

• The facility already runs on a dormakaba, Kaba, or BEST master key system
• Budget pressure on a multi-opening project pushes the spec to value Grade 1
• You need broad lever and finish options without paying Schlage list
• The opening is institutional retrofit with a 161 prep already in place

Choose Schlage ND when:

• The building is already keyed Schlage Classic, Everest, or Primus
• The opening sees abusive traffic — schools, hospitals, transit, corrections
• You want fastest parts availability for service calls (chassis, springs, latches)
• Spec language explicitly calls Schlage ND or "equal" and you don't want a substitution fight

Choose Schlage ALX (Grade 2) when:

• The opening is light commercial — tenant offices, small retail, back-of-house
• You need cylindrical lever performance but the spec is Grade 2
• Budget is the deciding factor and ND is overkill
• The customer already runs Schlage residential/light commercial keying

Is the dormakaba L1000 ANSI Grade 1?

Yes. The L1000 is certified to ANSI/BHMA A156.2 Grade 1, the same operational standard as Schlage ND, SARGENT 10 Line, and BEST 9K. Grade 1 cylindrical locks per A156.2 require 800,000 cycles minimum. Grade 2 requires 400,000, Grade 3 requires 200,000.

Cycle marketing claims like "10 million cycles tested life" from any manufacturer refer to tested durability, not the BHMA grade threshold. For spec compliance, the 800,000 number is what matters — and both L1000 and ND meet or exceed it. Browse Grade 1 mechanical locks by certification.

Need cylindrical levers now? Browse our cylindrical lever lock inventory — Grade 1 and Grade 2 in stock with same-week ship on standard finishes.

What lever and trim styles are available on the L1000?

The L1000 ships with the Sparta, Rhodes-style, and Cortina lever families across the standard ANSI/BHMA architectural finish range (BHMA 626 (US26D) satin chrome is the institutional default, plus 605, 612, 613, 619, and 630). Trim is a sectional rose configuration.

The Schlage ND counters with Sparta, Rhodes, Athens, Tubular, and Omega levers — see the cylindrical knob and lever trim selection. Both manufacturers offer ADA-compliant lever returns; under ADA 2010 §404.2.7, levers must operate without tight grasping, pinching, or twisting — both lines qualify.

What keying options does the L1000 support?

The L1000 supports conventional 6-pin cylinders, SFIC (small format interchangeable core), and LFIC (large format interchangeable core). It integrates cleanly into dormakaba, Kaba, and BEST master key systems, and accepts BEST-style SFIC cores directly.

The Schlage ND accepts Schlage conventional C, Everest 29, and Primus XP restricted keyways, plus SFIC and full-size (LFIC) cores. If the building is on a Schlage restricted system — common in K-12 and healthcare — the ND is the spec-compatible path. Shop lock cylinders and keying accessories for cross-platform builds.

Which is better for high-traffic commercial openings: L1000 or ND?

For pure abuse tolerance — corridor doors in a high school, ED entrances, transit terminals — the Schlage ND has the longer field track record. Its chassis and clutch design have been refined over decades of warranty data, and the parts pipeline through every distributor means service downtime is hours, not weeks.

The L1000 will perform to Grade 1 spec, but on the very highest-abuse openings most institutional locksmiths still default to ND or SARGENT 10 Line. For tier-two high-traffic openings — office building corridors, university classrooms, multi-family common doors — the L1000 holds up and saves budget.

What ANSI functions does each line offer?

Both lines cover the full Grade 1 cylindrical function set: passage, privacy, entry/office, classroom, storeroom, institutional, and dummy trim. Key Schlage codes from the verified catalog:

• Schlage ND10S — passage
• Schlage ND40S — privacy
• Schlage ND53PD — entry/office
• Schlage ND70PD — classroom

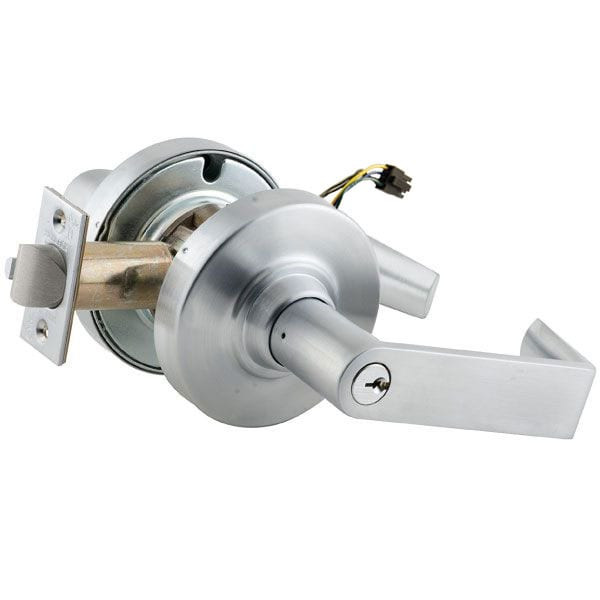

• Schlage ND80PD — storeroom (always-locked outside, free egress inside)
• Schlage ND82PD — institutional

L1000 mirrors these in the dormakaba function numbering. For openings that need a separate auxiliary deadbolt, pair with commercial deadbolt companions — tested per A156.5 Grade 1.

Installation, prep, and retrofit considerations

Both locks use the ANSI 161 door prep: 2-1/8" cross-bore, 1" edge bore, 2-3/4" backset standard (2-3/8" available), 1" deadlatch faceplate. If you're swapping ND for L1000 or vice versa on an existing 161 prep, the door doesn't get touched.

Strike plates differ in latch throw geometry but both ship with ANSI 4-7/8" T-strikes. Verify strike plate alignment after swap — and stock matching strike plates for retrofit jobs.

Pricing, lead time, and warranty

The L1000 sits at a meaningful value tier below the ND list. SARGENT 10 Line and BEST 9K price between the two. Lead times on standard finishes (BHMA 626) and standard functions run shorter on L1000; specialty finishes and restricted keyways extend any of these lines.

Manufacturer warranty terms apply on both — verify against current published warranty before specifying. For replacement chassis, levers, and latches, see commercial lock parts and accessories.

Which to spec: L1000 vs ND decision guide

Default to Schlage ND when the facility is already a Schlage shop, when traffic is in the top quartile of abuse, or when spec language locks you to Schlage or equal and substitution fights waste billable hours.

Default to dormakaba L1000 when the keying platform is dormakaba/Kaba/BEST, when the budget on a 100+ opening project demands value Grade 1, or when you want broad finish/lever options without Schlage premium. For openings that may go electronic later, plan ahead with electrified lock alternatives in the same prep.

How L1000 compares to ND and the rest of the Grade 1 cylindrical field

SARGENT 10 Line is the other entrenched institutional default alongside ND — same Grade 1 cycle threshold, similar abuse tolerance, common in federal and university work. BEST 9K dominates SFIC-keyed facilities (hospitals, school districts) because BEST cores ship native. Corbin Russwin CL3300 and Yale 5400LN round out the spec-equivalent field; Falcon T Series is Allegion's value alternative, similar positioning to L1000.

Head-to-head, ND wins parts ubiquity, L1000 wins price, SARGENT wins federal/institutional spec inertia, BEST wins SFIC-native facilities. All four meet the A156.2 Grade 1 800,000-cycle threshold.

Brand/Series	BHMA Grade	Cycle Rating	Best For	List Price Tier
dormakaba L1000	Grade 1	800,000 minimum per A156.2	Value Grade 1 retrofit, dormakaba/BEST keyed facilities	Mid
Schlage ND80PD	Grade 1	800,000 minimum per A156.2	High-abuse institutional storeroom function	High
Schlage ND53PD	Grade 1	800,000 minimum per A156.2	Office and entry function on Schlage keyed buildings	High
Schlage ND70PD	Grade 1	800,000 minimum per A156.2	K-12 and university classroom function	High
Schlage ALX53	Grade 2	400,000 minimum per A156.2	Light commercial entry, tenant offices	Value
Schlage ALX80 Athens	Grade 2	400,000 minimum per A156.2	Light commercial storeroom, multi-family back-of-house	Value

Ready to spec? Shop dormakaba L1000 and Schlage ND cylindrical lever locks — Grade 1 and Grade 2 in stock with locksmith-friendly fulfillment.
