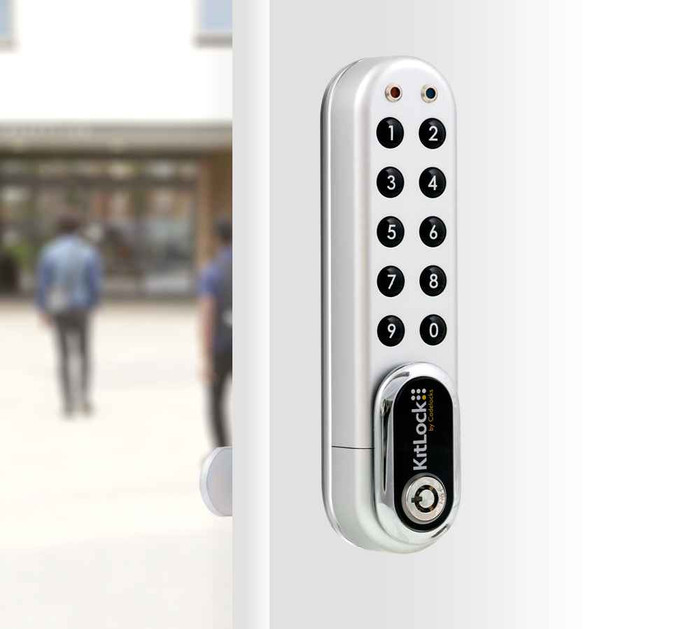

KL1000 G3 NetCode® KitLock Locker Lock
The KL1000 G3 NetCode® is a compact digital lock offering NetCode® technology, key override, front battery change, 24hr countdown timer1 and up to 20 User Codes.
Applying advanced technology to our core products.
Introducing the KL1000 G3 NetCode® designed through the evolution of our best-selling KitLock, the KL1000. Boasting popular features from the KL1000 Classic+ including 20 User Codes, 24hr countdown timer1 and introducing key override. The KL1000 G3 NetCode® has key override and front battery change capabilities, providing ease of use and peace of mind. The updated chrome effect back panel and handle finishes reflect their surroundings giving the lock a slimmer, more subtle aesthetic.
This compact digital lock is ideal for replacing keyed cam locks commonly supplied on a wide range of lockers, cabinets and cupboards. Sharing the same fittings & fixings as the KL1000 Classic this lock is easily retrofitted, ideal for upgrading existing installations.
Key Features
- Date/time specific code generation
- Send generated codes via email or SMS2
- No WiFi connection required
- Easy install or retrofit
- Front battery change
- Key Override
- Battery Override
- Private, Public + NetCode® Functions
- Up to 20 User Codes
- Auto-unlock after a set time
Technical Specs
- Battery Override - A 9 volt PP3 battery can be placed against external contacts
- Brand - KitLock by Codelocks
- Buttons - 2 x 5 + Programming
- Code Change Method - Keypad (On Door)
- Codes - 8-digit Master and Sub-Master Code, 6-digit Technician Code, 20 4-digit User Codes
- Countdown Timer - Open after X hours
- Door Thickness - Ready to fit doors up to 1" (25mm)
- Finish - Silver Chrome
- Function - Private, Public, NetCode®
- IP Rating - IP54 when fitted with gasket (IP55 available for special order)
- Latch Type - Cam, Slam Latch
- Lock Dimensions - 5 3⁄8" (136mm) x 11⁄16" (28mm) x 15⁄16" (33mm)
- Lock Material - Mixed Plastic and Alloy
- Low Battery Warning - Red LED will flash on opening to indicate low battery
- Memory - Non-volatile memory will be retained
- NetCode® - Available via the App or online Portal
- Operations - Up to 100,000 operations per 2 x AAA batteries
- Orientation - Vertical
- Power - 2x AAA
- Spindle - Fitted with 15⁄16" (24mm) spindle as standard, optional 3⁄8" (10mm) and 11⁄8" (29mm) spindles supplied
- Suitable For - Internal, External
- User Levels - Master, Sub Master, Technician, User
- User Types - Code, NetCode®
Downloads and Documentations
Manufacturer Resources
Product Specs
- Category:
- Cabinet Hardware
- Product Group:
- Cabinet Hardware
- Series:
- KL1000 G3 Series
- Model:
- CL-KL1000G3
- Product Subgroup:
- Cabinet Latches and Locks
- Product Type:
- Locker Locks
- Subcategory:
- NetCode
- Commercial/Residential:
- Commercial
- Function:
- Private, Public
- Latch Type:
- Cam, Slam Latch
- Substrate:
- Mixed Plastic and Alloy
- Orientation:
- Vertical, Left Hand Horizontal, Right Hand Horizontal
