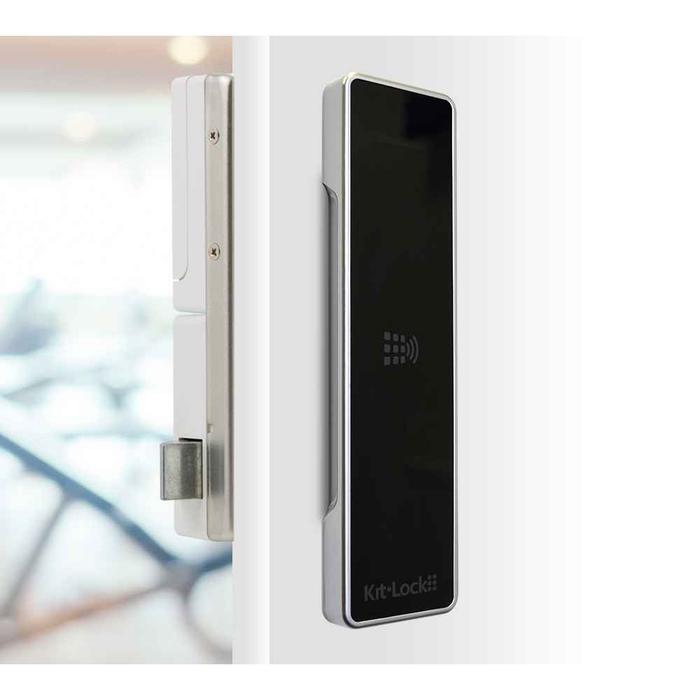

KL1100 RFID KitLock Locker Lock

Featuring a stylish, slimline front plate the KL1100 RFID gives any environment a modern, contemporary feel.

Choose between offline or cloud based software options to configure your locks and cards. The KL1100 RFID is perfect for applications with a large quantity of lockers that would benefit from issuing and managing Card Clients from reception desks, for example, gyms, leisure centres, hospitals, hotels, schools and universities.

The KL1100 RFID is easy to install, operate and manage, featuring a powered latch enabling intuitive ‘push shut’ closing. Available in a Metallic Silver or Gloss Black finish.

Key Features

  • Master Card
  • Technician Card
  • Standalone Mode
  • RCA (Remote Card Authorisation) Mode via offline or cloud based software

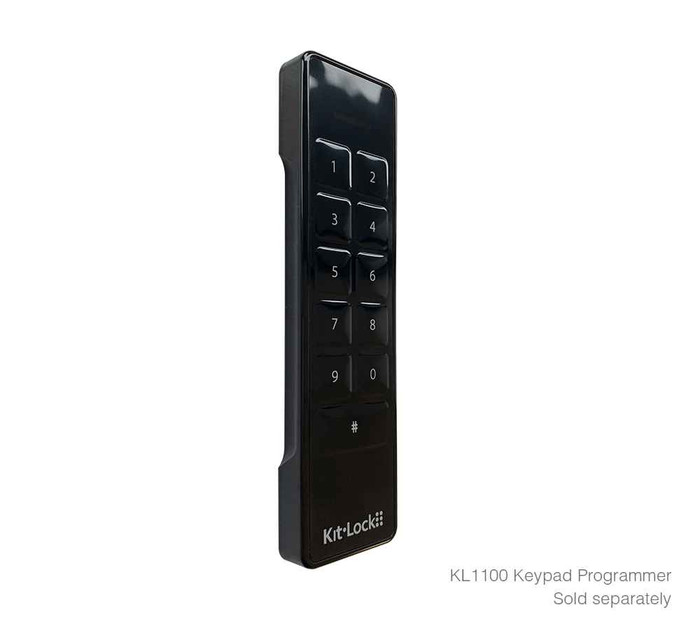

  • Local management via plug-in Keypad Programmer (sold separately)
  • Date and time based features
  • Powered latch
  • Battery override
  • Override code
  • MIFARE® Classic 1k compatible cards, fobs or wristbands can be used
  • Optional pull handle available for compliance with the Americans with Disabilities Act (ADA) (sold separately)

Technical Specs

  • Battery Override - Connect to 5V micro USB power source for temporary power
  • Brand - KitLock by Codelocks
  • Clients – Smart Cards - Master, Technician, User, Initialisation, Block and Audit - Supports MIFARE® Classic 1k
  • Door Thickness - Ready to fit doors up to 1" (25mm)
  • Finish - Gloss Black, Metallic Silver
  • Function - Private, Public
  • IP Rating - IP55 when fitted with gasket
  • Latch Type - Powered Latch
  • Lock Dimensions - 5 3⁄4" (H) x 1 1⁄2" (W) x 1⁄2" (D)
  • Lock Material - Mixed Plastic and Alloy
  • Low Battery Warning - Red LED will flash 3 times before unlocking
  • Memory - Non-volatile memory - programming will be retained
  • Operations - Up to 100,000 operations
  • Orientation - Vertical, Left Handed, Right Handed
  • Power - 4 x 1.5 volt AA batteries (supplied)
  • Suitable For - Internal
  • User Types - Card

Downloads and Documentations

Manufacturer Resources

Product Specs

Product Group:
Cabinet Hardware
Series:
KL1100 Series
Product Subgroup:
Cabinet Latches and Locks
Product Type:
Locker Locks
Subcategory:
Electronic KitLocks
Commercial/Residential:
Commercial
Orientation:
Vertical
Orientation:
Vertical, Left Hand Horizontal, Right Hand Horizontal
Electronic:
Yes
Product Attribute:
Electronic Locks
Product Model:
KL1100
Product Function:
Private, Public
Product Dimension:
5 3⁄4" (H) x 1 1⁄2" (W) x 1⁄2" (D)
Latch Type Specification:
Powered Latch
Product Category:
Electronic Locks
Product Substrate:
Mixed Plastic and Alloy
Department:
Door Hardware

Codelocks KL1100 GB RFID – Frequently Asked Questions

1) Should I get the RFID card version or the keypad version of the KL1100?
Both front plate options exist on the KL1100. Go RFID if you want to issue and manage credentials centrally, for example a gym or leisure centre handing out cards, fobs or wristbands at a reception desk; it reads MIFARE Classic 1k credentials and supports Remote Card Authorisation through offline or cloud software. Go keypad (KPD) if you would rather users set or be given a code and you do not want to stock and replace physical credentials. Either plate comes in Gloss Black or Metallic Silver.
2) Can the KL1100 locker lock be used in a public gym where different people use the same locker each day?
Yes. It runs in both Private and Public function. Public mode suits day-use lockers where a different person takes the locker each visit, while Private mode assigns a locker to one user long term, as in a staff room or student locker. Date and time based features let you set operation to your facility hours.
3) What happens if the batteries die while someone's belongings are locked inside?
Two ways out. The lock takes temporary power from a 5V micro USB source so you can connect a power bank at the front and open it, and there is an override code plus a Master Card for management access. Before it gets that far, a red LED flashes three times before unlocking as a low battery warning. Programming sits in non-volatile memory, so a battery change does not wipe your card or code setup.
4) Can I use the Codelocks KL1100 on outdoor lockers or in a wet pool area?
It is rated for internal use only, so do not put it on exterior lockers. It does carry an IP55 rating when fitted with the gasket, which covers dust and splashing in a humid changing room or poolside locker room, but that is not the same as an outdoor-rated lock.
5) What else do I need to order with the KL1100 to finish the job?
The lock ships with its batteries, but three things are sold separately and often needed. The plug-in Keypad Programmer is what you use for local management at the lock. The pull handle is the option to add where the locker has to comply with the Americans with Disabilities Act. And for the RFID version you need MIFARE Classic 1k cards, fobs or wristbands for your users, plus the offline or cloud software if you want to manage credentials from a reception desk rather than run the lock standalone.
6) Does the KL1100 KitLock need to be wired in?
No wiring. It runs on 4 x 1.5 volt AA batteries, which are supplied, and it is rated for up to 100,000 operations. That makes it a straight retrofit onto an existing locker bank with no cabling back to a panel, which is the usual reason facilities pick it over a networked locker system.
7) Do users have to turn a knob to lock the KL1100, or does it latch on its own?
It uses a powered latch with push-shut closing, so the user just pushes the door and it secures. There is no knob to turn and nothing for a member to forget, which is the main reason it gets specified for high-turnover day lockers where staff otherwise spend the shift closing doors properly.
8) What card types does the KL1100 RFID support, and can I run it without software?
Credentials are MIFARE Classic 1k, in card, fob or wristband form. Client types are Master, Technician, User, Initialisation, Block and Audit. You can run it in Standalone Mode with no software at all, using the Master and Technician cards at the lock, or in RCA (Remote Card Authorisation) mode through the offline or cloud based software when you want to issue and cancel cards from a desk.
9) Is the KL1100 KitLock tough enough for a school or hospital locker bank?
It is a commercial-rated locker lock built from mixed plastic and alloy with a slimline front plate, rated for up to 100,000 operations. Codelocks positions it for gyms, leisure centres, hospitals, hotels, schools and universities, specifically where there is a large quantity of lockers to manage. For a facility standardizing across hundreds of doors, the same lock covers vertical and both horizontal orientations, so you buy one part number for the whole bank.
