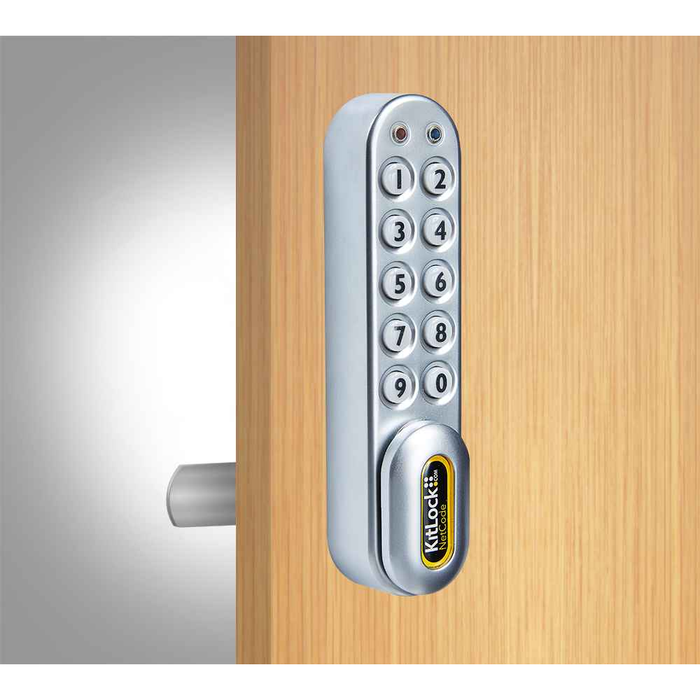

KL1000 NetCode® KitLock Locker Lock
The KL1000 NetCode® provides the smart way to generate time-sensitive codes for a wide range of lockers and cabinets.
NetCode® is the smart way to generate time-sensitive codes for a wide range of lockers and cabinets.
Through the online Codelocks Connect Portal or via the Codelocks simple API (application programming interface), you can create codes that have a specified start date, time and duration. Once the duration expires, the codes no longer work. Using time-sensitive codes is a more secure way to grant access as the code will not work outside a designated timeslot. Issue codes to visiting service engineers, delivery personnel (drop boxes), and medium-term locker rental. Generated codes can be sent by email or SMS.
Key Features
- No wired or wireless communication required
- Create codes for short, medium and long-term
- Web-based NetCode® generation
- Send generated codes via email or SMS**
- Three modes of operation
- Five types of NetCode®
- Additional NetCode® features
- 15,000 operations from 2 x AAA batteries
- 11 button keypad
- Master Code
- Sub-Master Code
- User Code
- Technician Code
- NetCode®
- Battery override
- Easy to install and set up
- IP55 rated when fitted with gasket
- Not suitable for a Chlorine environment
- All parts / fixings / templates included
- Two year guarantee
Technical Specs
- Battery Override - A 9 volt PP3 battery can be placed against external contacts
- Brand - KitLock by Codelocks
- Buttons - 2 x 5 + Programming
- Code Change Method - Keypad (On Door)
- Door Thickness - Ready to fit doors up to 1" (25mm)
- Finish - Silver Grey
- Function - Private, Public, NetCode®
- Handed - Non Handed
- Hinge Type - Standard
- Keypad - 11 individual round buttons
- Latch Type - Cam
- Lock Dimensions - 5 3⁄8" (136mm) x 11⁄16" (28mm) x 15⁄16" (33mm)
- Lock Material - Zinc Alloy
- Low Battery Warning - Red LED will flash 3 times before unlocking
- Memory - Non-volatile memory will be retained
- NetCode® - Standard (Multi Use), Standard (Single Use), Rental 365, Rental 1 - 21 Days
- Operations - Up to 15,000 operations per 2 x AAA batteries
- Orientation - Vertical
- Power - 2x AAA
- Suitable For - Internal, External
- User Levels - Master, Sub Master, Technician, User
- User Types - Code, NetCode®
Downloads and Documentations
- KL1000 NetCode® Brochure
- KL1000 Documentation
- KL1000 NetCode® Fact Sheet
- Programming & Operating Instructions (KL1060)
- New Feature Introduction (KL1060C2)
- Programming & Operating Instructions (KL1060C2)
- Keypad Rotation
- Switching NetCode® Modes
- Getting Started Installation Instructions and Quick Start Guide
Manufacturer Resources
Product Specs
- Category:
- Cabinet Hardware
- Product Group:
- Cabinet Hardware
- Series:
- KL1000 Netcode Series
- Model:
- KL1000NC
- Product Subgroup:
- Cabinet Latches and Locks
- Product Type:
- Locker Locks
- Subcategory:
- NetCode
- Commercial/Residential:
- Commercial
- Finish:
- Silver Grey
- Orientation:
- Vertical
- Function:
- Private, Public, NetCode®
- Handed:
- Non Handed
- Substrate:
- Zinc Alloy
- Latch Type:
- Cam
