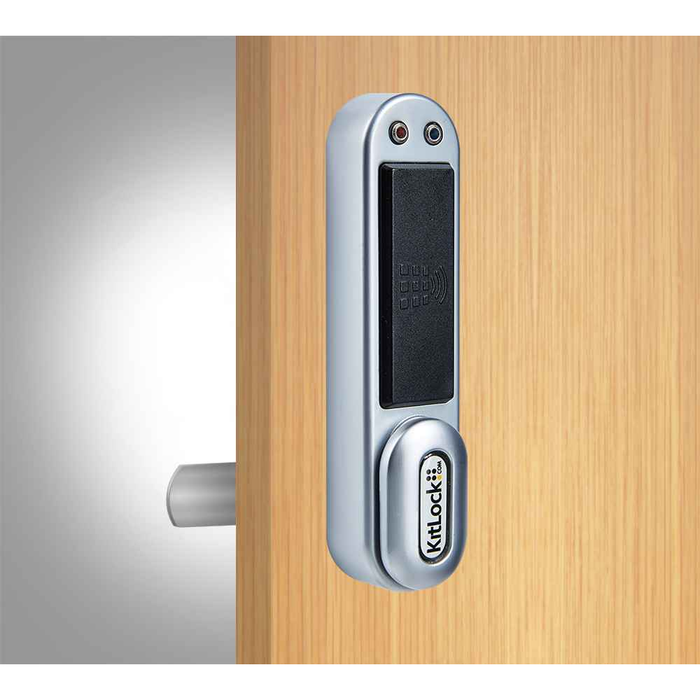

Codelocks KL1000 RFID Kitlock Locker Lock, Silver Gray Finish

KL1000 RFID Kitlock Locker Lock

The KL1000 RFID is a simple, smart card KitLock providing codeless and keyless access to lockers, cabinets, cupboards and enclosures.

The KL1000 RFID KitLock offers functions for single users (Private Function) and short term use by multiple users (Public Function). The KL1000 RFID can be easily fitted to replace an existing cam lock, or to fit to a new locker or cabinet that does not have an existing locking device. The lock will perform up to 15,000 openings on just two AAA batteries.

Key Features

• Previously known as the KL1050
• Supports MIFARE® Classic
• Master User Card
• Technician Card
• Public Pairing Feature
• Any orientation
• Up to 15,000 operations from 2 x AAA batteries (supplied)
• Battery override
• Slam latch accessory available
• All parts / fixings / templates included

Technical Specs

• Battery Override - A 9 volt PP3 battery can be placed against external contacts
• Brand - KitLock by Codelocks
• Door Thickness - Ready to fit doors up to 1" (25mm)
• Finish - Silver Grey, Black
• Handed - Non handed
• Latch Type - Cam
• Lock Dimensions - 5 ³⁄₈" (136mm) x ¹¹⁄₁₆" (28mm) x ¹⁵⁄₁₆" (33mm)
• Lock Material - Zinc Alloy
• Low Battery Warning - Red LED will flash on opening to indicate low battery
• Memory - Non-volatile memory will be retained
• Operations - Up to 15,000 opening per 2 x 1.5 AAA batteries
• Orientation - Vertical, Left Handed, Right Handed
• Power - 2x AAA
• Suitable For - Internal
• User Levels - Master, Technician
• User Types - Card

Downloads and Documentations

• KL1000 RFID Brochure
• KL1000 Documentation
• Installation Template
• Installation Instructions
• Programming & Operating Instructions
• Slam Latch Installation Instructions
