Columbia CLT LED Center Lens Troffer – Adjustable Output & Color, High Efficiency, Ultra-Low Profile
Model: COL-CLT-LSCS
Construction
Low-profile design is ideal for shallow plenum applications
Luminaire housing is die-formed code-gauge steel
Matte white paint for soft, uniform illumination
Optics
...
Columbia
$69.79
Columbia CBT LED Flat Panel – Adjustable Output & Color, High CRI, Dimmable, IC Rated
Model: COL-CBT-LSCS
Description
The Columbia Lighting CBT-LSCS Series is a versatile and efficient LED center basket troffer designed to meet a wide range of commercial and institutional lighting needs. Available in...
Columbia
$67.21
Columbia 4' Adjustable LED Narrow Wrap – Tunable Output & Color, High CRI, Dimmable
Model: COL-CNW
CNW attractive narrow wrap with decorative end caps and a polished look, suitable for many applications. A tradeSELECT offering is available, featuring a frosted acrylic lens and efficacy up to 112...
Columbia
$74.29
Columbia 4' Adjustable LED Striplight – Soft Frosted Lens, Tunable Brightness & Color
Model: COL-CSL
<!--td {border: 1px solid #cccccc;}br {mso-data-placement:same-cell;}-->
CSL LED lens striplight tradeSELECT offering brings together an economical price and high performance. Available with...
Columbia
$80.36
Columbia 4' LED Wrap Fixture – Adjustable Brightness & Color Temperature, DLC® Listed
Model: COL-CWP
CWP efficient 4' LED wrap style fixture that provides an economical tradeSELECT solution for exceptional light distribution in general areas.
Optics
Frosted acrylic lens
Installation
Fully...
Columbia
$111.86
<!--td {border: 1px solid #cccccc;}br {mso-data-placement:same-cell;}--><!--td {border: 1px solid #cccccc;}br {mso-data-placement:same-cell;}-->

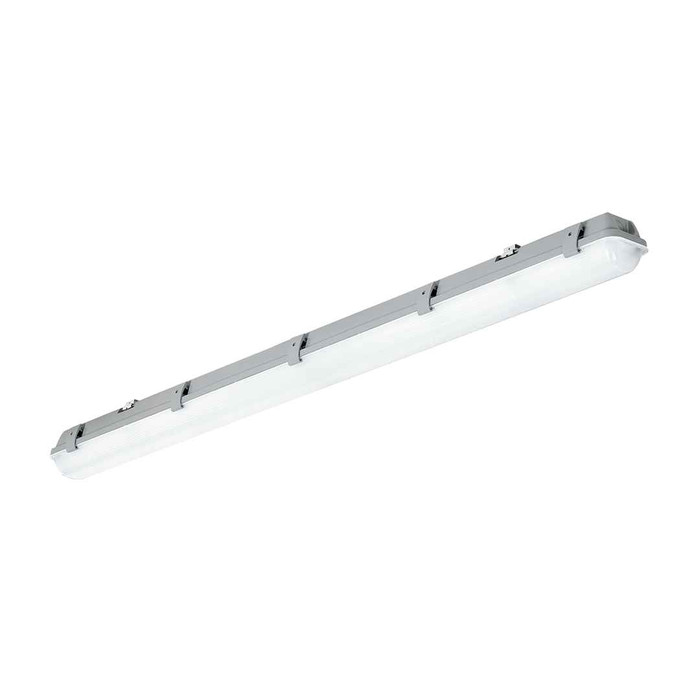

CVT is a narrow body linear vapor tight offering Switchable lumen output and CCT technology
Construction
- Durable, UL 5VA polycarbonate housing; suitable for through-wiring applications
- Stainless steel latches provide strong, corrosion-resistant closure that meets NSF criteria
- Includes sealed conduit adapter for ½" conduit on one end, with a knockout on the other if access is required
Optics
- Frosted polycarbonate lens designed for optimal illumination and high-impact durability
Installation
- Installation hardware included for both surface mounting (pair of surface mount brackets) and suspended mounting (pair of V brackets)
- Cables or chains for suspension not included
- Conduit entry with internal wiring access (refer to installation instructions for details)
Electrical
- Long-life LEDs rated at L70 > 100,000 hours
- 0–10V dimming to 10%
- Operates at 120–347V input
- Switchable Lumen and Switchable CCT technology allow easy field adjustment via three-level switches located on gear tray
- Fixture ships preset to highest lumen output and most popular CCT setting: 5000K
Certifications
- Built to UL 1598 wet location standards with IP65 rating
- Complies with LM79, LM80, and TM21 industry standards
- DLC® Qualified
- Meets NSF 2 Food Equipment standards for non-food and splash zones
- NEMA 250 Type 4X rated
Manufacturer Resources
Spec Sheet
Product Specs
- Application:
- Parking Garages, Stairwells, Utility Areas, Canopies
- CCT Options:
- 3500K / 4000K / 5000K (Field-Selectable)
- CRI:
- 80+
- Certifications:
- DLC Premium, UL Wet Location
- Dimming:
- 0-10V
- Efficacy:
- Up to 148 LPW
- Fixture Type:
- Linear Vaportite
- Lens Type:
- Diffused Polycarbonate
- Lumen Output:
- 3,200 / 4,000 / 5,000 lm (Field-Selectable)
- Mounting:
- Surface, Suspended, or Pendant
- Voltage:
- 120-277V
- Warranty:
- 5-Year Limited Warranty
- Product Group:
- Indoor Lighting
- Product Subgroup:
- Commercial Lighting
