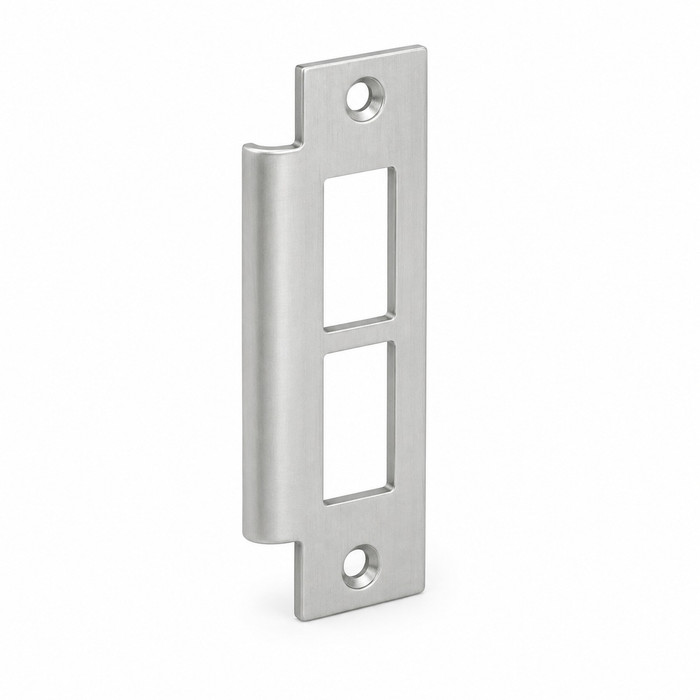

Corbin Russwin 405L ED7000 1-1/8" Lip Length Mortise Strike for ED7600

Corbin Russwin 405L Grade 1 ED7000 1-1/8" Lip Length Mortise Strike for ED7600

(No reviews yet) Write a Review

Model: 405L14-8-018-689
$66.37
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$66.37
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Corbin Russwin 405L Mortise Strike with 1-1/8" Lip Length for ED6000, ED6600 and ED6600A Exit Devices

Commercial-Grade Straight Lip ANSI Mortise Strike for Stainless Steel Exit Devices

The Corbin Russwin 405L is a professional-grade mortise strike engineered for compatibility with the ED6000, ED6600, and ED6600A exit device series, including Stainless Steel Exit Devices. Featuring a 1-1/8" lip length and a strike size of 4-7/8" x 1-1/4", this Straight Lip ANSI Strike is designed for use with 1-3/4" doors, making it a reliable solution for commercial and institutional door hardware applications. Standard on ED6600 and ED6600A configurations, it delivers consistent, dependable performance in demanding environments.

Professional Features & Benefits

  • Heavy-duty cold-forged steel chassis with electroplated corrosion resistance
  • Latchbolt: stainless steel pullman-type, 3/4" (19mm) throw with deadlocking auxiliary latch
  • Non-handed device (except double cylinder and lever trim which are handed)
  • Standard bar length 36" (fits 30"–36" doors); easily field cut; optional 24" or 48"
  • Standard single-point 1/4-turn hex key dogging on panic devices
  • Free Wheeling levers for vandal resistance on trim
  • SecureBolt® option (ED5200S): deadbolt-style latchbolt resists unauthorized entry
  • Electrified options including delayed egress, electric latch retraction, and electric dogging
  • UL-listed panic and 3-hour fire exit hardware; NFPA 101 and NFPA 80 compliant
  • Full range of trim with Muséo® and Vineyard™ collections
  • ADA compliant — lever trims and pulls comply with Americans with Disabilities Act
  • PathLite™ photoluminescent touchpad cover option available
  • Five-year limited warranty; ED5800 CVR certified to 3.25 million cycles

Technical Specifications

  • Grade: ANSI/BHMA A156.3 Grade 1
  • Handing: Non-handed standard (lever trim and double cylinder devices are handed)
  • Bar Length: 36" standard (fits 30"–36" doors); optional 24" or 48"
  • Door Thickness: 1-3/4" (44mm) standard; optional 2" (D200) or 2-1/4" (D214)
  • Minimum Stile Width: 4-1/2" (114mm)
  • Latchbolt — Rim (ED5200): Stainless steel pullman-type, 3/4" (19mm) throw with deadlocking auxiliary latch
  • Latchbolt — SecureBolt® (ED5200S): Deadbolt-style, 3/4" (19mm) projection x 1" wide, positive deadlocking by auxiliary bolt
  • Latchbolt — SVR (ED5400): Top: 3/4" throw pullman-type deadlocking; Bottom: 5/8" throw deadbolt
  • Projection: 3-1/4" (83mm) active; 2-3/4" (70mm) dogged
  • Dogging: Single-point 1/4-turn hex key; optional cylinder or electric dogging
  • Strike: Surface-mounted 3/8" roller strike with positive locking plate and shims
  • Certifications: ANSI A156.3 Grade 1; UL/cUL panic and 3-hour fire exit hardware; NFPA 101; NFPA 80; ADA; California State Fire Marshal approved
  • Warranty: Five-year limited

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Choose Corbin Russwin Quality?

Corbin Russwin door hardware components are built to ANSI/BHMA Grade 1 standards, reflecting a commitment to high-quality commercial and institutional hardware across mortise locks, exit devices, and related accessories. The 405L Mortise Strike is engineered to integrate seamlessly with the ED6000, ED6600, and ED6600A exit device series, delivering consistent latch engagement and long-term reliability. For commercial and institutional facilities where dependable performance and code-compliant hardware are essential, Corbin Russwin provides the professional-grade quality required.

Product Specs

Product Group:
Lock Parts and Accessories
Product Subgroup:
Parts and Accessories
Product Type:
Strikes
Commercial/Residential:
Commercial
Subcategory:
Parts and Accessories
Product Category:
Mechanical Locks
For Use With:
ED6000; ED6600 and ED6600A
Product Function:
Mortise Strike
Strike Classification:
Straight Lip ANSI Strike
Department:
Door Hardware

Corbin Russwin 405L14-8-018-689 – Frequently Asked Questions

1) Which Corbin Russwin exit devices does the 405L mortise strike work with?
The 405L is the mortise strike for the Corbin Russwin ED6000, ED6600 and ED6600A exit device series, including the stainless steel versions. On ED6600 and ED6600A configurations it is the standard strike, so it is the like-for-like part when you are replacing a damaged or missing strike on those openings.
2) Do I have to order the 405L strike handed?
Yes. The 405L comes in Left Hand Reverse and Right Hand Reverse, so you need to know which way the door swings before ordering. On an outswinging door with a rim exit device, stand outside the opening: hinges on the right is right hand reverse, hinges on the left is left hand reverse. Ordering the wrong hand puts the lip on the wrong side of the frame.
3) What is the lip length and frame cutout size of the Corbin Russwin 405L strike?
Lip length is 1-1/8 inches, and the strike body measures 4-7/8 x 1-1/4 inches, which is the standard ANSI strike footprint. That means it drops into an existing ANSI-prepped frame cutout. The 1-1/8 inch lip is what carries the latch past the frame face, so check that your frame rabbet and door clearance match before you swap in a different lip length.
4) Is this a straight lip or curved lip strike?
Straight lip. The 405L is classified as a Straight Lip ANSI Strike, which is what you want on a standard flush frame where the latch approaches square to the strike face. Curved lip strikes are for openings where the latch needs guiding over a raised or offset frame edge.
5) What finishes is the Corbin Russwin 405L strike available in?
Two: 689 Anodized Aluminum and 690 Dark Bronze, both offered in Left Hand Reverse and Right Hand Reverse. If you are standardizing a run of doors, 689 matches aluminum storefront and clear-anodized exit devices, 690 matches dark bronze storefront hardware.
6) Is the 405L strike acceptable on a fire rated opening in a school or hospital?
The 405L is a Grade 1 commercial strike built to ANSI/BHMA A156.3 and is the factory strike for the ED6600 and ED6600A exit devices. To keep a fire rated opening compliant, use the manufacturer's specified strike for the device that is on the door, which is what the 405L is for those series. It is a commercial, not residential, component and is used in education, healthcare, government and multi-tenant buildings.
7) Does the 405L come with the shims and mounting plate, or do I need anything else?
The 405L is sold as the mortise strike itself, in the handing and finish you select. It is a frame-mounted ANSI strike, so you are reusing the existing frame prep and screws in a replacement job; if the frame was never prepped, the 4-7/8 x 1-1/4 inch ANSI cutout has to be made first.
