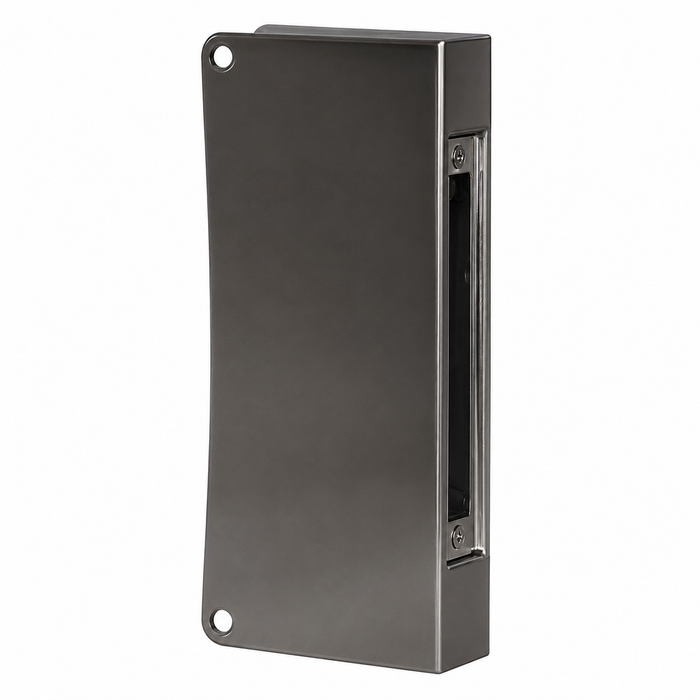

Don-Jo 504 CW Wrap Around Plate 4-1/2" x 12" for 1-3/4" Doors with Mortise Lock Prep

Don-Jo 504 CW Wrap Around Plate 4-1/2" x 12" for 1-3/4" Doors with Mortise Lock Prep

(1 review) Write a Review

Model: 504-S-CW
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$44.00
$25.87
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Don-Jo 504 CW Wrap Around Plate 4-1/2" x 12" for 1-3/4" Doors with Mortise Lock Prep

The Don-Jo 504 CW is a commercial-grade wrap around plate measuring 4-1/2" x 12" (5-1/8" width x 12" height overall) designed specifically for 1-3/4" door thickness applications. Engineered to accommodate mortise lock preparations with a mortise latch prep cutout, this wrap around provides a clean, professional finish while reinforcing the door around the lock area. Constructed from 22-gauge (.032) steel, it is available in multiple finishes to suit a variety of commercial door hardware installations.

Key Features

  • Precise Dimensions: Measures 4-1/2" x 12" (5-1/8" width x 12" height) to provide comprehensive coverage around the lock area on commercial doors.
  • Door Thickness Compatibility: Designed for 1-3/4" door thickness, the most common standard in commercial door applications.
  • Mortise Lock Preparation: Features a mortise hole and mortise latch prep cutout, ensuring precise alignment with mortise lock hardware.
  • 22-Gauge Steel Construction: Fabricated from 22-gauge (.032) steel for durable, long-lasting performance in commercial environments.
  • Multiple Finish Options: Available in 10B (613), PB (605), and S (630) finishes to coordinate with existing door hardware and architectural requirements.
  • Commercial-Grade Quality: Rated for commercial use, making it suitable for high-traffic door applications in a wide range of facilities.
  • Convenient Shelf Pack: Sold individually (shelf pack of 1) for straightforward procurement and inventory management.

Technical Specifications

  • Subcategory: Wrap Arounds
  • Product Group: Door Trim and Accessories
  • Product Subgroup: Filler Plates, Lock Adapters and Wrap Arounds
  • Product Type: Wrap Arounds
  • Commercial/Residential: Commercial
  • Product Category: Door Trim and Accessories
  • Department: Door Hardware

Typical Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Don-Jo 504 CW?

Don-Jo wrap around plates are engineered to deliver reliable, professional-grade door reinforcement using 22-gauge (.032) steel construction built for the demands of commercial environments. The 504 CW's precise mortise lock prep and compatibility with 1-3/4" doors make it a dependable solution for installers seeking a clean, code-appropriate finish on commercial door hardware projects.

Manufacturer Resources

DON-JO Wrap-Around Plates

Product Specs

Subcategory:
Wrap Arounds
Product Group:
Door Trim and Accessories
Product Subgroup:
Filler Plates, Lock Adapters and Wrap Arounds
Product Type:
Wrap Arounds
Commercial/Residential:
Commercial
Door Width:
1-3/4"
Product Model:
504 CW
Product Category:
Door Trim and Accessories
Department:
Door Hardware

Don-Jo 504-S-CW – Frequently Asked Questions

1) Will a Don-Jo 504 CW wrap around plate cover the chewed up area around a mortise lock?
That is exactly the job it does. The 504 CW is cut with a mortise hole and a mortise latch prep cutout, so it goes on over an existing mortise lock rather than requiring you to pull the lock or re-prep the door. The plate is 4-1/2 x 12 inches, 5-1/8 inches wide by 12 inches high overall, which puts steel well above and below the lock case where the worn paint, old screw holes, and gouging usually sit. It is a 1-3/4 inch door part.
2) Will the Don-Jo 504 CW wrap around fit a 1-3/8 inch door?
No. The 504 CW is built for 1-3/4 inch door thickness only, which is the standard commercial thickness. If you are working on a 1-3/8 inch door, the common older interior thickness, you need a wrap around made for that thickness instead. Thickness and lock prep are what select this plate, so any 1-3/4 inch door carrying a mortise lock is the right candidate.
3) Can I use a Don-Jo 504 CW on a door with a knob or lever lockset?
Not this one. The 504 CW is cut for a mortise lock, with a mortise hole and a mortise latch prep cutout in the face. A knob or lever set is a bored cylindrical lock running through a 2-1/8 inch cross bore, and there is no 2-1/8 inch hole in this plate to line up with it. For a bored door, look for a wrap around cut for a 2-1/8 inch bore. Check the edge of your door first: a mortise lock shows a tall rectangular case behind a long faceplate, a cylindrical lock shows a small round latch face.
4) What is the difference between a wrap around plate and a flat scar or filler plate?
A wrap around like the Don-Jo 504 CW bends around the lock edge of the door so it covers the face and the edge in one piece, which is why its overall width, 5-1/8 inches, runs past the 4-1/2 x 12 inch plate size. A flat scar or filler plate only sits on one face and leaves the edge showing. Use the wrap when the damage runs to the edge of the door or when you want the lock area of an old door tied together and covered without replacing the door. Use a flat plate when you are only filling a hole in the face.
5) Do I have to specify a size or handing when ordering the Don-Jo 504 CW, or just a finish?
Finish is the only choice. The 504 CW comes one way: 4-1/2 x 12 inches, cut for mortise lock prep, for 1-3/4 inch doors. Pick from 10B Oil Rubbed Bronze, BZ Satin Bronze, PB Polished Brass, or S Satin Stainless and that completes the order. If your door is a different thickness or carries a bored lock, this is not the model to adjust, it is a different part number.
6) What finishes does the Don-Jo 504 CW wrap around come in, and which one matches my existing lever hardware?
Four: 10B Oil Rubbed Bronze, BZ Satin Bronze, PB Polished Brass, and S Satin Stainless. Match the plate to whatever is already on the door rather than to the door itself, since the wrap sits directly behind the lever rose or the mortise trim. Satin Stainless is the usual pairing with the brushed chrome and stainless trim on most commercial openings, Polished Brass with older bright brass builds, and the two bronzes with darker aged hardware.
7) How wide does the lock stile need to be for a 504 CW wrap around plate?
Measure before you order. The 504 CW plate is 4-1/2 x 12 inches with an overall 5-1/8 inch width and 12 inch height, so the lock stile has to carry that width cleanly without the plate running into a glass stop, a vision lite frame, or a panel bead. On a standard flush commercial door it is a non-issue. On a narrow stile aluminum door or a stile-and-rail wood door with a lite next to the lock, hold a tape on the stile first.
8) Is 22-gauge steel heavy enough for a wrap around plate on a high traffic door?
The 504 CW is 22-gauge, .032 inch, steel and is rated for commercial use, which is the normal weight for this kind of cover plate on office, school, and healthcare openings. Understand what it does and does not do: it covers and stiffens the door face around the lock area and takes the day to day abuse off the wood or the hollow metal skin. It is not a security reinforcer and it will not stop a forced entry attempt on its own. For that you want a strike reinforcer or a latch guard working with it.
9) I need Don-Jo 504 CW wrap arounds for a run of doors in one building. Are they sold each or by the box?
Each. The 504 CW ships as a shelf pack of one, so order one per door and the count on your PO is the count of openings you are fixing. Since the part is a single size for 1-3/4 inch doors with mortise prep, a whole floor of matching openings takes the same line item, just multiply the quantity and hold one finish across the building so the doors read the same.
10) Can I standardize on one wrap around plate across a facility with mortise locks on every door?
Yes, as long as those doors are 1-3/4 inches thick and carry a mortise lock. The Don-Jo 504 CW is one size, 4-1/2 x 12 inches, so there is nothing to spec door by door beyond the finish, which makes it straightforward to carry on a stockroom shelf and hand to maintenance. Doors in the same building with bored cylindrical locks, or anything thinner than 1-3/4 inches, fall outside it and need a different plate.
