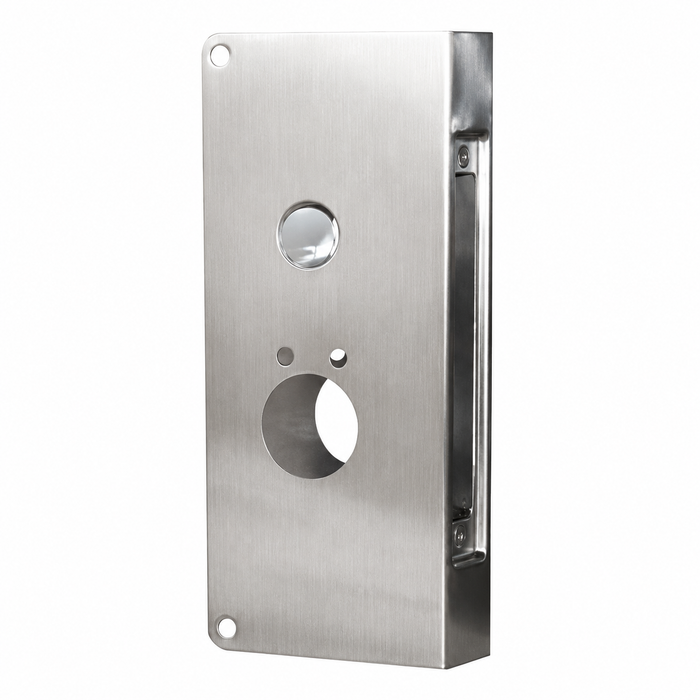

Don-Jo 518-CW Wrap Around Plate 5-1/8" x 12" for 1-3/4" Doors with 2-3/4" Backset, Schlage Cobra Compatible

Don-Jo 518-CW Wrap Around Plate 5-1/8" x 12" for 1-3/4" Doors with 2-3/4" Backset, Schlage Cobra Compatible

(No reviews yet) Write a Review

Model: 518-PB-CW
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$103.50
$89.32
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Don-Jo 518-CW Wrap Around Plate 5-1/8" x 12" for 1-3/4" Doors with 2-3/4" Backset

The Don-Jo 518-CW is a commercial-grade wrap around plate measuring 5-1/8" wide by 12" tall, engineered for 1-3/4" door sizes with a 2-3/4" backset. Constructed from 22-gauge (.032) steel, this wrap around is designed to work with Schlage Cobra locks and features a hole for electronic lock applications, along with a latch prep indent for clean, professional installations. Available in multiple finishes including 10B (613), PB (605), and S (630) to match a variety of door hardware configurations.

Key Features

  • Precise Dimensions: Measures 5-1/8" wide by 12" tall, purpose-built for 1-3/4" door sizes to ensure a secure, flush fit.
  • Correct Backset Compatibility: Designed for a 2-3/4" backset, ensuring proper alignment with standard commercial door lock preparations.
  • Schlage Cobra Lock Compatibility: Specifically engineered to work with Schlage Cobra locks, providing a reliable and compatible solution for commercial door hardware upgrades.
  • Electronic Lock Ready: Features a dedicated hole for electronic lock installations, supporting modern access control integration.
  • Latch Prep Indent: Includes a latch prep indent for a clean, professional finish and accurate latch alignment during installation.
  • 22-Gauge Steel Construction: Fabricated from 22-gauge (.032) steel for durable, long-lasting performance in commercial door applications.
  • Multiple Finish Options: Available in 10B (613), PB (605), and S (630) finishes to coordinate with existing door hardware and architectural aesthetics.

Technical Specifications

  • Subcategory: Wrap Arounds
  • Product Group: Door Trim and Accessories
  • Product Subgroup: Filler Plates, Lock Adapters and Wrap Arounds
  • Product Type: Wrap Arounds
  • Commercial/Residential: Commercial
  • Product Category: Door Trim and Accessories
  • Department: Door Hardware

Typical Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Don-Jo 518-CW?

Don-Jo wrap around plates are built to commercial standards, with the 518-CW offering 22-gauge (.032) steel construction and precise dimensional engineering for 1-3/4" doors with a 2-3/4" backset. Its compatibility with Schlage Cobra locks and built-in electronic lock hole make it a versatile, professional-grade solution for demanding commercial door hardware installations where accuracy and durability are essential.

Manufacturer Resources

DON-JO Wrap-Around Plates

Product Specs

Subcategory:
Wrap Arounds
Product Group:
Door Trim and Accessories
Product Subgroup:
Filler Plates, Lock Adapters and Wrap Arounds
Product Type:
Wrap Arounds
Commercial/Residential:
Commercial
Door Width:
1-3/4"
Product Model:
518 CW
Product Category:
Door Trim and Accessories
Backset (Distance):
2-3/4"
Department:
Door Hardware

Don-Jo 518-PB-CW – Frequently Asked Questions

1) Does the Don-Jo 518-CW work with a Schlage Cobra lock?
Yes, the 518-CW is the Cobra-prepped version. The hole pattern is cut for Schlage Cobra locks and it includes a hole for the electronic lock side of the application, so an access control unit mounts through the plate rather than forcing you to trim it on site.
2) How do I know if I need the 2-3/4 inch backset wrap around or a different one?
Measure from the edge of the door to the center of the lock bore. If that's 2-3/4 inches, the 518-CW lines up. If it measures 2-3/8 inches, the holes in this plate will sit off the lock and you need the 2-3/8 inch backset version instead. Backset is the single thing that decides whether a wrap around drops on or gets thrown away.
3) What is a wrap around plate and when do I need one instead of a flat filler plate?
A wrap around plate is a formed steel plate that bends around the edge of the door and covers both faces at the lock, so it hides chewed-up wood, old bore holes, or pry damage and reinforces the lock area at the same time. A flat plate only covers one face and does nothing for the door edge. The 518-CW covers a 12 inch tall band at the lock on a 1-3/4 inch door, and it carries a latch prep indent so the latch face still seats flat in the edge of the door.
4) Can I use a wrap around plate to cover up damage around an electronic lock on a school or office door?
That is the common use for the 518-CW. It is a commercial-grade wrap, 22-gauge (.032) steel, that goes over the beat-up lock area on a 1-3/4 inch door and restores a clean face without replacing the door. Because it has the electronic lock hole and the Cobra prep already punched, the access control hardware goes back on over it.
5) What finishes does the Don-Jo 518-CW wrap around come in?
Two orderable finishes on the 518-CW: PB polished brass (605) and S satin stainless (630). Satin stainless is the one that blends with most commercial lever and exit hardware; polished brass matches older brass-trim openings. Pick to match what is already on the adjacent doors, since the plate sits at eye level on the lock.
6) Is 22-gauge steel heavy enough for a wrap around on a high-traffic door?
22-gauge (.032) steel is the standard commercial weight for a wrap around, and the 518-CW uses it. The plate's job is to cover and stiffen the lock area, not to be a security plate on its own. On openings taking real abuse, the wrap plus the door's own lock reinforcement is what carries the load. It's rated commercial, not residential.
