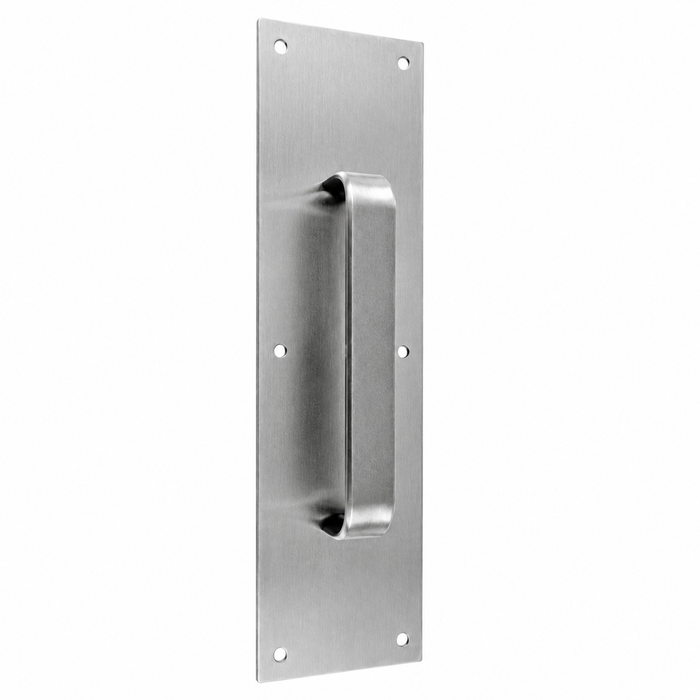

Don-Jo 7137 Pull Plate 16" Length x 4" Width with 2" Projection and 1-1/2" Clearance

Don-Jo 7137 Pull Plate 16" Length x 4" Width with 2" Projection and 1-1/2" Clearance

(No reviews yet) Write a Review

Model: 7137-630
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$94.60
$83.09
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Don-Jo 7137 Pull Plate 16" Length x 4" Width with 2" Projection and 1-1/2" Clearance

The Don-Jo 7137 Pull Plate is a commercial-grade door pull plate engineered for professional door hardware applications. Measuring 16" in length and 4" in width, this pull plate features a 2" projection, 1-1/2" clearance, a 6" center-to-center (CTC) spacing, and a 1" half round diameter grip, delivering a secure and ergonomic pull experience. Conforming to ANSI J405 standards, the 7137 is available in multiple finishes including 605, 613, and 630 to complement a wide range of commercial door aesthetics.

Key Features

  • Generous Plate Dimensions: 16" length and 4" width provide a substantial mounting surface suitable for commercial door applications.
  • Comfortable Grip Geometry: 2" projection and 1-1/2" clearance allow for a natural, comfortable hand position when pulling the door.
  • Precise Center-to-Center Spacing: 6" CTC measurement ensures straightforward alignment and installation on standard commercial door preparations.
  • 1" Half Round Grip Profile: The 1" half round diameter provides a smooth, ergonomic pull surface for high-traffic use.
  • Multiple Finish Options: Available in finishes 605, 613, and 630 to coordinate with existing door hardware and architectural design requirements.
  • ANSI J405 Compliant: Meets ANSI J405 standards, ensuring compatibility and quality assurance for commercial installations.
  • Commercial-Grade Construction: Designed and rated for commercial use, making it suitable for demanding, high-traffic environments.

Certifications & Compliance

  • ANSI J405 Compliant
  • Commercial Grade

Technical Specifications

  • Product Group: Door Trim and Accessories
  • Subcategory: Pulls and Push Plates
  • Product Subgroup: Door Pulls, Push and Pull Plates
  • Product Type: Push and Pull Plates
  • Commercial/Residential: Commercial
  • Product Category: Door Trim and Accessories
  • Department: Door Hardware

Typical Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Don-Jo 7137?

Don-Jo 7137 Pull Plates are built to commercial-grade standards, conforming to ANSI J405 and offering a robust 16" x 4" profile with a 1" half round grip rated for demanding, high-traffic door applications. Engineered for professional installations where consistent performance and lasting durability are essential, the 7137 delivers reliable function across a broad range of commercial environments.

Product Specs

Product Group:
Door Trim and Accessories
Subcategory:
Pulls and Push Plates
Product Subgroup:
Door Pulls, Push and Pull Plates
Product Type:
Push and Pull Plates
Commercial/Residential:
Commercial
Product Model:
7137
Product Category:
Door Trim and Accessories
Department:
Door Hardware

Don-Jo 7137-630 – Frequently Asked Questions

1) Is the Don-Jo 7137 pull plate ANSI compliant for a commercial spec?
It conforms to ANSI J405, which is the pull plate designation, and it is a commercial-rated product rather than a residential one. That is the line item to reference if your drawings call out a J405 pull plate.
2) What else could I use instead of the Don-Jo 7137 if I need a different center-to-center or a heavier pull?
For the same half round grip at the same 6 inch CTC, the Trimco 1014 Series is the direct counterpart. If you need wider grip spacing, the Ives 8303 comes in 8 inch or 10 inch center-to-center. Where vandalism or heavy traffic is the concern, the Ives 8302 is a heavy duty plate with through bolt mounting. Trimco 1010 runs 5 inch CTC and 1012 runs 5.5 inch, which is what you want if you are matching an older prep.
3) Can I put a Don-Jo 7137 pull plate on the outside of a door with an exit device?
The 7137 is a general commercial pull plate and is not built as exit device trim. When the opening has an exit device, the outside trim usually has to be the device manufacturer's own - for example the Detex P/PN Series pull plate is made specifically as trim for Detex Value Series exit devices. Use the device-matched pull there and save the 7137 for openings without an exit device.
4) What is the closest match to a Don-Jo 7137 pull plate if I need the same 6 inch center-to-center grip?
The Don-Jo 7137 is a 16 inch by 4 inch pull plate with a 1 inch half round grip on 6 inch centers, 2 inch projection and 1-1/2 inch clearance. The Trimco 1014 Series is the direct counterpart in profile and spacing: it is a half-round pull plate with a 6 inch CTC pull, so the grip geometry and hole spacing line up with the 7137. If the door is already drilled for 6 inch centers, the 1014 is the peer to look at before anything else.
5) My door is drilled for 5 inch centers, not 6 - what pull plate should I use instead of the Don-Jo 7137?
The 7137 grip is on 6 inch centers, so it will not land on a 5 inch prep. The Trimco 1010 Series is a cast pull plate with a 5 inch CTC pull, and the Trimco 1012 and 1013 are cast heavy duty pull plates with a 5.5 inch CTC pull. Match the existing hole spacing rather than redrilling the door face.
6) I need a wider grip spread than the Don-Jo 7137 offers on a heavy entrance door - what are my options?
The 7137 grip is set on 6 inch centers. For a wider spread, the Ives 8303 is a heavy duty pull plate offered with 8 inch or 10 inch center-to-center mounting, and the Ives 8302 is a heavy duty pull plate with through bolt mounting, which is the attachment method typically specified on high-abuse entrances. Both are a step up in grip spread or fastening from the 7137's single-size 6 inch CTC layout.
7) The Don-Jo 7137 is a pull plate - what do I order for the push side of the same opening?
The 7137 is a pull plate, meaning it carries a grip; it has no push-only counterpart in its own model number. For the push side of a matching pair, the Delaney 4 inch by 16 inch push plate series matches the 7137 plate footprint of 16 inches by 4 inches, and the Delaney 3-1/2 inch by 15 inch push plate series is the narrower option. A push plate is a flat plate with no grip and is not a substitute for the 7137 on the pull side.
8) What size is the Don-Jo 7137 pull plate and how far does the handle stick out?
The plate is 16 inches long by 4 inches wide, with a 2 inch projection off the face of the door and 1-1/2 inches of hand clearance behind the grip. That 2 inch projection matters on tight corridors and where the door swings past adjacent hardware, so check it against anything the door passes on the pull side.
9) What finishes does the Don-Jo 7137 pull plate come in, and which one matches my existing hardware?
Three finishes: 605 polished brass, 613 oil rubbed bronze, and 630 satin stainless steel. 630 is the usual match for commercial openings running satin stainless levers, closers and push plates. 605 matches bright brass trim, 613 matches dark bronze.
10) Do I need a push plate on the other side of the door to go with this pull plate?
On a push/pull opening, yes, the pull plate handles the pull side and a push plate protects the push side. The 7137 covers the pull side only. Delaney makes a matching-size 4 inch by 16 inch push plate if you want the same footprint on both faces.
11) Is a Delaney 4 inch by 16 inch pull plate the same size as the Don-Jo 7137?
Yes on the plate footprint. The Don-Jo 7137 plate measures 16 inches long by 4 inches wide, and the Delaney 4 inch by 16 inch pull plate series covers the same plate size. Where they differ is the grip: the 7137 carries a 1 inch half round grip on 6 inch centers with 2 inch projection and 1-1/2 inch clearance. Confirm the Delaney grip spacing against the door prep before treating it as a drop-in.
12) What is the narrower alternative if a 4 inch wide pull plate is too wide for my door stile?
The Don-Jo 7137 plate is 4 inches wide. On a narrow stile the Delaney 3-1/2 inch by 15 inch pull plate series gives you a half inch less width and an inch less length, which can be the difference on a narrow-stile aluminum or glass front door. Measure the flat stile face before ordering either.
13) What pull plate should I choose over the Don-Jo 7137 if the door is a decorative or residential-style entry?
The Don-Jo 7137 is a commercial pull plate in finishes 605 polished brass, 613 oil rubbed bronze and 630 satin stainless steel. For a decorative entry where appearance leads, the Emtek push and pull plate families are the design-oriented route: the Emtek Modern series for a clean contemporary look, the Emtek Knoxville series, and the Emtek Lost Wax Cast Bronze Petal series for an ornamental cast bronze plate. The 7137 stays the choice where the opening is a high-traffic commercial door.
14) For a high-abuse opening like a school corridor, is the Don-Jo 7137 enough or should I step up?
The Don-Jo 7137 is a commercial-grade, ANSI J405 compliant pull plate with a 1 inch half round grip, and educational facilities are among its intended applications. If you want a heavy duty cast body, the Trimco 1010, 1012 and 1013 Series are cast pull plates listed at heavy duty, and the Ives 8302 and 8303 are heavy duty plates with through bolt and 8 or 10 inch CTC mounting respectively. Note the CTC on those peers differs from the 7137's 6 inch spacing, so the door prep changes with the substitution.
15) What is the difference between the Don-Jo 7137 half round grip and a round or tapered pull?
The Don-Jo 7137 uses a 1 inch half round grip with a 2 inch projection and 1-1/2 inch clearance, giving a flat-backed grip profile. The Trimco 1013 is a round pull plate and the Trimco 1012 is a cast tapered pull plate, both on 5.5 inch CTC; the Trimco 1014 is half-round like the 7137 and on 6 inch CTC. Grip profile is a feel and appearance choice, but the CTC difference decides whether it fits the existing prep.
16) Is the grip on the Don-Jo 7137 round or flat?
It's a 1 inch half round grip, so the back is flat against the plate and the gripping face is rounded. With 1-1/2 inches of clearance behind it, a gloved hand still gets through. If you want a fully round bar profile instead, the Trimco 1013 is a round pull plate.
17) Is the Don-Jo 7137 appropriate for a school or hospital corridor door?
It's built for exactly that kind of traffic. Don-Jo lists the 7137 for commercial offices, schools, healthcare, retail, industrial and warehouse buildings, multi-tenant residential, and government facilities. The 16 by 4 inch plate also shields the door face from hand wear at the pull point, which is why these go on high-use corridor doors.
18) Is the Don-Jo 7137 a decorative pull plate or a plain commercial one?
Plain commercial. It's a flat rectangular plate with a half round grip, no ornamentation. If the opening calls for a decorative look, Emtek's Knoxville, Modern, and Petal push and pull plates are the decorative lines to look at instead.
