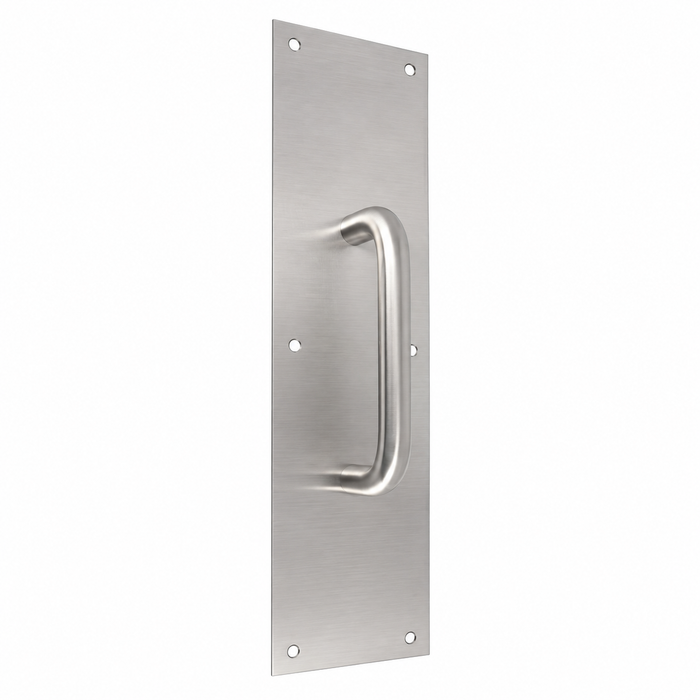

Don-Jo 7816 Pull Plate, 16" x 4" with 2-1/4" Projection and 1-1/2" Clearance

Don-Jo 7816 Pull Plate, 16" x 4" with 2-1/4" Projection and 1-1/2" Clearance

(No reviews yet) Write a Review

Model: 7816-630
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$141.96
$117.37
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Don-Jo 7816 Pull Plate, 16" x 4" with 2-1/4" Projection and 1-1/2" Clearance

The Don-Jo 7816 Pull Plate is a commercial-grade door pull plate engineered for demanding, high-traffic environments. Measuring 16" in length and 4" in width, this pull plate features a 2-1/4" projection, 1-1/2" clearance, an 8" center-to-center (CTC) spacing, and a 3/4" diameter pull bar, delivering a robust and ergonomic grip solution. Finished in 630 satin stainless steel and conforming to ANSI J407 standards, the Don-Jo 7816 is purpose-built for commercial door applications where durability and professional appearance are essential.

Key Features

  • Generous Pull Plate Dimensions: 16" length and 4" width provide a substantial mounting surface suited for commercial-grade doors in high-traffic settings.
  • Precise Projection and Clearance: 2-1/4" projection and 1-1/2" clearance deliver comfortable, ergonomic hand access for a wide range of users.
  • Optimal Center-to-Center Spacing: 8" CTC measurement ensures straightforward, accurate installation aligned with standard door preparation requirements.
  • Sturdy Pull Bar Diameter: 3/4" diameter pull bar offers a solid, confident grip suitable for frequent daily use in commercial environments.
  • 630 Satin Stainless Finish: The 630 finish provides a clean, professional aesthetic with excellent corrosion resistance for long-lasting appearance.
  • ANSI J407 Compliance: Meets ANSI J407 standards, ensuring compatibility and performance consistency across commercial door hardware applications.
  • Commercial-Grade Construction: Designed specifically for commercial use, making it appropriate for offices, schools, healthcare facilities, and other demanding installations.

Certifications & Compliance

  • ANSI J407 Compliant
  • Commercial Grade

Technical Specifications

  • Product Group: Door Trim and Accessories
  • Subcategory: Pulls and Push Plates
  • Product Subgroup: Door Pulls, Push and Pull Plates
  • Product Type: Push and Pull Plates
  • Commercial/Residential: Commercial
  • Product Category: Door Trim and Accessories
  • Department: Door Hardware

Typical Applications

  • Commercial Office Buildings
  • Educational Facilities and Schools
  • Healthcare Institutions and Hospitals
  • Retail Establishments and Storefronts
  • Industrial and Warehouse Facilities
  • Government and Municipal Buildings
  • Multi-Tenant Residential and Mixed-Use Properties

Why Don-Jo 7816?

Don-Jo pull plates are engineered to meet the rigorous demands of commercial door hardware applications, with the 7816 model conforming to ANSI J407 standards and finished in durable 630 satin stainless steel. With precise dimensional specifications — including a 16" x 4" plate, 2-1/4" projection, 1-1/2" clearance, and 3/4" diameter pull — this product delivers consistent, professional-grade performance for installers and building owners who require reliable, code-compliant door trim solutions.

Product Specs

Product Group:
Door Trim and Accessories
Subcategory:
Pulls and Push Plates
Product Subgroup:
Door Pulls, Push and Pull Plates
Product Type:
Push and Pull Plates
Commercial/Residential:
Commercial
Product Model:
7816
Product Category:
Door Trim and Accessories
Department:
Door Hardware

Don-Jo 7816-630 – Frequently Asked Questions

1) Will the Don-Jo 7816 pull plate fit my existing 8 inch center-to-center pull prep?
Yes. The 7816 pull is spaced 8 inches center to center, so it drops onto a door already prepped at 8 inch CTC. The plate itself is 16 inches long by 4 inches wide, so make sure you have at least 4 inches of flat stile face to cover the old fastener holes.
2) Is 4 inches too wide for a narrow stile aluminum storefront door?
Usually, yes. The 7816 plate is 4 inches wide, which needs a wide stile or a flush wood/hollow metal door. Narrow stile aluminum entrances typically run under 2 inches of flat face, so a plate this wide will overhang the glass stop. On those openings use an offset or straight pull without a plate.
3) Does the Don-Jo 7816 meet the ANSI designation called out on my hardware schedule?
The 7816 is built to ANSI J407, the designation for this class of pull plate. If your schedule lists J407 for the pull side of a commercial opening, the 7816 answers it.
4) What are the alternatives to the Don-Jo 7816 if I need a different pull spacing?
The 7816 is fixed at 8 inch CTC. If your door is prepped differently, the Ives 8303 heavy duty pull plate is offered in 8 inch or 10 inch center to center. For shorter spacing, Trimco's 1010 Series is a cast pull plate at 5 inch CTC and the 1012 and 1013 are at 5-1/2 inch CTC. The Ives 8302 is a heavy duty pull plate with through bolt mounting.
5) What is the closest equivalent to a Don-Jo 7816 pull plate in another brand?
The Don-Jo 7816 is a 16 inch by 4 inch pull plate with an 8 inch center-to-center pull, so the closest dimensional match is the Delaney 4 inch by 16 inch door pull plate, which is built on the same 4 x 16 plate size. If the 8 inch CTC is the part that has to match the existing door prep, the Ives 8303 heavy duty pull plate is offered in 8 inch or 10 inch center-to-center mounting, so it can be ordered on the same 8 inch spacing the 7816 uses.
6) I need a pull plate for a door that only has room for a narrower plate than the Don-Jo 7816 - what should I use?
The Don-Jo 7816 plate is 4 inches wide by 16 inches long. Where the stile or glass bead will not take a 4 inch plate, the Delaney 3-1/2 inch by 15 inch door pull plate is a narrower and shorter plate that covers the same job. Note the Delaney pull is on a 15 inch plate rather than 16, so verify it still covers any existing fastener holes or mortise scars on the door.
7) Is a push plate the same thing as the Don-Jo 7816?
No. The Don-Jo 7816 is a pull plate - it has a 3/4 inch diameter pull bar on an 8 inch center-to-center spacing with a 2-1/4 inch projection, so it is mounted on the pull side of the door. A push plate such as the Delaney 4 inch by 16 inch push plate is a flat plate with no bar and is mounted on the swing side. On a single-acting door the two are normally specified as a pair, one on each face, with the Delaney 3-1/2 inch by 15 inch push plate being the narrower push option.
8) Does the Don-Jo 7816 give enough hand clearance for gloved hands?
The pull projects 2-1/4 inches off the plate with 1-1/2 inches of clear space behind the bar, and the bar is 3/4 inch diameter. That is enough room for a gloved hand or a full four-finger grip, which is why it shows up on school, hospital and warehouse doors.
9) What finish does the Don-Jo 7816 pull plate come in?
One finish only: 630, satin stainless steel. If the rest of your openings are 630 push plates, kick plates and hinges, this matches without a special order. There is no bronze or brass option on the 7816.
10) Do I need a matching push plate on the other side of the door?
The 7816 is the pull side only. Standard practice on a push/pull opening is a pull plate on the pull face and a flat push plate on the push face. Delaney offers a 4 inch by 16 inch push plate that matches this plate's footprint, and Delaney also has a 3-1/2 by 15 inch push plate if you want a slightly smaller face.
11) Will a 16 inch pull plate cover the holes left by my old pull?
It depends on where they sit. The 7816 plate face is 16 by 4 inches, so anything inside that footprint disappears behind it. Old fasteners spread wider than 4 inches across the stile, or more than 16 inches apart vertically, will still show. Measure the old hole pattern before you pull the existing hardware.
12) Can I use the Don-Jo 7816 as the pull trim on an exit device?
The Don-Jo 7816 is a standalone 16 inch by 4 inch pull plate for commercial doors, not device-specific trim. If the opening has an exit device and you need a pull that mates to it, the Detex P/PN Series pull plate is made as pull plate trim for Detex Value Series exit devices. Match the trim to the device family rather than substituting a general purpose pull plate.
13) What is the difference between the Don-Jo 7816 and the Trimco 1010 or 1012 pull plates?
The main difference is the pull grip spacing and the pull shape. The Don-Jo 7816 carries a straight 3/4 inch diameter pull on an 8 inch center-to-center spacing. The Trimco 1010 Series cast pull plate uses a 5 inch CTC pull, the Trimco 1012 is a cast tapered pull at 5.5 inch CTC, and the Trimco 1013 is a round pull also at 5.5 inch CTC. All three Trimco models are rated heavy duty. If the door is already drilled for 8 inch centers, the Trimco spacings will not line up with the existing holes.
14) For a high abuse opening, is there a pull plate with a stronger mounting method than the Don-Jo 7816?
For an opening where the pull takes abuse, the Ives 8302 is a heavy duty pull plate specified with through bolt mounting, which carries the pull load through the door rather than into the plate fasteners alone. The Don-Jo 7816 is a commercial grade pull plate with a 3/4 inch diameter pull bar built for high-traffic commercial doors such as schools, hospitals and office buildings. Through bolting requires access to both faces of the door, so confirm the opposite face can accept the fastener heads or a matching push plate.
15) We want a decorative pull plate instead of the satin stainless Don-Jo 7816 - what are the options?
The Don-Jo 7816 is finished in 630 satin stainless steel with a plain commercial appearance and ANSI J407 conformance. For a decorative entrance, Emtek offers push and pull plate sets in the Modern series, the Knoxville series, and the Lost Wax Cast Bronze Petal series. These are styled sets rather than plain commercial trim, so use them where appearance leads and keep the 7816 where the plate has to take steady institutional traffic.
16) Which pull plate gives a flatter profile than the Don-Jo 7816?
The Don-Jo 7816 has a 2-1/4 inch projection and 1-1/2 inch hand clearance behind the pull. Where a door swings close to a return wall or adjacent leaf and that projection is a problem, the Trimco 1014 Series is a half-round pull plate with a 6 inch CTC pull and the Trimco 1012 is a cast tapered pull at 5.5 inch CTC - both are shaped profiles rather than a full round bar. Confirm the clearance you need at the opening before changing the pull grip spacing.
