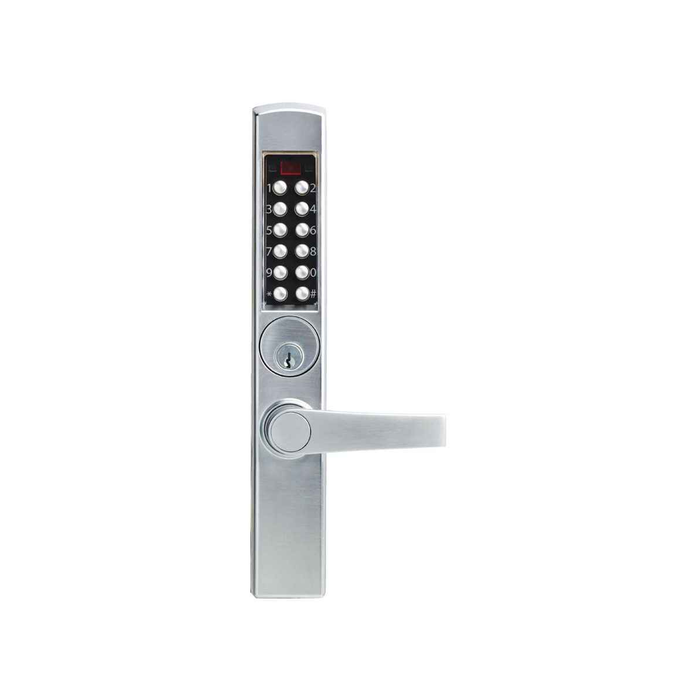

Dormakaba EPlex 3000 Electronic Mortise Lock Set for Adams Rite Deadbolts/Latches

Dormakaba EPlex 3000 Electronic Mortise Lock Set for Adams Rite Deadbolts/Latches

(No reviews yet) Write a Review

Model: E3065MS-NL-626-41
$1,229.00
$774.17
Selected Finish is
Selected Lever/Thumbturn is
Selected Key Override is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$1,229.00
$774.17
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Dormakaba EPlex 3000 Electronic Mortise Lock Set for Adams Rite Deadbolts/Latches

Product Summary

The Kaba EPlex 3000 Series provides exterior access by combination, while allowing free egress. This Dormakaba lock with narrow stile, eliminates problems and costs associated with issuing, controlling, and collecting keys and cards, has up to 300 Access Codes and 9,000 Audit Events.



Product Details

Locking Devices:Retrofits inside trim for Adams Rite locks 1850, 1950, 4070, 4510, 4520, 4530, 4710, 4720, 4730, 4900, 4920AN, MS 1850S, MS 1950S, and 8400 Series (not included). Adapter Kit available for various manufacturers’narrow stile Exit Devices; see accessories section.

Number of Codes:300 access codes per door

Audit Trail:The most recent 9,000 events are recorded in memory, including use of the mechanical key override

Programming: Mortise style smart locks are programmed via keypad or with optional Microsoft Excel-based software—simplifies management of doors and users as facility’s number of users and access points grow

Operation Modes:

  • PIN access
  • Lockout
  • Passage—PIN or key enabled, can be pre-programmed to re-lock after a certain number of hours (from 1 to 24)

Authority Levels:Five different levels allow who has access to specific lock functions, including: Service Codes—programmed for one-time access or "come-and-go" access for 1 to 24 hours

User Parameters:

  • Code length: adjustable to accept 4 to 8 digits
  • Anti-tamper lockout: adjustable from 3 to 9 invalid attempts with an adjustable period of 0 to 90 seconds
  • Re-lock time: adjustable from 2 to 20 seconds

Ease of Installation:No wire installation—eliminates wiring to or through the door—no risk of pinched wires

Technical Details



Construction: Extra heavy-duty lockset, solid cast housing, solid cast lever or thumbturn wear tested for extensive use in indoor and outdoor applications

Handing: Non-handed, easily changed in the field

Backset: 31⁄32" (25 mm) minimum

Minimum Stile Recommended: 2" (51 mm)

Key Override

  • Mortise Cylinder: Mortise Cylinder in Schlage "C" Keyway
  • Interchangeable Cores: Optional Mortise Shell accommodates small format—Best and equivalent (6-pin length)

Door Preparation: Easily installs on narrow stile doors with four mounting screws

Door Thickness: 1¾" (44 mm)

Accessibility Standard: American with Disabilities Act (ADA)

Durability: Designed and fully tested to meet rigid life cycle test and operating reliability per BHMA Grade 1 requirements.

Environmental: Indoor/Outdoor Approved

Front Housing: -31 °F (-35 °C) to 151 °F (66 °C)

Warranty: 3-year warranty from date of installation; built-in warranty counter in lock memory

Standard Finishes:

  • Satin Chrome 26D (626) housings and levers

Optional Finishes:

  • Dark Bronze (744–simulates 10B/613) housings and levers with Satin Brass (606) pushbuttons


Downloads:

Installation Guide

Operations Manual



Manufacturer Resources

Product Specs

Product Group:
Exit Devices and Trim
Series:
E-Plex 3000 Series
Product Type:
Mortise Locks
Keyed Function:
Single Cylinder
Product Subgroup:
Exit Devices Trim
Subcategory:
Push Buttons Locks
Keyed:
Yes
Commercial/Residential:
Commercial
Cylinder and Keyways:
Schlage C keyway standard
Electronic:
Yes
Lock Type:
Mortise
Product Attribute:
Electronic Locks
Tags:
e plex 3000, kaba e plex 3000, kaba e plex, e plex 3000 series
Door Hand Direction:
Field Reversible
Product Category:
Electronic Locks
Product Substrate:
Brass or Bronze
Department:
Door Hardware

Dormakaba E3065MS-NL-626-41 – Frequently Asked Questions

1) Which Adams Rite locks does the Dormakaba E-Plex 3000 retrofit, and do I still need the lock itself?
The E-Plex 3000 replaces the inside trim on an existing Adams Rite lock, so the Adams Rite deadlatch or deadbolt stays in the door and is not supplied with the keypad. It retrofits inside trim for Adams Rite 1850, 1950, 4070, 4510, 4520, 4530, 4710, 4720, 4730, 4900, 4920AN, MS 1850S, MS 1950S and 8400 Series locks. When you order you pick the locking device the trim is set up to drive, either Mortise Dead Latch for Adams Rite or Mortise Deadbolt for Adams Rite, so match that to what is actually in your stile. If the door carries a narrow stile exit device instead of an Adams Rite mortise lock, an adapter kit is offered for various manufacturers' narrow stile exit devices.
2) Should I get the lever or the thumbturn version of the E-Plex 3000?
Both are narrow stile inside trim and both come on every locking device and keyway combination. The narrow stile lever retracts a latch, so it is the one for an Adams Rite deadlatch opening where people push through and leave without touching a key. The narrow stile thumbturn throws and retracts a bolt, which is the pairing for an Adams Rite deadbolt on a door that gets secured at close of business rather than used as a traffic door. Match the trim to the Adams Rite device already in the stile, not to preference.
3) Is a Sargent TR-8200 a like-for-like swap for a Dormakaba E-Plex 3000 mortise lock?
They are both mortise locks and both carry Grade 1 credentials, but they are not interchangeable at the opening. The E-Plex 3000 is the electronic pushbutton unit: exterior access by combination with free egress, up to 300 access codes per door, the most recent 9,000 events held in memory including use of the mechanical key override, and no wiring to or through the door. The Sargent TR-8200 is a heavy duty Grade 1 mortise lock in the 8200 Series with LN round rose trim, so if the codes, authority levels and audit trail need to carry over to the replacement, the E-Plex 3000 is the unit that carries them.
4) Do I have to specify handing for the E-Plex 3000, and can it be flipped in the field?
Handing is not an order decision on the E-Plex 3000. The lock is non-handed and field reversible, so one part number covers left and right hand doors and a stocked unit can go on whichever opening comes up. That matters if you are carrying spares for a portfolio of buildings, since you are stocking one configuration instead of two.
5) Do I need to run power or wire to the door for a Dormakaba E-Plex 3000?
No wiring runs to or through the door. The E-Plex 3000 installs with no wire installation, which is the point of it on a storefront or a remote exterior opening where getting a transfer hinge, a power supply and a conduit path to the frame would be most of the job cost. That also removes the pinched wire failure that shows up on wired electric trim. Four mounting screws through the stile and the lock is on.
6) Can the E-Plex 3000 pushbutton lock go on an exterior door in a cold climate?
It is approved for indoor and outdoor use, and the front housing is rated from -31 F (-35 C) to 151 F (66 C), so a north facing storefront entry in a northern winter or a west elevation in desert heat is inside the operating range. The housing and lever are solid cast and wear tested for extended indoor and outdoor use.
7) How many people can I give codes to on an E-Plex 3000, and can I see who came through the door?
Up to 300 access codes per door, with the most recent 9,000 events held in lock memory, including every use of the mechanical key override. Codes are 4 to 8 digits, set to whatever length your policy calls for. Five authority levels control who can change what at the keypad, and service codes can be issued for one time access or come and go access for 1 to 24 hours, which covers a cleaner, a vendor or a showing without handing out a permanent code. Programming is done at the keypad, or with the optional Microsoft Excel based software when you are managing enough doors and users that keypad programming stops scaling.
8) Can I leave a door on an E-Plex 3000 unlocked during business hours and have it lock itself at night?
Yes. Passage mode is enabled by PIN or by key and can be pre-programmed to re-lock automatically after a set number of hours, anywhere from 1 to 24, so a retail or office entry can be put into passage at open and drop back to code access without anyone returning to the door. There is also a lockout mode to shut the opening down entirely. Re-lock time after a normal code entry is adjustable from 2 to 20 seconds, and anti-tamper lockout can be set from 3 to 9 invalid attempts with a 0 to 90 second penalty period.
9) Is the E-Plex 3000 heavy duty enough for a high traffic commercial entrance, and does it meet ADA?
The E-Plex 3000 is an extra heavy duty lockset designed and fully tested to meet life cycle and operating reliability per BHMA Grade 1 requirements, and it meets the Americans with Disabilities Act accessibility standard. It is a commercial specification lock, with a solid cast housing and solid cast lever or thumbturn. Exterior access is by combination while egress from the inside stays free, so a code failure never traps anyone behind the door.
10) My door is a hollow metal door with a standard mortise prep, not an Adams Rite storefront door. What should I use instead of the E-Plex 3000?
The E-Plex 3000 is narrow stile trim that retrofits an existing Adams Rite mortise lock, so it is the wrong choice for a door prepped for a conventional mortise lock body with rose trim. For that opening the Sargent TR-8200 mortise lock with LN round rose trim is the mortise lockset to look at, listed as Grade 1 heavy duty in the 8200 Series. It is a mechanical mortise lock rather than a keypad, so if you need code access on a wide stile door you are shopping a different electronic platform, not this trim.
11) Can I put an E-Plex 3000 on a narrow stile exit device instead of an Adams Rite mortise lock?
Not directly. The E-Plex 3000 mounts as inside trim for Adams Rite mortise deadlatches and deadbolts, and that is the locking device you select when ordering. To drive a narrow stile exit device with it, an adapter kit is offered covering various manufacturers' narrow stile exit devices, so identify the make and model of the device on the door before ordering the kit alongside the lock.
12) We key the building to Schlage C. Does that survive a move to a code-based lock on the narrow stile door, or do we need to look at a mechanical mortise lock like the Sargent TR-8200?
The key override on the E-Plex 3000 holds a Schlage C keyway, so the building keyway carries onto the narrow stile door without going back to a keyed-only mortise lock. It can also be ordered with a Kaba 90 keyway or with 6/7-pin SFIC prep less core if the facility runs small format interchangeable cores instead, and the optional mortise shell accommodates Best and equivalent 6-pin cores. The Sargent TR-8200 is the heavy duty Grade 1 8200 Series mortise lock with LN round rose trim, which is the direction to go when the opening takes conventional mortise trim rather than a narrow stile retrofit.
13) Our facility standard is Grade 1 mortise hardware. Does the Dormakaba E-Plex 3000 hold the same grade as a Sargent 8200 Series mortise lock?
Yes. The E-Plex 3000 is designed and fully tested to meet life cycle and operating reliability requirements per BHMA Grade 1, and it meets the Americans with Disabilities Act accessibility standard. The Sargent TR-8200 is listed as Grade 1 heavy duty in the 8200 Series. A facility that specifies Grade 1 mortise locks throughout can hold the E-Plex 3000 on the narrow stile openings and the 8200 Series on the openings prepped for round rose trim without breaking the standard.
14) What finishes does the Dormakaba E-Plex 3000 come in, and will it match the other doors in my building?
Two finishes, and both are available on every lever, thumbturn, keyway and locking device combination. 626 satin chrome is the standard build, housing and lever, and it is the finish that lines up with the satin chrome and brushed aluminum hardware already on most storefront and commercial openings. The alternate is 744 dark bronze, which simulates 10B/613, with satin brass 606 pushbuttons for contrast against the dark housing. If the rest of your entrances are dark anodized aluminum, 744 is the closer match.
