DynaLock 5950 Series - Power Supply/Charger, Selectable 12/24VDC Output at 6A Continuous, 8-Zone Distribution Controller with Supervised Fire Alarm Interface

DynaLock 5900 Power Supply

Model 5950 Power Supply/Charger, Selectable 12/24VDC Output at 6A Continuous,
8-Zone Distribution Controller with Supervised Fire Alarm Interface

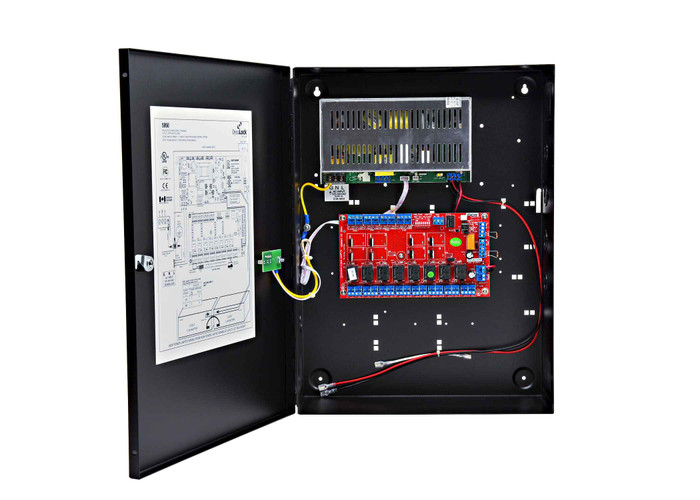

DynaLock 5900 and 5950 Power Supply/Chargers supply a
regulated 12 VDC or 24VDC at 6 Amps nominal continuous
current. They’re housed in hinged, locking steel enclosures
capable of accommodating one or two optional 12AH lead
acid rechargeable standby batteries.
Model 5950 includes a 8-zone power distribution
controlller featuring fused Class 2 outputs individually
rated a 2A each, with selectable fail-safe, fail-secure
power, or isolated dry contact signal operating modes,
supervised access control and fire alarm trigger inputs,
and a cascade facility, allowing controllers from two or
more power supplies to be tied together for simultaneous
fire alarm sequencing.
Models are UL Listed in the US and Canada, CE, FCC and
Industry Canada compliance registered. See page 4 for a
full breakdown of agency listings and registrations.

Features & Specifications
• Input = 120-240 VAC, 50-60Hz at 1.4 Amps Maximum
• Overall Output = 6 Amps Continuous at 12 or 24VDC
• In-Rush Capacity = 20 Amps for up to 100 ms, PF 0.35
at nominal 12/24VDC (5900)
• 8-Zone Distribution Controller with Individual 2 Amp
Rated Lock Outputs and Access Control Inputs (5950)
• Supervised Fire Alarm/Access Control Interface with
Selectable Latching and Reset Input (5950)
• Built-in Temperature Compensated Battery Charger
• 1.5A Maximum Charging Current
• Auto Switchover To Battery Standby Below 72.5 VAC
• Automatic Battery Load Test Every 48 Hours
• Battery Reversal Protection
• Low Battery Indication at 11.4/22.8 Volts
• Automatic Low Battery Disconnect at 10/20.2 Volts
• AC, DC and Battery Status LED’s on Enclosure Door
• AC and Battery Failure CMOS Relay Outputs
• Battery Leads Included
• Key-Locked Enclosure Lid
• Enclosure Size: 13.3”W x 17.6”H x 4.3”D
(338mm x 448mm x 110mm)
• Operating Temperature: 32°F to 120°F (0°C to 49°C)
• Lifetime Warranty
