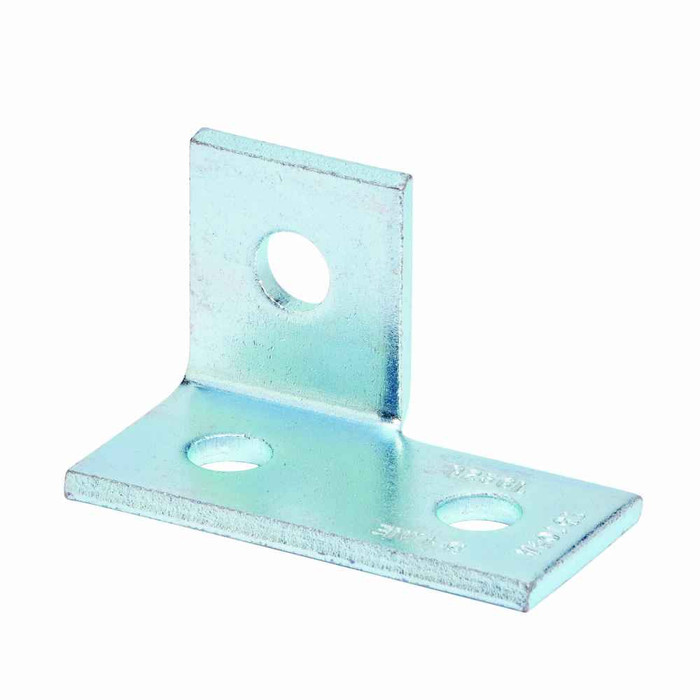

B-Line B236LSS4 Eaton series strut fittings and accessories, 3.5" Height, 2.06" Length, 1.87" Width, .65lbs, Steel, Left hand three hole offset bent angle, 90 deg, Stainless steel type 304

Left hand. The B236LSS4 is a left hand three hole offset bent angle at 90 degrees, so the offset leg breaks to one side only. If your layout mirrors the other way, a left hand piece will not line the holes up where you need them, and you want the right hand version of the same offset bent angle instead. On jobs where you are bracketing both sides of a strut run, order both hands.

It is a steel fitting in a type 304 stainless steel finish, which is what you want for damp, washdown, or exterior strut runs where a plain electro-galvanized fitting would bloom rust. Part number is B236LSS4 from Eaton's B-Line series.

An offset bent angle like the B236LSS4 turns a strut corner at 90 degrees while stepping the connection off the plane of the strut, so the two members can meet where a flat 90 degree angle would leave them fouling each other. The three hole pattern gives you two bolts on one leg and one on the other, or the reverse, depending on how you set it. If your two struts sit flush in the same plane, a standard flat 90 degree angle fitting is the simpler choice.

The B236LSS4 is supplied as the bracket alone. Budget separately for strut nuts and hardware, and in a corrosive or outdoor location match them to the fitting by ordering stainless hardware rather than zinc, otherwise the fasteners corrode first and you lose the benefit of the type 304 stainless finish.
