B-Line Eaton series wireway, 2...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$357.91

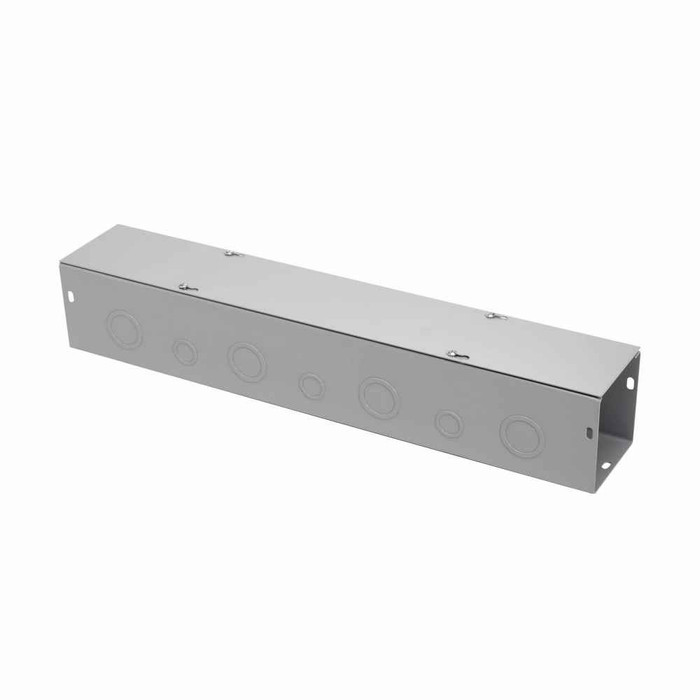

B-Line Eaton series wireway, 2.5" height, 60" length, 2.5" width, GGV wireway, Thru holes, 23 top knockouts, 23 bottom knockouts, Screw cover, 1, Gal

B-Line Eaton series wireway, 2.5" height, 60" length, 2.5" width, GGV wireway, Thru holes, 23 top knockouts, 23 bottom knockouts, Screw cover, 1, Gal

(No reviews yet) Write a Review

Model: 2260 GGV
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$357.91
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
Eaton B-Line series wireway, 2.5" height, 60" length, 2.5" width, GGV wireway, Thru holes, 23 top knockouts, 23 bottom knockouts, Screw cover, NEMA 1, Galvanized steel, Plated screws, Gray, 16 gauge

Manufacturer Resources

Product Specs

Certifications:
CSA Certified
Closure Type:
Plated screws
Finish Color:
Gray
Material Thickness:
16 gauge
Mounting Method:
Thru holes
Product Height:
2.5 in
Product Length Depth:
60 in
Product Weight:
10.686 lb
Product Width:
2.5 in
Special Features:
Cover is secured with plated screws
Department:
Electrical
Product Type:
GGV wireway
Product Details:
GGV wireway

B-LINE 2260 GGV – Frequently Asked Questions

1) Is the Eaton B-Line 2260 GGV wireway rated for outdoor or wet locations?
No. The 2260 GGV is a NEMA 1 enclosure, which is indoor, general purpose only. It gives you protection against incidental contact and falling dirt, not rain, washdown, or dust-tight service. For an outdoor run or a washdown area you need a NEMA 3R or NEMA 4 gasketed wireway instead.
2) How does the cover come off on this B-Line screw cover wireway, and is that a problem for frequent access?
The cover is a screw cover, held on with plated screws along the length. That means every access is a screwdriver job on the full stick. For a feeder gutter or a run you rarely open, that's fine and it keeps the cover positively secured. If you're pulling and re-terminating regularly, a hinged or lay-in cover wireway will save you time.
3) Does the 2260 GGV wireway come with knockouts for conduit entry?
Yes, it is pre-punched with 23 knockouts on the top and 23 on the bottom, so you can land conduit along the run without drilling the trough. There are also thru holes for mounting. If your entries need to come in the ends or sides instead, you'll be punching those yourself in 16 gauge steel.
4) Is the B-Line 2260 GGV wireway approved for use on a job in Canada?
It is CSA Certified, so it carries a Canadian certification mark for submittal purposes on Canadian work. Confirm the section length and NEMA 1 indoor rating suit the location as drawn.
5) Is this B-Line wireway painted steel or galvanized, and will it match gray gutter already installed?
The 2260 GGV is galvanized steel finished in gray with plated screws on the cover, which is the standard ANSI-gray look used on most commercial gutter and panel work. If your existing run is standard gray B-Line or comparable gutter, it will read as a match on the wall.
