Emtek Emtek 1112 Multi Point Lock Trim (Door Config #1) - Sandcast Bronze Plates, Arched Style (1.5" x 11"), Non-Keyed Passage EMTEK-1112

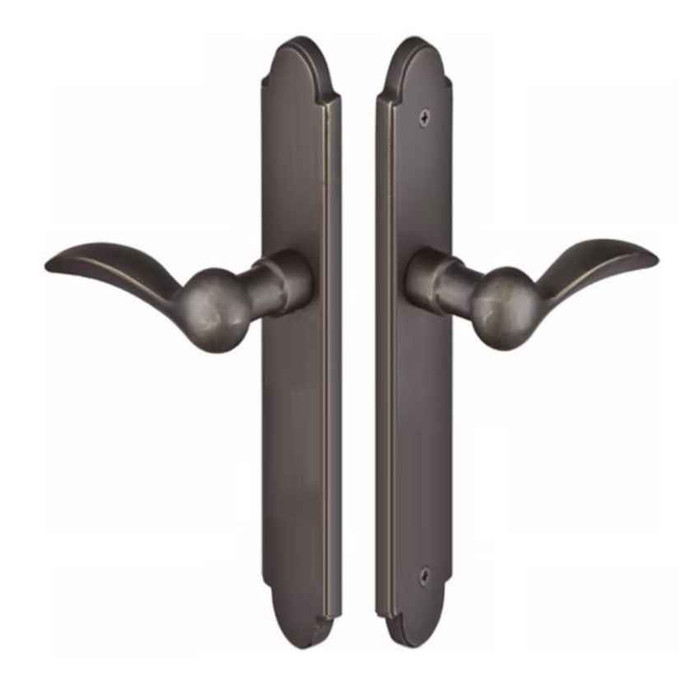

Emtek 1112 Multi Point Lock Trim (Door Config #1) - Sandcast Bronze Plates, Arched Style (1.5" x 11"), Non-Keyed Passage

(No reviews yet) Write a Review

Model: 1112-FB
From the Sandcast Bronze Collection
$424.00
$339.20
Selected Finish is
Selected Lever Style is
Selected Handing is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$424.00
$339.20
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like



Specifications:

  • Backset: Adjustable 2-3/8" or 2-3/4"
  • Cross Bore: 2-1/8"
  • Door Thickness: 1-3/8" to 1-3/4"
  • Latch Faceplate: Round or Square Corner
  • Material: Brass



Emtek 1112 Multi Point Lock Trim (Door Config #1) - Sandcast Bronze Plates, Arched Style (1.5" x 11"), Non-Keyed Passage

  • Can be ordered with any Sandcast Bronze Levers
  • Swinging Patio Door Hardware. Set includes Plates, Handles
  • Multi Point Mortise Lock Box not included. Trims Only
  • Each Multi Point Lock Trim now includes the Spring Assist function which returns the lever to the neutral position and eliminates sagging handles.
Manufacturer Resources

Product Specs

Subcategory:
Multi Point Lock Trim
Product Group:
Mechanical Locks
Commercial/Residential:
Residential
Product Type:
Multi Point Lock Trim
Product Subgroup:
Multi Point Lock Trim
Collection:
Sandcast Bronze
Cylinder Position:
Below Handle
Door Configuration:
#1
Electronic:
No
Keyed:
No
Lock Type:
Multi Point Trim
Ref. Door Manufacturer(s):
Atrium, G-U, KML by Andersen, Andersen, Marvin Integrity, Paddock Lockmaster, Superior
Series:
Arched
Theme:
Rustic Living
Keyed Function:
Non-Keyed
Lock Function:
Passage
MAP Policy:
Yes
Product Model:
1112
(CTC) Center-to-Center:
3-5/8"
Product Function:
Non-Keyed Passage
Product Size:
1-1/2" x 11"
Cylinder Classification:
American
Product Style:
Arched
Product Material:
Bronze
Product Category:
Mechanical Locks
Product Substrate:
Bronze
Department:
Door Hardware

Emtek 1112-FB – Frequently Asked Questions

1) Will Emtek 1112 trim fit my Andersen or Marvin swinging patio door?
Emtek lists the 1112 multi point trim against Atrium, G-U, KML by Andersen, Andersen, Marvin Integrity, Paddock Lockmaster and Superior door systems. It is Door Configuration #1 trim with a 3-5/8 inch center-to-center between the handle and the cylinder position, so match your existing gearbox spacing to that figure before ordering.
2) What door thickness and backset does the Emtek 1112 patio door trim work with?
Doors from 1-3/8 to 1-3/4 inches, with an adjustable backset of 2-3/8 or 2-3/4 inches and a 2-1/8 inch cross bore. Door thickness is also a field you fill in when ordering, so give the actual measured thickness of your slab if it sits outside the standard 1-3/4 inch commercial dimension.
3) Do I have to specify handing on the Emtek 1112 trim?
Handing matters here, and it is a required choice: right hand or left hand. Stand outside the door on the side it swings away from you, and the side the hinges are on gives you the hand. Ordering the wrong hand puts the lever throw and the cylinder position backwards on the door.
4) Is the Emtek 1112 keyed, or is it passage only?
Passage function, non-keyed. The 1112 operates the multi point gearbox with the lever and lifts the rods, but there is no cylinder in this trim. If the opening needs a key, you want a keyed version of the multi point trim instead. Note the cylinder position on this configuration is below the handle, which is where a keyed counterpart puts an American classification cylinder.
5) Which levers can I put on the Emtek 1112 sandcast bronze trim?
Any sandcast bronze lever, and the lever choice is required at the order stage. Ten are offered: Aurora, Bryce, Cimarron, Cody, Durango, Lariat, Mariposa, Montrose, Teton and Yuma. The plate and lever are sold together as the set, so pick the lever when you place the order rather than buying it separately.
6) Will the Emtek 1112 levers sag over time like older multi point handles?
No. The 1112 trim ships with Emtek's Spring Assist, which returns the lever to neutral and stops the handle drooping. That was the common complaint on older patio door trim, where the gearbox alone carried the lever return.
7) Is Emtek 1112 multi point trim suitable for a commercial building entrance?
Emtek rates the 1112 as residential hardware. It is swinging patio door trim for houses and residential units. For a commercial entrance carrying public traffic, specify a Grade 1 commercial mortise or cylindrical lockset instead of residential patio trim.
8) What is the difference between the Emtek 1112 and a regular passage lever set?
A standard passage set latches a single latchbolt in one spot. The 1112 is trim for a multi point gearbox, which throws locking points at several heights up the door edge at once. On a tall swinging patio door that is what pulls the slab tight against the weatherstrip and keeps it from bowing. It is not a substitute for a normal interior passage lever, and a normal passage lever will not drive a multi point gearbox.
9) What finishes does the Emtek 1112 Arched multi point trim come in?
Three sandcast bronze finishes: Flat Black Bronze (FB), Medium Bronze (MB) and Tumbled White Bronze (TWB). These are living finishes on solid bronze substrate, so they patina with handling and exposure rather than staying uniform, which is the point on a rustic or craftsman exterior door.
