Emtek 1612 Multi Point Lock Tr...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$424.00
$339.20

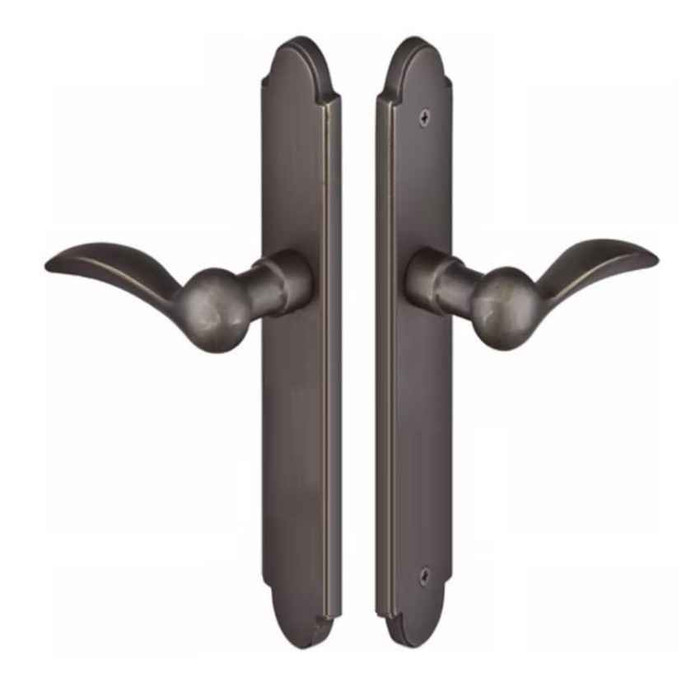

Emtek Emtek 1612 Multi Point Lock Trim (Door Config #6) - Sandcast Bronze Plates, Arched Style (1.5" x 11"), Non-Keyed Passage EMTEK-1612

Emtek 1612 Multi Point Lock Trim (Door Config #6) - Sandcast Bronze Plates, Arched Style (1.5" x 11"), Non-Keyed Passage

(No reviews yet) Write a Review

Model: 1612-FB
From the Sandcast Bronze Collection
$424.00
$339.20
Selected Finish is
Selected Lever Style is
Selected Handing is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$424.00
$339.20
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like



Specifications:

  • Backset: Adjustable 2-3/8" or 2-3/4"
  • Cross Bore: 2-1/8"
  • Door Thickness: 1-3/8" to 1-3/4"
  • Latch Faceplate: Round or Square Corner
  • Material: Brass



Emtek 1612 Multi Point Lock Trim (Door Config #6) - Sandcast Bronze Plates, Arched Style (1.5" x 11"), Non-Keyed Passage

  • Can be ordered with any Sandcast Bronze Levers
  • Swinging Patio Door Hardware. Set includes Plates, Handles
  • Multi Point Mortise Lock Box not included. Trims Only
  • Each Multi Point Lock Trim now includes the Spring Assist function which returns the lever to the neutral position and eliminates sagging handles.
Manufacturer Resources

Product Specs

Subcategory:
Multi Point Lock Trim
Product Group:
Mechanical Locks
Commercial/Residential:
Residential
Product Type:
Multi Point Lock Trim
Product Subgroup:
Multi Point Lock Trim
Collection:
Sandcast Bronze
Cylinder Position:
Below Handle
Door Configuration:
#6
Electronic:
No
Keyed:
No
Lock Type:
Multi Point Trim
Ref. Door Manufacturer(s):
Milgard, Pella
Series:
Arched
Theme:
Rustic Living
Keyed Function:
Non-Keyed
Lock Function:
Passage
MAP Policy:
Yes
Product Model:
1612
(CTC) Center-to-Center:
3-5/8"
Product Function:
Non-Keyed Passage
Product Size:
1-1/2" x 11"
Cylinder Classification:
American
Product Style:
Arched
Product Material:
Bronze
Product Category:
Mechanical Locks
Product Substrate:
Bronze
Department:
Door Hardware

Emtek 1612-FB – Frequently Asked Questions

1) Do I have to specify handing on the Emtek 1612 multi point trim?
Yes, handing is required. You pick right hand or left hand at order time, along with the lever style. Stand outside the door: if the hinges are on your right, it is right hand. Getting it wrong means the lever throws the wrong way on a door you cannot re-hand.
2) What is Door Configuration #6 on Emtek multi point trim, and how do I know it matches my patio door?
Configuration #6 describes the plate layout the 1612 is built to: an American cylinder classification with the cylinder positioned below the handle, on a 3-5/8 inch handle-to-cylinder center-to-center. The plates measure 1-1/2 x 11 inches. Match the cylinder location and center-to-center on your existing door prep to confirm the configuration before ordering. Note that this particular version is non-keyed passage, so no cylinder is used in it.
3) Will this Emtek trim fit a Milgard or Pella swinging patio door?
Milgard and Pella are the reference door manufacturers for this Emtek multi point trim set, which is made for swinging patio doors. It fits doors 1-3/8 to 1-3/4 inches thick with a 2-1/8 inch cross bore and an adjustable 2-3/8 or 2-3/4 inch backset. Confirm your door's cylinder position and 3-5/8 inch center-to-center matches Configuration #6.
4) Does the Emtek 1612 lock, or is it just a handle set?
It is passage function, non-keyed. The levers operate the multi point latch but there is no cylinder and no key. If you need the patio door to lock, choose the keyed version of the same Configuration #6 trim instead, which takes an American cylinder mounted below the handle.
5) What finishes does the Emtek 1612 arched sandcast bronze trim come in?
Three: Flat Black Bronze (FB), Medium Bronze (MB) and Tumbled White Bronze (TWB). These are Sandcast Bronze collection finishes, so they match other Emtek sandcast bronze hardware on the same elevation if you are standardizing across a house.
6) Will these Emtek levers sag over time on a heavy patio door?
Emtek multi point lock trim now ships with a spring assist that returns the lever to neutral, which is what prevents the droop you see on older handle sets. That is built into the trim, not something you order separately.
7) Is the Emtek 1612 trim suitable for a commercial opening?
No. It is classed residential, sandcast bronze patio door hardware for swinging doors. For a commercial entrance with traffic and code requirements, use a Grade 1 or Grade 2 commercial lockset instead of residential multi point trim.
8) What is the Emtek 1612 made of, and will the finish hold up outdoors?
The plates and levers are bronze, sandcast, on a brass-based trim. Sandcast bronze is a solid casting rather than a plated finish, which is why it is specified on exterior swinging patio doors where a thin plated coating would wear through at the grip.
9) My latch prep has square corners, not round. Does that matter for the Emtek 1612?
No issue. The latch faceplate on this Emtek multi point trim set is available round corner or square corner, so it can match an existing mortise in the door edge either way.
