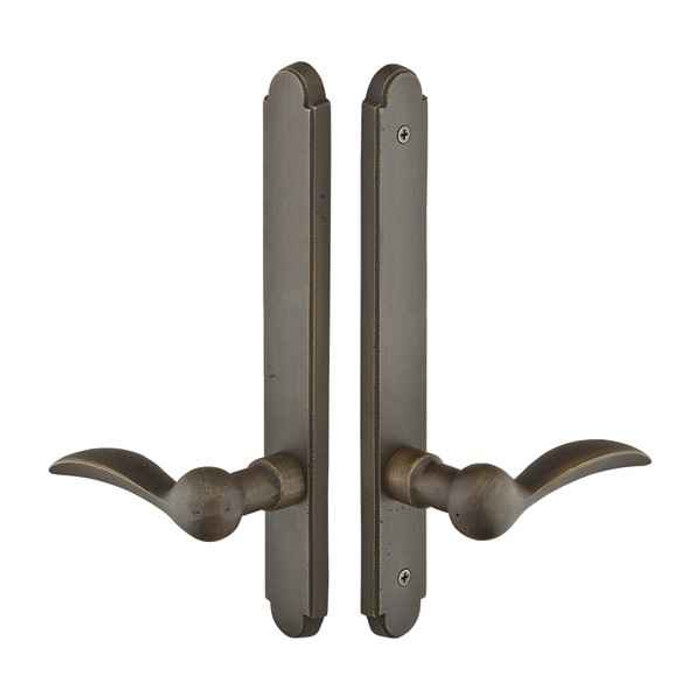

Emtek Emtek 1212 Multi Point Lock Trim (Door Config #2) - Sandcast Bronze Plates, Arched Style (1.5" x 11"), Non-Keyed Passage EMTEK-1212

Emtek 1212 Multi Point Lock Trim (Door Config #2) - Sandcast Bronze Plates, Arched Style (1.5" x 11"), Non-Keyed Passage

(No reviews yet) Write a Review

Model: 1212-FB
From the Sandcast Bronze Collection
$424.00
$339.20
Selected Finish is
Selected Lever Style is
Selected Handing is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$424.00
$339.20
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like



Specifications:

  • Backset: Adjustable 2-3/8" or 2-3/4"
  • Cross Bore: 2-1/8"
  • Door Thickness: 1-3/8" to 1-3/4"
  • Latch Faceplate: Round or Square Corner
  • Material: Brass



Emtek 1212 Multi Point Lock Trim (Door Config #2) - Sandcast Bronze Plates, Arched Style (1.5" x 11"), Non-Keyed Passage

  • Can be ordered with any Sandcast Bronze Levers
  • Swinging Patio Door Hardware. Set includes Plates, Handles
  • Multi Point Mortise Lock Box not included. Trims Only
  • Each Multi Point Lock Trim now includes the Spring Assist function which returns the lever to the neutral position and eliminates sagging handles.
Manufacturer Resources

Product Specs

Subcategory:
Multi Point Lock Trim
Product Group:
Mechanical Locks
Commercial/Residential:
Residential
Product Type:
Multi Point Lock Trim
Product Subgroup:
Multi Point Lock Trim
Collection:
Sandcast Bronze
Cylinder Position:
Above Handle
Door Configuration:
#2
Electronic:
No
Keyed:
No
Lock Type:
Multi Point Trim
Ref. Door Manufacturer(s):
BiltBest, G-U, Hurd (Energy Saver), Andersen
Series:
Arched
Theme:
Rustic Living
Keyed Function:
Non-Keyed
Lock Function:
Passage
MAP Policy:
Yes
Product Model:
1212
(CTC) Center-to-Center:
3-5/8"
Product Function:
Non-Keyed Passage
Product Size:
1-1/2" x 11"
Cylinder Classification:
American
Product Style:
Arched
Product Material:
Bronze
Product Category:
Mechanical Locks
Product Substrate:
Bronze
Department:
Door Hardware

Emtek 1212-FB – Frequently Asked Questions

1) Does the Emtek 1212 multi point trim include the multi point lock mechanism, or just the handles and plates?
Trim only. The Emtek 1212 set includes the plates and handles, and the multi point mortise lock box is not included. You need to have the existing multi point lock in the door, or order the lock body separately, before this trim is useful.
2) What is Door Configuration #2 on an Emtek multi point trim and how do I know mine matches?
Door Configuration #2 describes where the cylinder sits relative to the handle and the spacing between them. On the Emtek 1212 the cylinder position is above the handle and the center-to-center distance is 3-5/8 inches. Measure from the center of the cylinder hole to the center of the handle hub on your door; if it is 3-5/8 inches with the cylinder up top, this trim lines up with your prep.
3) Which patio door brands does the Emtek 1212 trim reference for fit?
Emtek lists BiltBest, G-U, Hurd (Energy Saver) and Andersen as the reference door manufacturers for this configuration. It is swinging patio door hardware, so it is meant for a hinged French or patio door running a multi point lock, not a slider.
4) Is the Emtek 1212 passage trim keyed, and what do I use on the active door?
Non-keyed passage. The 1212 has no cylinder and no locking function at the trim, so it suits the inactive leaf of a French door pair or an interior side where you only need to operate the multi point latches. The active, keyed leaf needs a keyed version of the trim instead.
5) Will the Emtek 1212 trim fit a 1-3/4 inch door, and what backset does it use?
Doors from 1-3/8 to 1-3/4 inches are covered, which spans the usual residential patio door thicknesses. Backset is adjustable at 2-3/8 or 2-3/4 inches, and the cross bore is 2-1/8 inches. Door thickness is a field you enter when ordering so the spindle and screw lengths come correct.
6) Do I have to specify handing when ordering the Emtek 1212 arched trim?
Yes, handing is required: right hand or left hand. Stand outside the door, and the side the hinges are on tells you the hand. You also pick the lever style and the finish, and you can enter your actual door thickness. Get the hand wrong and the lever points the wrong way on the plate.
7) What size are the Emtek 1212 arched plates and what finishes does it come in?
The arched sandcast bronze plates measure 1-1/2 by 11 inches, a slim profile that suits narrow stile patio doors. Three finishes are offered: Flat Black Bronze (FB), Medium Bronze (MB) and Tumbled White Bronze (TWB). Being sandcast bronze, each piece varies slightly in texture and tone, which is the point of the Sandcast Bronze collection.
8) Which levers can I put on the Emtek 1212 sandcast bronze trim?
Any Sandcast Bronze lever works with this trim. The choices are Aurora, Bryce, Cimarron, Cody, Durango, Lariat, Mariposa, Montrose, Teton and Yuma. Lever selection is required at order time, so pick the one that matches the interior door levers already in the house.
9) Is the Emtek 1212 trim rated for commercial use in an apartment building lobby?
Emtek classes the 1212 as residential hardware. For multi-family, it is appropriate on unit patio doors, not on a high-traffic common entrance where a Grade 1 commercial device belongs.
10) Will these levers sag over time like older multi point handles?
Emtek now builds a spring assist into every multi point lock trim, including the 1212. It returns the lever to the neutral horizontal position after use, which is what stops the droop you see on older long-plate patio handles.
11) What is the Emtek 1212 trim made of?
Bronze, sandcast, with a brass latch assembly noted in the specs. Sandcast bronze is heavier and more textured than a stamped brass plate, and the living finishes will patina with handling on an exterior swinging patio door.
