Emtek 1512 Multi Point Lock Tr...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$424.00
$339.20

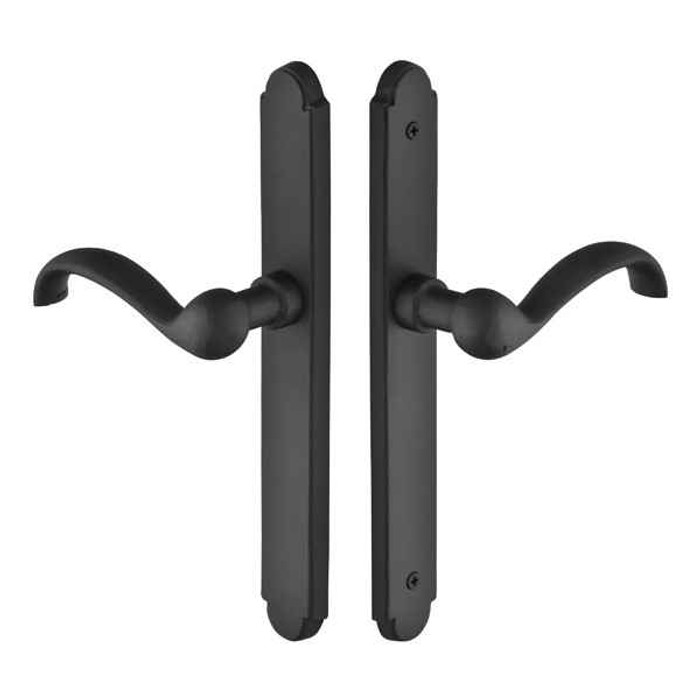

Emtek Emtek 1512 Multi Point Lock Trim (Door Config #5) - Sandcast Bronze Plates, Arched Style (1.5" x 11"), Non-Keyed Passage EMTEK-1512

Emtek 1512 Multi Point Lock Trim (Door Config #5) - Sandcast Bronze Plates, Arched Style (1.5" x 11"), Non-Keyed Passage

(No reviews yet) Write a Review

Model: 1512-FB
From the Sandcast Bronze Collection
$424.00
$339.20
Selected Finish is
Selected Lever Style is
Selected Handing is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$424.00
$339.20
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like



Specifications:

  • Backset: Adjustable 2-3/8" or 2-3/4"
  • Cross Bore: 2-1/8"
  • Door Thickness: 1-3/8" to 1-3/4"
  • Latch Faceplate: Round or Square Corner
  • Material: Brass



Emtek 1512 Multi Point Lock Trim (Door Config #5) - Sandcast Bronze Plates, Arched Style (1.5" x 11"), Non-Keyed Passage

  • Can be ordered with any Sandcast Bronze Levers
  • Swinging Patio Door Hardware. Set includes Plates, Handles
  • Multi Point Mortise Lock Box not included. Trims Only
  • Each Multi Point Lock Trim now includes the Spring Assist function which returns the lever to the neutral position and eliminates sagging handles.
Manufacturer Resources

Product Specs

Subcategory:
Multi Point Lock Trim
Product Group:
Mechanical Locks
Commercial/Residential:
Residential
Product Type:
Multi Point Lock Trim
Product Subgroup:
Multi Point Lock Trim
Collection:
Sandcast Bronze
Cylinder Position:
Below Handle
Door Configuration:
#5
Electronic:
No
Keyed:
No
Lock Type:
Multi Point Trim
Ref. Door Manufacturer(s):
Crestline, Hoppe, Hurd, KFV, Kolbe & Kolbe, Lincoln, Loewen, Paddock Lockmaster, Peachtree, Semco, Sierra, Oknoplast, Pacific, Signature, Simpson, Therma-Tru, Vetter, Willmar, Windsor, Weathershield
Series:
Arched
Theme:
Rustic Living
Keyed Function:
Non-Keyed
Lock Function:
Passage
MAP Policy:
Yes
Product Model:
1512
(CTC) Center-to-Center:
3-5/8"
Product Function:
Non-Keyed Passage
Product Size:
1-1/2" x 11"
Cylinder Classification:
Euro Profile
Product Style:
Arched
Product Material:
Bronze
Product Category:
Mechanical Locks
Product Substrate:
Bronze
Department:
Door Hardware

Emtek 1512-FB – Frequently Asked Questions

1) Does the Emtek 1512 multi point trim include the multi point lock mechanism?
No. The Emtek 1512 is trim only, plates and handles for a swinging patio door. The multi point mortise lock box is a separate purchase, so you need the gearbox and rods already in the door or ordered alongside it.
2) Will the Emtek 1512 trim fit my door thickness and existing bore?
It suits doors from 1-3/8 inch to 1-3/4 inch, with a 2-1/8 inch cross bore and a backset that adjusts between 2-3/8 inch and 2-3/4 inch. Door thickness is also a field you specify when ordering, so give the actual measured thickness if the door is non-standard.
3) Which door brands does this Emtek multi point trim reference for fit?
Emtek lists this multi point trim against Crestline, Hoppe, Hurd, KFV, Kolbe & Kolbe, Lincoln, Loewen, Paddock Lockmaster, Peachtree, Semco, Sierra, Oknoplast, Pacific, Signature, Simpson, Therma-Tru, Vetter, Willmar, Windsor and Weathershield systems. Match your gearbox configuration and center-to-center spacing, since a single manufacturer may use several layouts.
4) What do I have to specify when ordering the Emtek 1512?
Four things: finish, lever style, handing, and door thickness. Finish comes in Flat Black Bronze, Medium Bronze, or Tumbled White Bronze. Lever choices are Aurora, Bryce, Cimarron, Cody, Durango, Lariat, Mariposa, Montrose, Teton, and Yuma. Handing is right or left, and both lever and handing are required selections.
5) This is a passage function with a cylinder position, so do I need a key cylinder?
No key is involved. The 1512 is non-keyed passage trim, so the levers simply operate the latch. The Euro profile cylinder prep below the handle reflects the plate layout for Configuration #5 openings rather than a keyed function on this set.
6) Do the levers on this Emtek patio door trim sag over time?
Emtek now builds a Spring Assist function into its multi point lock trim, which returns the lever to neutral and is there specifically to stop handles drooping. That matters on a patio slider or swinging patio door that gets daily use.
7) Is the Emtek 1512 sandcast bronze trim rated for commercial openings?
It is a residential product. Emtek classifies the 1512 as residential swinging patio door hardware in the Sandcast Bronze collection. For a high traffic commercial entrance, specify commercial grade hardware instead.
8) How big are the Arched style plates on the Emtek 1512?
The plates measure 1-1/2 x 11 inches in the Arched profile. On a narrow stile patio door, check that 1-1/2 inch width clears your glass stop before ordering.
9) What material and finishes does this Emtek trim come in, and will it match other bronze hardware in the house?
Plates and levers are sandcast bronze, offered in Flat Black Bronze (FB), Medium Bronze (MB), and Tumbled White Bronze (TWB). Those are Emtek's Sandcast Bronze collection finishes, so they align with other Emtek sandcast levers and knobs specified in the same finish code.
10) Is the latch faceplate round or square corner on this Emtek multi point trim?
Both are covered, round corner or square corner latch faceplate, so it can follow the existing mortise in the door edge without recutting.
11) Is the Emtek 1512 an electronic or smart lock trim?
No electronics. The 1512 is mechanical non-keyed passage trim with no keypad, motor, or wiring.
