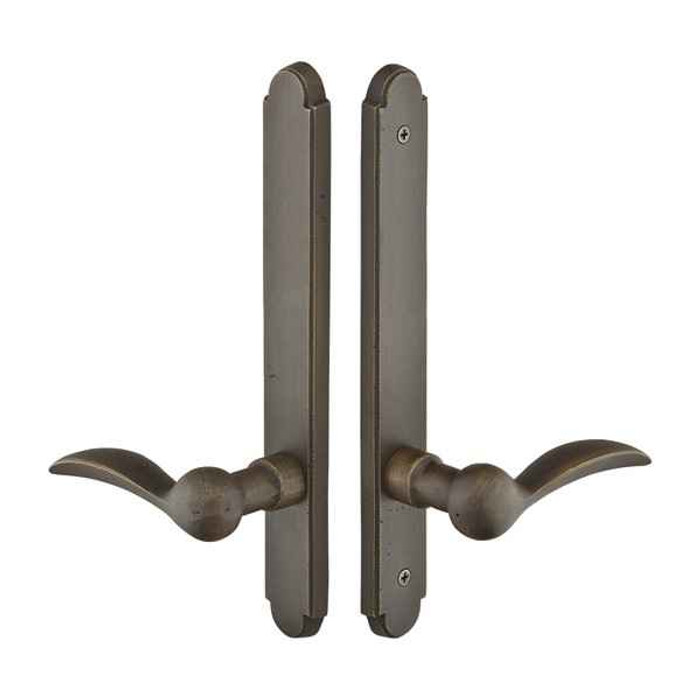

Emtek Emtek 1412 Multi Point Lock Trim (Door Config #4) - Sandcast Bronze Plates, Arched Style (1.5" x 11"), Non-Keyed Passage EMTEK-1412

Emtek 1412 Multi Point Lock Trim (Door Config #4) - Sandcast Bronze Plates, Arched Style (1.5" x 11"), Non-Keyed Passage

(No reviews yet) Write a Review

Model: 1412-FB
From the Sandcast Bronze Collection
$424.00
$339.20
Selected Finish is
Selected Lever Style is
Selected Handing is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$424.00
$339.20
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like



Specifications:

  • Backset: Adjustable 2-3/8" or 2-3/4"
  • Cross Bore: 2-1/8"
  • Door Thickness: 1-3/8" to 1-3/4"
  • Latch Faceplate: Round or Square Corner
  • Material: Brass



Emtek 1412 Multi Point Lock Trim (Door Config #4) - Sandcast Bronze Plates, Arched Style (1.5" x 11"), Non-Keyed Passage

  • Can be ordered with any Sandcast Bronze Levers
  • Swinging Patio Door Hardware. Set includes Plates, Handles
  • Multi Point Mortise Lock Box not included. Trims Only
  • Each Multi Point Lock Trim now includes the Spring Assist function which returns the lever to the neutral position and eliminates sagging handles.
Manufacturer Resources

Product Specs

Subcategory:
Multi Point Lock Trim
Product Group:
Mechanical Locks
Commercial/Residential:
Residential
Product Type:
Multi Point Lock Trim
Product Subgroup:
Multi Point Lock Trim
Collection:
Sandcast Bronze
Cylinder Position:
Above Handle
Door Configuration:
#4
Electronic:
No
Keyed:
No
Lock Type:
Multi Point Trim
Ref. Door Manufacturer(s):
Ashland, G-U, Caradco, JELD-WEN, Jeldwen Custom Collection (formerly Pozzi), Marvin, PGT, Premium Collection (formerly Norco), Weathershield
Series:
Arched
Theme:
Rustic Living
Keyed Function:
Non-Keyed
Lock Function:
Passage
MAP Policy:
Yes
Product Model:
1412
(CTC) Center-to-Center:
3-5/8"
Product Function:
Non-Keyed Passage
Product Size:
1-1/2" x 11"
Cylinder Classification:
American
Product Style:
Arched
Product Material:
Bronze
Product Category:
Mechanical Locks
Product Substrate:
Bronze
Department:
Door Hardware

Emtek 1412-FB – Frequently Asked Questions

1) Does the Emtek 1412 multi point trim include the multi point mortise lock body?
No. The Emtek 1412 is trim only: plates and handles for a swinging patio door. The multi point mortise lock box has to be sourced separately, so you need to already have the lock in the door or buy it alongside.
2) Will Emtek 1412 trim fit my patio door's existing multi point lock?
It is built to Emtek Door Configuration #4, with a 3-5/8 inch handle-to-cylinder center-to-center and the cylinder position above the handle. Emtek references this trim against multi point doors from Ashland, G-U, Caradco, JELD-WEN, JELD-WEN Custom Collection (formerly Pozzi), Marvin, PGT, Premium Collection (formerly Norco) and Weathershield. Measure your existing gearbox spacing against 3-5/8 inch center-to-center before ordering.
3) This is a passage function, so how does the door lock?
The 1412 is non-keyed passage trim, so the trim itself has no cylinder and no key. Latching and locking come from the multi point gearbox in the door, driven by lifting or turning the lever. If you want a keyed exterior, you need a keyed version of the trim instead.
4) What door thickness does the Emtek 1412 trim work on?
1-3/8 inch through 1-3/4 inch doors. Door thickness is an entry field on the order, so state your actual door thickness when you order so the spindle and screw pack match. Backset is adjustable 2-3/8 or 2-3/4 inch and the cross bore is 2-1/8 inch.
5) Do I have to specify handing on Emtek 1412 multi point trim?
Yes, handing is a required selection, right hand or left hand. Multi point trim is handed because the lever and spring assist are set for one swing direction, so get the door's hand right the first time. Lever style is also required at order time.
6) Which levers can I put on the Emtek 1412 sandcast bronze plates?
Any Sandcast Bronze lever from the ten offered: Aurora, Bryce, Cimarron, Cody, Durango, Lariat, Mariposa, Montrose, Teton and Yuma. The plate is the Arched style at 1-1/2 by 11 inches.
7) Will the lever on this Emtek multi point trim sag over time?
Spring assist is built into every one of these multi point trims. It returns the lever to neutral and is there specifically to stop the sagging handle problem common on tall patio door levers.
8) Is the Emtek 1412 trim suitable for a commercial entry?
It is classed as residential hardware, intended for swinging patio doors in homes. For a commercial opening with high traffic or code-driven requirements, specify commercial-grade lock hardware instead.
9) What finishes does the Emtek 1412 arched multi point trim come in?
Three sandcast bronze finishes: Flat Black Bronze (FB), Medium Bronze (MB), and Tumbled White Bronze (TWB). These are living finishes on solid bronze substrate, so they will patina with use, which is usually what a buyer matching rustic bronze hardware across a house wants.
10) If I later want a keyed version, what cylinder does this Emtek multi point trim series take?
The series uses an American-classification cylinder positioned above the handle. The 1412 itself is the non-keyed passage trim and carries no cylinder, so a keyed configuration has to come from the keyed version of the trim.
11) What latch faceplate corner style comes with this Emtek patio trim?
The latch faceplate is available round corner or square corner, so it can match the mortise pocket already routed in the door edge. Matching the existing corner style saves re-chiseling the door.
