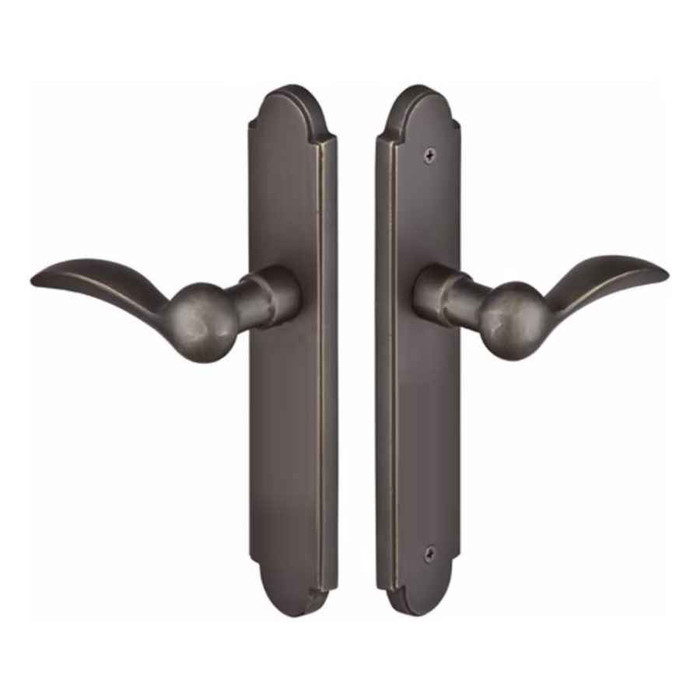

Emtek Emtek 1125 Multi Point Lock Trim (Door Config #1) - Sandcast Bronze Plates, Arched Style (2" x 10"), Dummy Pair EMTEK-1125

Emtek 1125 Multi Point Lock Trim (Door Config #1) - Sandcast Bronze Plates, Arched Style (2" x 10"), Dummy Pair

(No reviews yet) Write a Review

Model: 1125-FB
From the Sandcast Bronze Collection
$424.00
$339.20
Selected Finish is
Selected Lever Style is
Selected Handing is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$424.00
$339.20
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like



Specifications:

  • Door Thickness: 1-3/8" to 1-3/4"
  • Mount: Surface Mount (no door prep required)
  • Material: Brass



Emtek 1125 Multi Point Lock Trim (Door Config #1) - Sandcast Bronze Plates, Arched Style (2" x 10"), Dummy Pair

  • Can be ordered with any Sandcast Bronze Levers
  • Swinging Patio Door Hardware. Set includes Plates, Handles
  • Multi Point Mortise Lock Box not included. Trims Only
Manufacturer Resources

Product Specs

Subcategory:
Multi Point Lock Trim
Product Group:
Mechanical Locks
Commercial/Residential:
Residential
Product Type:
Multi Point Lock Trim
Product Subgroup:
Multi Point Lock Trim
Collection:
Sandcast Bronze
Cylinder Position:
Below Handle
Door Configuration:
#1
Electronic:
No
Keyed:
No
Lock Type:
Multi Point Trim
Ref. Door Manufacturer(s):
Atrium, G-U, KML by Andersen, Andersen, Marvin Integrity, Paddock Lockmaster, Superior
Series:
Arched
Theme:
Rustic Living
MAP Policy:
Yes
Product Model:
1125
(CTC) Center-to-Center:
3-5/8"
Product Function:
Dummy
Product Size:
2" x 10"
Cylinder Classification:
American
Product Style:
Arched
Product Material:
Bronze
Product Category:
Mechanical Locks
Product Substrate:
Bronze
Department:
Door Hardware

Emtek 1125-FB – Frequently Asked Questions

1) Does the Emtek 1125 multi point trim include the lock body, or do I need to buy the mortise lock separately?
Trim only. The Emtek 1125 set includes the plates and handles, and the multi point mortise lock box is not included. If you're building a complete swinging patio door assembly, you order the multi point lock mechanism separately. This particular version is a dummy pair, so both sides are fixed pulls with no operating latch behind them anyway.
2) What does "dummy pair" mean on an Emtek 1125 patio door trim, and when would I use it?
A dummy pair is non-operating trim on both faces of the door. There's no latch, no cylinder, nothing turns. The 1125 dummy is not keyed and has no electronic function. It's what you put on the inactive leaf of a French or swinging patio door pair so the two doors match visually, while the active leaf carries the working multi point lock trim.
3) Will the Emtek 1125 arched trim fit my door thickness, and do I have to route the door for it?
It covers 1-3/8 inch through 1-3/4 inch doors, which spans the usual residential swinging patio door range. Mounting is surface mount with no door prep required, so you aren't boring or routing for the plates themselves. There is an optional door thickness entry on the order if your door falls at a specific point in that range.
4) Which patio door brands does the Emtek 1125 Door Configuration #1 trim line up with?
Door Configuration #1 is referenced to Atrium, G-U, KML by Andersen, Andersen, Marvin Integrity, Paddock Lockmaster, and Superior doors. Configuration is what sets the hole pattern and cylinder placement, so match the config number to your existing door before ordering. The 1125 uses a 3-5/8 inch center-to-center spacing with the cylinder position below the handle.
5) Do I have to specify handing on an Emtek dummy multi point trim?
Yes, handing is required at order. You pick right hand or left hand. Even though the 1125 is a dummy with nothing operating, the arched plate and lever are shaped and oriented per hand, so a left hand set on a right hand door will look wrong. Determine the hand from the hinge side of the leaf the trim is going on.
6) If I need a keyed multi point handleset instead of a dummy, is this the right Emtek part?
No. The 1125 dummy pair is not keyed and has no cylinder in it, even though the configuration places a cylinder position below the handle on the keyed versions of this trim. For the active leaf that actually locks, order the keyed or active version of the Emtek multi point trim in the same Door Configuration #1, matching finish and lever so the pair looks identical.
7) What levers can I put on the Emtek 1125 Sandcast Bronze arched trim?
Any Sandcast Bronze lever in the collection. Ten are offered: Aurora, Bryce, Cimarron, Cody, Durango, Lariat, Mariposa, Montrose, Teton and Yuma. The lever choice is required when you order, so pick it at the same time as finish and handing.
8) What finishes does the Emtek 1125 sandcast bronze multi point trim come in?
Three: Flat Black Bronze (FB), Medium Bronze (MB), and Tumbled White Bronze (TWB). All three are sandcast solid bronze, so expect the variation in texture and tone that comes with sand casting rather than a uniform plated look. If you're matching existing Emtek sandcast hardware elsewhere in the house, order the same finish code.
9) Is this Emtek trim suitable for a commercial building entrance?
No. The Emtek 1125 arched multi point trim is classified residential, and it's swinging patio door hardware for a home. For a commercial entrance you want commercial-rated hardware instead.
10) How big are the Emtek 1125 arched plates, and will they cover my old trim's holes?
The arched plates measure 2 inches by 10 inches. Surface mount means the plate sits on the face of the door, so it will conceal prep within that footprint. Any existing holes outside a 2 by 10 inch area will still show, so measure your current plate before swapping.
11) What cylinder type does this Emtek multi point configuration use?
American cylinder classification, positioned below the handle. That matters if you're keying the active leaf of the same door pair to the rest of the house, since the mating active trim in this configuration takes an American-style cylinder rather than a Euro profile.
