Emtek 1325 Multi Point Lock Tr...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$424.00
$339.20

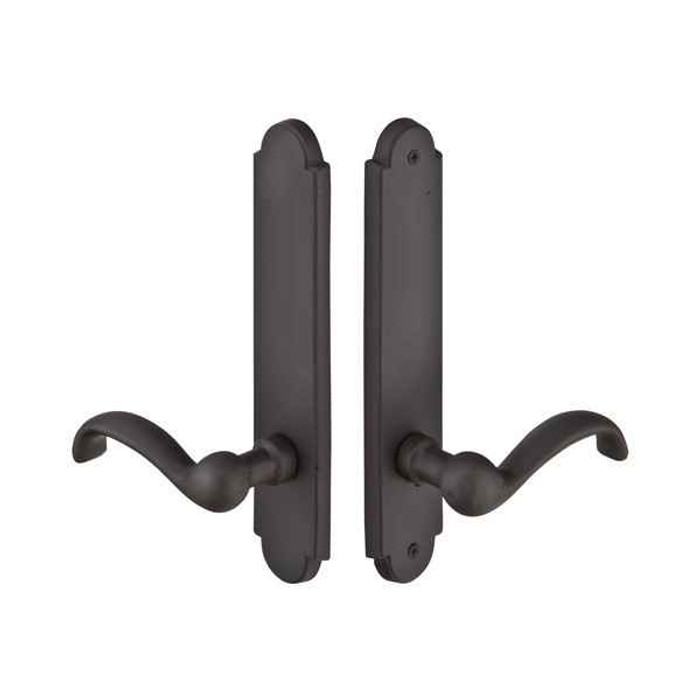

Emtek Emtek 1325 Multi Point Lock Trim (Door Config #3) - Sandcast Bronze Plates, Arched Style (2" x 10"), Dummy Pair EMTEK-1325

Emtek 1325 Multi Point Lock Trim (Door Config #3) - Sandcast Bronze Plates, Arched Style (2" x 10"), Dummy Pair

(No reviews yet) Write a Review

Model: 1325-FB
From the Sandcast Bronze Collection
$424.00
$339.20
Selected Finish is
Selected Lever Style is
Selected Handing is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$424.00
$339.20
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like



Specifications:

  • Door Thickness: 1-3/8" to 1-3/4"
  • Mount: Surface Mount (no door prep required)
  • Material: Brass



Emtek 1325 Multi Point Lock Trim (Door Config #3) - Sandcast Bronze Plates, Arched Style (2" x 10"), Dummy Pair

  • Can be ordered with any Sandcast Bronze Levers
  • Swinging Patio Door Hardware. Set includes Plates, Handles
  • Multi Point Mortise Lock Box not included. Trims Only
Manufacturer Resources

Product Specs

Subcategory:
Multi Point Lock Trim
Product Group:
Mechanical Locks
Commercial/Residential:
Residential
Product Type:
Multi Point Lock Trim
Product Subgroup:
Multi Point Lock Trim
Collection:
Sandcast Bronze
Cylinder Position:
Above Handle
Door Configuration:
#3
Electronic:
No
Keyed:
No
Lock Type:
Multi Point Trim
Ref. Door Manufacturer(s):
Andersen
Series:
Arched
Theme:
Rustic Living
MAP Policy:
Yes
Product Model:
1325
(CTC) Center-to-Center:
4-1/8"
Product Function:
Dummy
Product Size:
2" x 10"
Cylinder Classification:
American
Product Style:
Arched
Product Material:
Bronze
Product Category:
Mechanical Locks
Product Substrate:
Bronze
Department:
Door Hardware

Emtek 1325-FB – Frequently Asked Questions

1) Does the Emtek 1325 multi point trim include the lock body, or is it just the handles and plates?
Trim only. The 1325 set gives you the two plates and the handles for a swinging patio door; the multi point mortise lock box is not part of it and has to be sourced separately. Because it's the Dummy function, there's no latch action at all - the levers are fixed, which is what you want on the inactive leaf of a pair or a fixed patio panel.
2) What is the center-to-center measurement on the Emtek 1325 arched plate, and will it line up with my existing multi point lock?
Center-to-center is 4-1/8 inches, measured between the handle and the cylinder hole, with the cylinder sitting above the handle. That spacing is what has to match your multi point lock body - if your existing gear is on a different CTC, the plate won't line up. The plate itself is 2 by 10 inches.
3) Will the Emtek 1325 trim fit a 1-3/4 inch door?
Yes. The 1325 covers 1-3/8 inch through 1-3/4 inch doors, which spans both the common older interior thickness and standard modern patio door stock. It's surface mount, so no door prep is needed for the plates themselves. Door thickness is a field you fill in when ordering so the spindle and screw pack come correct.
4) What do I have to specify when ordering the Emtek 1325 dummy trim?
Three things beyond finish. Lever style is required, from ten Sandcast Bronze options: Aurora, Bryce, Cimarron, Cody, Durango, Lariat, Mariposa, Montrose, Teton and Yuma. Handing is required, right or left. Door thickness is an optional text entry. Finish comes in three: Flat Black Bronze, Medium Bronze and Tumbled White Bronze.
5) Is this Emtek trim suitable for an Andersen patio door?
Andersen is the referenced door manufacturer for the 1325 multi point trim. Confirm the gear on your specific door matches the 4-1/8 inch center-to-center and the Configuration #3 layout before ordering, since Andersen has used more than one multi point arrangement over the years.
6) Why does a dummy trim set need handing specified?
Because the arched plate is cut for a cylinder position above the handle and the lever throw is oriented to the swing, the 1325 is ordered right hand or left hand. Get it wrong and the lever points the wrong way on the leaf. Stand outside the door, note which side the hinges are on, and order to that.
7) What is Door Configuration #3 on Emtek multi point trim?
Emtek numbers its multi point trim by the arrangement of handle, cylinder and thumbturn on the plate. The 1325 is Configuration #3: cylinder above the handle, no keying in the trim itself, matched to an American cylinder format. If your door's multi point gear uses a different arrangement, you need the matching configuration number instead of this one.
8) Is the Emtek 1325 rated for commercial use?
No. The 1325 Sandcast Bronze multi point trim is a residential product, aimed at swinging patio doors in homes. For a high traffic commercial entrance you want a Grade 1 commercial lockset rather than decorative patio trim.
9) Can I pair this dummy set with an active keyed multi point handle on the other leaf?
Yes, that's the usual application. The 1325 is a dummy pair with no keying and no electronics in the trim, so it goes on the fixed or inactive panel while the operating leaf carries the keyed multi point trim. Match lever style, finish and the 2 by 10 inch arched plate across both leaves so the pair reads as a set.
10) What is the 1325 trim actually made of, and how will the bronze finishes age?
Solid bronze plates and levers, sandcast, in the Sandcast Bronze collection. Bronze is a living finish - Flat Black Bronze, Medium Bronze and Tumbled White Bronze will all soften and develop character at wear points over time rather than staying uniform. If you're matching multiple openings in one home, order all of them at once from the same finish so they patinate together.
