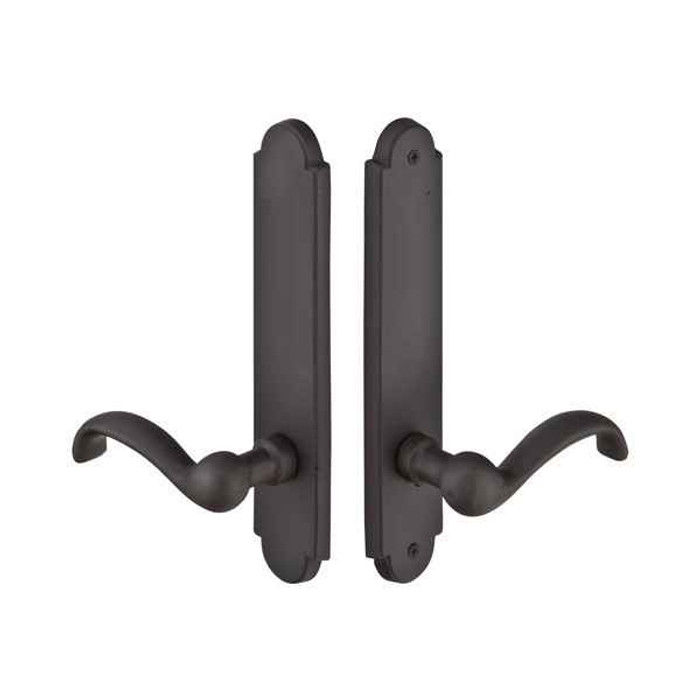

Emtek 1225 Multi Point Lock Trim (Door Config #2) - Sandcast Bronze Plates, Arched Style (2" x 10"), Dummy Pair

No. The Emtek 1225 is trim only: you get the pair of arched sandcast bronze plates and the handles. The multi point mortise lock box is not included, so you either reuse the lock already in the door or order the lock body separately. It is also a dummy pair, meaning no latch or bolt operation at all, so there is nothing keyed and no cylinder function.

A dummy pair is fixed, non-operating trim on both faces of the door. Nothing turns, nothing latches, and it is not keyed. It is used on the inactive leaf of a swinging patio door pair, or anywhere you want the handles to visually match the operating door without a working lock. If you need the door to actually lock, you need an active multi point trim set with a lock body instead.

It is surface mount, so no door prep is required. That makes it a straightforward swap on an existing swinging patio door. It suits doors 1-3/8 inch to 1-3/4 inch thick, which covers standard residential patio door thicknesses.

Configuration #2 references BiltBest, G-U, Hurd (Energy Saver), and Andersen doors. Emtek splits multi point trim into configurations because the handle and cylinder hole spacing differs by door maker, so match the configuration to your door before ordering. On config #2 the center-to-center spacing is 3-5/8 inches with the cylinder position above the handle.

Measure from the center of the cylinder hole to the center of the handle spindle hole on your door. The Emtek 1225 arched plate is laid out for 3-5/8 inches with the cylinder sitting above the handle. If your door measures something else, you need a different Emtek door configuration rather than this one.

Three things. Finish, offered in Flat Black Bronze, Medium Bronze, and Tumbled White Bronze. Lever style, chosen from Aurora, Bryce, Cimarron, Cody, Durango, Lariat, Mariposa, Montrose, Teton, and Yuma. And handing, right hand or left hand. There is also an optional door thickness note if your door falls at a specific point in the 1-3/8 to 1-3/4 inch range.

The arched sandcast bronze plates measure 2 x 10 inches. On a narrow patio door stile, hold that 2 inch width against your stile face to be sure the plate lands flat and clear of the glass stop before you drill for fasteners.

Yes, handing is required, right hand or left hand. Even though nothing operates, the lever throw and the plate layout are handed so the set reads correctly on the door and matches the active leaf beside it. Order the handing of the door the trim is going on.

That is what it is for. Any Emtek Sandcast Bronze lever can be ordered on it, and the three finishes (Flat Black Bronze, Medium Bronze, Tumbled White Bronze) are the same Sandcast Bronze collection finishes used on the active trim. Order the same lever style and finish on both leaves and the pair reads as one set.

No cylinder is needed. The plate is laid out with a cylinder position above the handle so it matches the active trim of the same configuration, but the 1225 is a dummy pair and is not keyed. If you do fit an active set on the companion door, Emtek specifies an American-style cylinder for this trim family.

It is classified residential. The 1225 is sandcast bronze patio door trim built for homes and rustic residential interiors, not for commercial traffic or code-rated openings. For a commercial entrance, look at Grade 1 commercial lock hardware instead.
