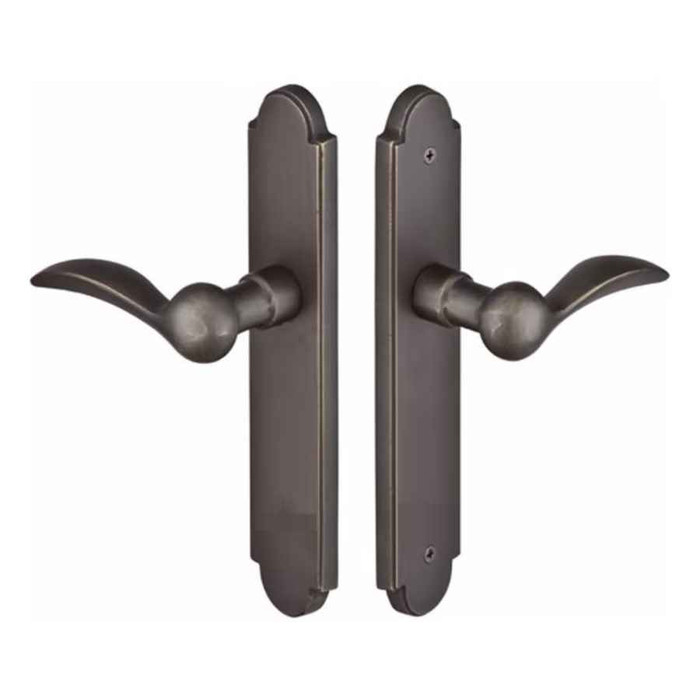

Emtek Emtek 1525 Multi Point Lock Trim (Door Config #5) - Sandcast Bronze Plates, Arched Style (2" x 10"), Dummy Pair EMTEK-1525

Emtek 1525 Multi Point Lock Trim (Door Config #5) - Sandcast Bronze Plates, Arched Style (2" x 10"), Dummy Pair

(No reviews yet) Write a Review

Model: 1525-FB
From the Sandcast Bronze Collection
$424.00
$339.20
Selected Finish is
Selected Lever Style is
Selected Handing is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$424.00
$339.20
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like



Specifications:

  • Door Thickness: 1-3/8" to 1-3/4"
  • Mount: Surface Mount (no door prep required)
  • Material: Brass



Emtek 1525 Multi Point Lock Trim (Door Config #5) - Sandcast Bronze Plates, Arched Style (2" x 10"), Dummy Pair

  • Can be ordered with any Sandcast Bronze Levers
  • Swinging Patio Door Hardware. Set includes Plates, Handles
  • Multi Point Mortise Lock Box not included. Trims Only
Manufacturer Resources

Product Specs

Subcategory:
Multi Point Lock Trim
Product Group:
Mechanical Locks
Commercial/Residential:
Residential
Product Type:
Multi Point Lock Trim
Product Subgroup:
Multi Point Lock Trim
Collection:
Sandcast Bronze
Cylinder Position:
Below Handle
Door Configuration:
#5
Electronic:
No
Keyed:
No
Lock Type:
Multi Point Trim
Ref. Door Manufacturer(s):
Crestline, Hoppe, Hurd, KFV, Kolbe & Kolbe, Lincoln, Loewen, Paddock Lockmaster, Peachtree, Semco, Sierra, Oknoplast, Pacific, Signature, Simpson, Therma-Tru, Vetter, Willmar, Windsor, Weathershield
Series:
Arched
Theme:
Rustic Living
MAP Policy:
Yes
Product Model:
1525
(CTC) Center-to-Center:
3-5/8"
Product Function:
Dummy
Product Size:
2" x 10"
Cylinder Classification:
Euro Profile
Product Style:
Arched
Product Material:
Bronze
Product Category:
Mechanical Locks
Product Substrate:
Bronze
Department:
Door Hardware

Emtek 1525-FB – Frequently Asked Questions

1) Does the Emtek 1525 multi point trim include the multi point lock itself?
No. The Emtek 1525 is trim only: plates and handles for a swinging patio door. The multi point mortise lock box is not included, so you need to already have one in the door or order it separately.
2) What does Dummy function mean on the Emtek 1525 patio door trim?
Dummy pair means there is no latching or keying action at all. Both sides are fixed pulls mounted to the plates, used on the inactive leaf of a pair of swinging patio doors or where the door is held by other means. It is not keyed and has no electronic function.
3) What door thickness does the Emtek 1525 Sandcast Bronze trim fit, and does the door need prep?
It fits doors from 1-3/8 inch to 1-3/4 inch. Mounting is surface mount, so no door prep is required, which makes it workable on an existing patio door slab.
4) What is Door Configuration #5 on Emtek multi point trim and how do I know it matches my door?
Emtek numbers its multi point trim by the layout of the holes in the plate. Config #5 is a Euro profile cylinder positioned below the handle, with 3-5/8 inch center-to-center between the handle spindle and the cylinder. Measure that spacing on your existing lock and confirm the cylinder sits below the lever before ordering.
5) Which patio door brands does this Emtek multi point trim reference for fit?
Emtek lists this trim against multi point systems from Crestline, Hoppe, Hurd, KFV, Kolbe & Kolbe, Lincoln, Loewen, Paddock Lockmaster, Peachtree, Semco, Sierra, Oknoplast, Pacific, Signature, Simpson, Therma-Tru, Vetter, Willmar, Windsor and Weathershield. Fit still comes down to matching Config #5 geometry: Euro cylinder below the handle at 3-5/8 inch centers.
6) What do I have to specify when ordering the Emtek 1525 dummy trim?
Three things beyond finish. Lever style, chosen from Aurora, Bryce, Cimarron, Cody, Durango, Lariat, Mariposa, Montrose, Teton or Yuma. Handing, right or left. And your door thickness. Finish comes in Flat Black Bronze, Medium Bronze and Tumbled White Bronze.
7) I need a working keyed handleset for my active patio door, not a dummy. Is this the right part?
No. The 1525 dummy pair has no latch and no key. Use it on the fixed or inactive leaf. For the active door you want the keyed or active multi point trim in the same Config #5 layout, paired with a multi point mortise lock box, so the two leaves match visually.
8) How big are the plates on the Emtek 1525 arched trim, and will they cover my old hardware?
The plates are the arched style measuring 2 x 10 inches. That is a narrow plate, so it suits a patio door stile but will not hide a wide escutcheon footprint from a previous set. Check your existing plate outline against 2 by 10 before removing anything.
9) Is the Emtek 1525 sandcast bronze trim suitable for a commercial entrance?
It is classified residential. The 1525 is sandcast bronze patio door trim for homes, not a graded commercial entry set. For a storefront or high traffic commercial opening, specify commercial rated entry hardware instead.
10) Will the finish on this Emtek trim match other Emtek sandcast bronze hardware in the house?
It belongs to the Emtek Sandcast Bronze collection and is solid bronze, so it matches other sandcast bronze pieces in the same finish code. Pick Flat Black Bronze, Medium Bronze or Tumbled White Bronze to match what is already hanging on your other doors. Sandcast bronze finishes vary slightly piece to piece by nature of the casting.
