Emtek 1152 Multi Point Lock Tr...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$424.00
$339.20
Emtek Emtek 1152 Multi Point Lock Trim (Door Config #1) - Sandcast Bronze Plates, Rectangular Style (1.5" x 11"), Non-Keyed Passage EMTEK-1152

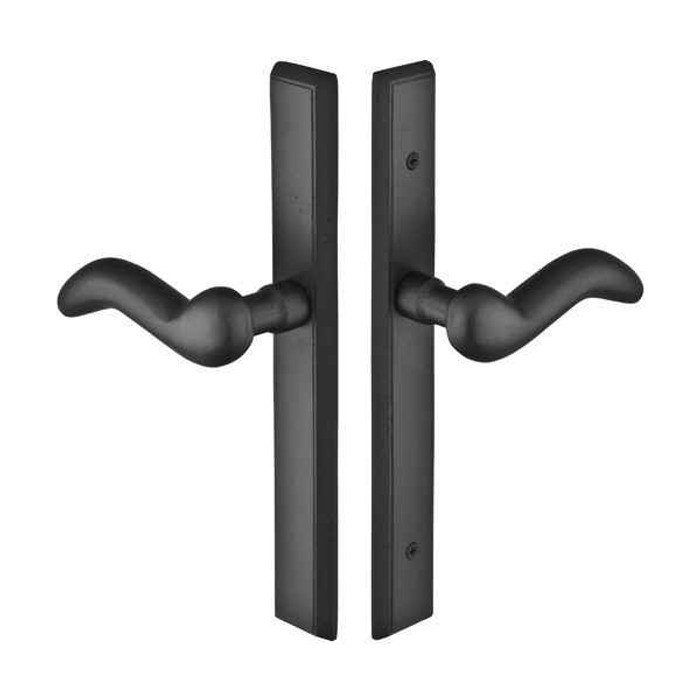

Emtek 1152 Multi Point Lock Trim (Door Config #1) - Sandcast Bronze Plates, Rectangular Style (1.5" x 11"), Non-Keyed Passage

(No reviews yet) Write a Review

Model: 1152-FB
From the Sandcast Bronze Collection
$424.00
$339.20
Selected Finish is
Selected Lever Style is
Selected Handing is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$424.00
$339.20
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like



Specifications:

  • Backset: Adjustable 2-3/8" or 2-3/4"
  • Cross Bore: 2-1/8"
  • Door Thickness: 1-3/8" to 1-3/4"
  • Latch Faceplate: Round or Square Corner
  • Material: Brass



Emtek 1152 Multi Point Lock Trim (Door Config #1) - Sandcast Bronze Plates, Rectangular Style (1.5" x 11"), Non-Keyed Passage

  • Can be ordered with any Sandcast Bronze Levers
  • Swinging Patio Door Hardware. Set includes Plates, Handles
  • Multi Point Mortise Lock Box not included. Trims Only
  • Each Multi Point Lock Trim now includes the Spring Assist function which returns the lever to the neutral position and eliminates sagging handles.
Manufacturer Resources

Product Specs

Subcategory:
Multi Point Lock Trim
Product Group:
Mechanical Locks
Commercial/Residential:
Residential
Product Type:
Multi Point Lock Trim
Product Subgroup:
Multi Point Lock Trim
Collection:
Sandcast Bronze
Cylinder Position:
Below Handle
Door Configuration:
#1
Electronic:
No
Keyed:
No
Lock Type:
Multi Point Trim
Ref. Door Manufacturer(s):
Atrium, G-U, KML by Andersen, Andersen, Marvin Integrity, Paddock Lockmaster, Superior
Series:
Rectangular
Theme:
Rustic Living
Keyed Function:
Non-Keyed
Lock Function:
Passage
MAP Policy:
Yes
Product Model:
1152
(CTC) Center-to-Center:
3-5/8"
Product Function:
Non-Keyed Passage
Product Size:
1-1/2" x 11"
Cylinder Classification:
American
Product Shape:
Rectangular
Product Style:
Rectangular
Product Material:
Bronze
Product Category:
Mechanical Locks
Product Substrate:
Bronze
Department:
Door Hardware

Emtek 1152-FB – Frequently Asked Questions

1) Does the Emtek 1152 multi point trim include the multi point lock mechanism?
No. The Emtek 1152 is trim only: plates and handles for a swinging patio door. The multi point mortise lock box is a separate purchase, so you need the gearbox and rods already in the door or ordered alongside it.
2) Will the Emtek 1152 trim fit my Andersen or Marvin patio door?
The 1152 trim is referenced to Atrium, G-U, KML by Andersen, Andersen, Marvin Integrity, Paddock Lockmaster and Superior multi point systems, and it is built for Door Configuration #1 with a 3-5/8 inch center-to-center between handle and cylinder position. Match your existing gearbox configuration and CTC before ordering, since Emtek splits multi point trim by door config number.
3) What door thickness and backset does the Emtek 1152 multi point trim work with?
It covers doors from 1-3/8 to 1-3/4 inches thick, with an adjustable backset of 2-3/8 or 2-3/4 inches and a 2-1/8 inch cross bore. Door thickness is an entry field on the order, so state your actual thickness when you place it.
4) Is the Emtek 1152 passage trim keyed, and where would a cylinder go?
It is a non-keyed passage set, so there is no cylinder supplied and no key operation. The related keyed versions of this trim take an American standard cylinder positioned below the handle. If you need to lock the patio door from outside, a passage trim is the wrong function for you.
5) Do I have to specify handing on the Emtek 1152 trim?
Yes, handing is a required selection: right hand or left hand. The lever set is handed, so the wrong choice leaves the lever pointing the wrong way on a swinging patio door. Confirm the swing from the outside before you order.
6) What finishes and lever styles can I get on the Emtek 1152 sandcast bronze trim?
Three sandcast bronze finishes: Flat Black Bronze (FB), Medium Bronze (MB) and Tumbled White Bronze (TWB). Lever choice is required and covers ten sandcast bronze designs, Aurora, Bryce, Cimarron, Cody, Durango, Lariat, Mariposa, Montrose, Teton and Yuma, so you can match other Emtek sandcast bronze openings in the house.
7) How big are the plates on the Emtek 1152, and will they cover the old trim's holes?
The rectangular plates measure 1-1/2 x 11 inches. That footprint plus the 2-1/8 inch cross bore is what determines coverage, so measure your existing plate and bore before assuming the new trim hides the old prep.
8) Do Emtek multi point levers sag over time?
This trim ships with Emtek's Spring Assist function, which returns the lever to neutral and is there specifically to stop handles drooping on heavy patio doors.
9) Is the Emtek 1152 trim suitable for a commercial entrance?
It is classified residential, built in solid bronze for swinging patio doors in homes. For a commercial opening with traffic and code requirements, specify a commercial grade lockset instead.
10) Round or square corner latch faceplate on the Emtek 1152?
Both are covered, round corner or square corner latch faceplate, so it can drop into either existing door prep.
