Emtek Emtek 1852 Multi Point Lock Trim (Door Config #8) - Sandcast Bronze Plates, Rectangular Style (1.5" x 11"), Non-Keyed Passage EMTEK-1852

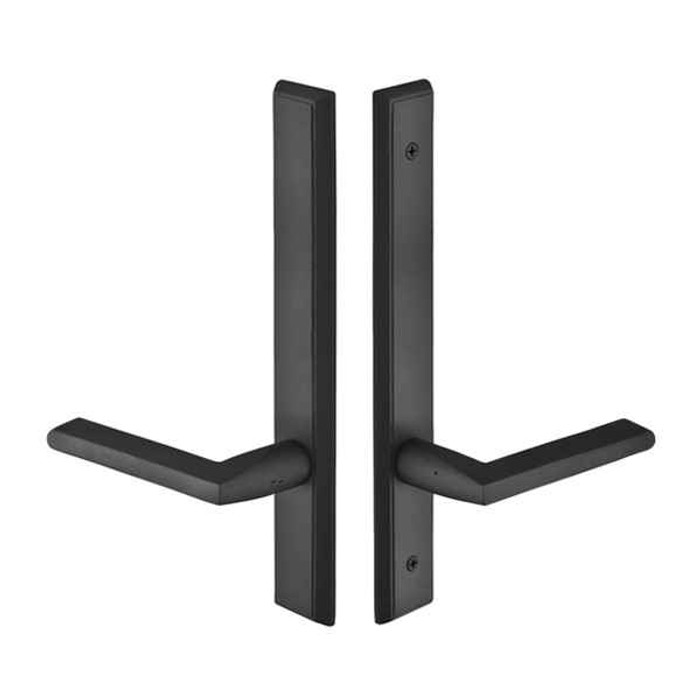

Emtek 1852 Multi Point Lock Trim (Door Config #8) - Sandcast Bronze Plates, Rectangular Style (1.5" x 11"), Non-Keyed Passage

(No reviews yet) Write a Review

Model: 1852-FB
From the Sandcast Bronze Collection
$424.00
$339.20
Selected Finish is
Selected Lever Style is
Selected Handing is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$424.00
$339.20
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like



Specifications:

  • Backset: Adjustable 2-3/8" or 2-3/4"
  • Cross Bore: 2-1/8"
  • Door Thickness: 1-3/8" to 1-3/4"
  • Latch Faceplate: Round or Square Corner
  • Material: Brass



Emtek 1852 Multi Point Lock Trim (Door Config #8) - Sandcast Bronze Plates, Rectangular Style (1.5" x 11"), Non-Keyed Passage

  • Can be ordered with any Sandcast Bronze Levers
  • Swinging Patio Door Hardware. Set includes Plates, Handles
  • Multi Point Mortise Lock Box not included. Trims Only
  • Each Multi Point Lock Trim now includes the Spring Assist function which returns the lever to the neutral position and eliminates sagging handles.
Manufacturer Resources

Product Specs

Subcategory:
Multi Point Lock Trim
Product Group:
Mechanical Locks
Commercial/Residential:
Residential
Product Type:
Multi Point Lock Trim
Product Subgroup:
Multi Point Lock Trim
Collection:
Sandcast Bronze
Cylinder Position:
Above Handle
Door Configuration:
#8
Electronic:
No
Keyed:
No
Lock Type:
Multi Point Trim
Ref. Door Manufacturer(s):
Neuma Doors
Series:
Rectangular
Theme:
Rustic Living
Keyed Function:
Non-Keyed
Lock Function:
Passage
MAP Policy:
Yes
Product Model:
1852
(CTC) Center-to-Center:
5-1/4"
Product Function:
Non-Keyed Passage
Product Size:
1-1/2" x 11"
Cylinder Classification:
American
Product Shape:
Rectangular
Product Style:
Rectangular
Product Material:
Bronze
Product Category:
Mechanical Locks
Product Substrate:
Bronze
Department:
Door Hardware

Emtek 1852-FB – Frequently Asked Questions

1) What door thickness does the Emtek 1852 multi point trim fit?
1-3/8 inch to 1-3/4 inch doors, with an adjustable backset of 2-3/8 or 2-3/4 inches and a 2-1/8 inch cross bore. There is also a door thickness field on the order, so state your actual thickness when you buy.
2) What does Door Configuration #8 mean on an Emtek multi point trim?
It describes where the operating parts sit on the plate. On the 1852, the cylinder position is above the handle and the center-to-center spacing is 5-1/4 inches. Your door and lock body have to be prepped to that same configuration, since multi point trim is not interchangeable across configs.
3) Will the Emtek 1852 passage trim lock the door?
No. It is a non-keyed passage function, so there is no cylinder and no key. The handles operate the latching hardware only. If you want a keyed swinging patio door, you need a keyed version of the multi point trim instead.
4) Do I have to specify handing when ordering Emtek 1852 trim?
Yes, handing is required: right hand or left hand. Multi point trim is not reversible in the field, so get the swing right off the drawing or by standing outside the door.
5) Do the levers on this Emtek patio door trim sag over time?
The 1852 trim includes spring assist, which returns the lever to neutral and keeps the handle from drooping. That matters on tall swinging patio doors where a heavy sandcast bronze lever hangs on the spindle all day.
6) Is the Emtek 1852 trim suitable for a commercial opening?
It is classed as residential hardware for swinging patio doors. For a commercial entrance with traffic and code requirements, specify a commercial lockset rather than this sandcast bronze patio trim.
7) What size are the Emtek 1852 escutcheon plates?
Rectangular plates measuring 1-1/2 x 11 inches. Check that against the existing plate footprint if you are swapping trim, since a smaller replacement can leave old screw holes or finish shadows exposed.
8) What finishes does the Emtek 1852 sandcast bronze trim come in?
Three: Flat Black Bronze (FB), Medium Bronze (MB) and Tumbled White Bronze (TWB). These are living sandcast bronze finishes, so expect them to patina rather than stay uniform.
9) What material are the Emtek 1852 plates and how will they wear outdoors?
Sandcast bronze, brass base material. Cast bronze holds up on exterior patio doors and the finishes are unlacquered-style living finishes, so the exposed face will darken and highlight with handling.
