Emtek 1452 Multi Point Lock Tr...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$424.00
$339.20
Emtek Emtek 1452 Multi Point Lock Trim (Door Config #4) - Sandcast Bronze Plates, Rectangular Style (1.5" x 11"), Non-Keyed Passage EMTEK-1452

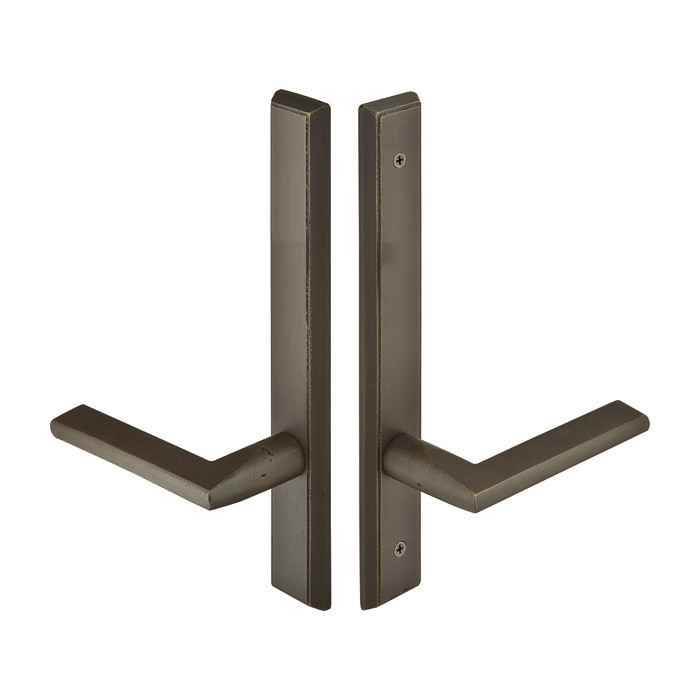

Emtek 1452 Multi Point Lock Trim (Door Config #4) - Sandcast Bronze Plates, Rectangular Style (1.5" x 11"), Non-Keyed Passage

(No reviews yet) Write a Review

Model: 1452-FB
From the Sandcast Bronze Collection
$424.00
$339.20
Selected Finish is
Selected Lever Style is
Selected Handing is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$424.00
$339.20
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like



Specifications:

  • Backset: Adjustable 2-3/8" or 2-3/4"
  • Cross Bore: 2-1/8"
  • Door Thickness: 1-3/8" to 1-3/4"
  • Latch Faceplate: Round or Square Corner
  • Material: Brass



Emtek 1452 Multi Point Lock Trim (Door Config #4) - Sandcast Bronze Plates, Rectangular Style (1.5" x 11"), Non-Keyed Passage

  • Can be ordered with any Sandcast Bronze Levers
  • Swinging Patio Door Hardware. Set includes Plates, Handles
  • Multi Point Mortise Lock Box not included. Trims Only
  • Each Multi Point Lock Trim now includes the Spring Assist function which returns the lever to the neutral position and eliminates sagging handles.
Manufacturer Resources

Product Specs

Subcategory:
Multi Point Lock Trim
Product Group:
Mechanical Locks
Commercial/Residential:
Residential
Product Type:
Multi Point Lock Trim
Product Subgroup:
Multi Point Lock Trim
Collection:
Sandcast Bronze
Cylinder Position:
Above Handle
Door Configuration:
#4
Electronic:
No
Keyed:
No
Lock Type:
Multi Point Trim
Ref. Door Manufacturer(s):
Ashland, G-U, Caradco, JELD-WEN, Jeldwen Custom Collection (formerly Pozzi), Marvin, PGT, Premium Collection (formerly Norco), Weathershield
Series:
Rectangular
Theme:
Rustic Living
Keyed Function:
Non-Keyed
Lock Function:
Passage
MAP Policy:
Yes
Product Model:
1452
(CTC) Center-to-Center:
3-5/8"
Product Function:
Non-Keyed Passage
Product Size:
1-1/2" x 11"
Cylinder Classification:
American
Product Shape:
Rectangular
Product Style:
Rectangular
Product Material:
Bronze
Product Category:
Mechanical Locks
Product Substrate:
Bronze
Department:
Door Hardware

Emtek 1452-FB – Frequently Asked Questions

1) Does the Emtek 1452 multi point trim include the multi point lock itself?
No. The 1452 is trim only: plates and handles for a swinging patio door. The multi point mortise lock box is a separate purchase, so you need the gearbox already in the door or ordered alongside it. The plates measure 1-1/2 x 11 inches with 3-5/8 inch center-to-center spacing, which is what has to match the existing lock prep.
2) What does Door Configuration #4 mean on Emtek multi point trim, and how do I know it is the one I need?
Door Config #4 describes where the cylinder and handle sit on the plate. On the 1452, the cylinder position is above the handle, and it is a non-keyed passage set, so the plate carries no working cylinder. Match the configuration to the gearbox already in your door before ordering, because a plate cut for a different configuration will not line up with the spindle and cylinder holes.
3) Will the Emtek 1452 trim fit my Marvin or JELD-WEN patio door?
The 1452 trim is referenced to multi point systems from Ashland, G-U, Caradco, JELD-WEN, Jeldwen Custom Collection (formerly Pozzi), Marvin, PGT, Premium Collection (formerly Norco) and Weathershield. Fit still comes down to the lock configuration in your specific door: this set is Door Config #4 with the cylinder above the handle and 3-5/8 inch center-to-center between the handle and cylinder holes.
4) Is the Emtek 1452 lockable, or does it just operate the latch?
Passage function only. There is no cylinder and no key in the 1452 set, so the levers retract the multi point latching and nothing more. If the patio door is an exterior opening that needs to lock, you want a keyed version of the multi point trim instead, not this one.
5) Do I have to specify handing when ordering Emtek 1452 multi point trim?
Yes, handing is required: right hand or left hand. Multi point trim is not field-reversible the way a bored lever set is, so the hand you pick is the hand you get. Stand outside the door, and the side the hinges are on gives you the hand.
6) What lever styles and finishes can I get on the Emtek 1452 sandcast bronze trim?
Ten Sandcast Bronze levers pair with the 1452 plates: Aurora, Bryce, Cimarron, Cody, Durango, Lariat, Mariposa, Montrose, Teton and Yuma. Three finishes are offered, Flat Black Bronze, Medium Bronze and Tumbled White Bronze. Lever and handing are both required choices on the order, so pick a lever from the same Sandcast Bronze collection to keep the finish consistent across the patio door and the rest of the openings.
7) Will the Emtek 1452 handles sag over time on a heavy patio door?
Each 1452 multi point trim set ships with the Spring Assist function, which returns the lever to neutral and keeps the handle from drooping. That is the usual complaint on long patio door trim where the lever is only supported by the gearbox spindle.
8) Is Emtek 1452 sandcast bronze trim suitable for a commercial building entrance?
This is residential hardware. Emtek classifies the 1452 as residential, and it is sandcast bronze patio door trim for swinging doors, so it belongs on a home, a condo unit, or the residential side of a multi-family building rather than on a commercial entry that needs graded, cycle-tested hardware.
9) What door thickness does the Emtek 1452 multi point trim work with?
1-3/8 to 1-3/4 inch doors, which covers standard residential patio door leaves. There is a door thickness field on the order, so if your door falls outside that range or you are unsure, give the measured thickness when you order rather than assuming the standard spindle length will reach.
10) Is the Emtek 1452 solid bronze or plated?
Solid bronze. The plates are sandcast bronze, and both the material and substrate are bronze rather than a bronze-look finish over a lighter base. Sandcast pieces carry visible casting texture, which is why the three finishes (Flat Black Bronze, Medium Bronze, Tumbled White Bronze) read differently from a smooth plated bronze.
