Emtek 1352 Multi Point Lock Tr...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$424.00
$339.20

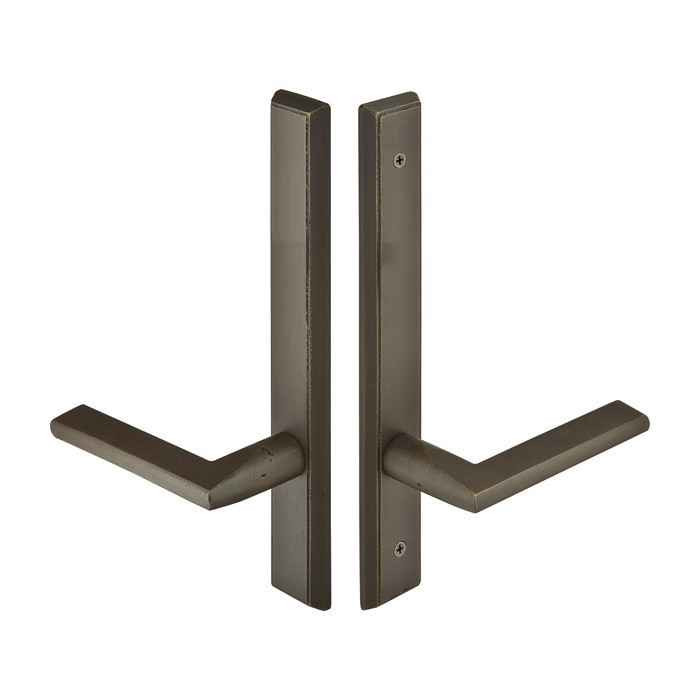

Emtek Emtek 1352 Multi Point Lock Trim (Door Config #3) - Sandcast Bronze Plates, Rectangular Style (1.5" x 11"), Non-Keyed Passage EMTEK-1352

Emtek 1352 Multi Point Lock Trim (Door Config #3) - Sandcast Bronze Plates, Rectangular Style (1.5" x 11"), Non-Keyed Passage

(No reviews yet) Write a Review

Model: 1352-FB
From the Sandcast Bronze Collection
$424.00
$339.20
Selected Finish is
Selected Lever Style is
Selected Handing is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$424.00
$339.20
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like



Specifications:

  • Backset: Adjustable 2-3/8" or 2-3/4"
  • Cross Bore: 2-1/8"
  • Door Thickness: 1-3/8" to 1-3/4"
  • Latch Faceplate: Round or Square Corner
  • Material: Brass



Emtek 1352 Multi Point Lock Trim (Door Config #3) - Sandcast Bronze Plates, Rectangular Style (1.5" x 11"), Non-Keyed Passage

  • Can be ordered with any Sandcast Bronze Levers
  • Swinging Patio Door Hardware. Set includes Plates, Handles
  • Multi Point Mortise Lock Box not included. Trims Only
  • Each Multi Point Lock Trim now includes the Spring Assist function which returns the lever to the neutral position and eliminates sagging handles.
Manufacturer Resources

Product Specs

Subcategory:
Multi Point Lock Trim
Product Group:
Mechanical Locks
Commercial/Residential:
Residential
Product Type:
Multi Point Lock Trim
Product Subgroup:
Multi Point Lock Trim
Collection:
Sandcast Bronze
Cylinder Position:
Above Handle
Door Configuration:
#3
Electronic:
No
Keyed:
No
Lock Type:
Multi Point Trim
Ref. Door Manufacturer(s):
Andersen
Series:
Rectangular
Theme:
Rustic Living
Keyed Function:
Non-Keyed
Lock Function:
Passage
MAP Policy:
Yes
Product Model:
1352
(CTC) Center-to-Center:
4-1/8"
Product Function:
Non-Keyed Passage
Product Size:
1-1/2" x 11"
Cylinder Classification:
American
Product Shape:
Rectangular
Product Style:
Rectangular
Product Material:
Bronze
Product Category:
Mechanical Locks
Product Substrate:
Bronze
Department:
Door Hardware

Emtek 1352-FB – Frequently Asked Questions

1) Does the Emtek 1352 multi point trim include the multi point mortise lock body?
No. The Emtek 1352 is trim only, and the set covers the plates and handles. The multi point mortise lock box is a separate purchase, so you need the lock case already in the door or ordered alongside it.
2) What does Door Configuration #3 mean on Emtek multi point trim, and where does the cylinder sit?
Emtek sorts its multi point trim by the arrangement of handle and cylinder on the plate. The 1352 is Door Config #3, non-keyed passage, with the cylinder position above the handle and an American cylinder classification. Because it is a passage trim there is no key cylinder supplied, so it belongs on the inactive or interior side of a swinging patio door. If your opening needs a keyed exterior side, you need the keyed version of the configuration, not this one.
3) Will Emtek 1352 trim fit my 1-3/8 inch door, and what backset does it need?
Door thickness range is 1-3/8 inch to 1-3/4 inch, so a 1-3/8 inch door works. Backset is adjustable at 2-3/8 inch or 2-3/4 inch, which covers both standard residential preps, and the cross bore is 2-1/8 inch. Handle center-to-center is 4-1/8 inch, and the plates measure 1-1/2 by 11 inches, so confirm your existing plate footprint before swapping.
4) Do I have to specify handing when ordering Emtek 1352 multi point trim?
Yes, handing is required. You pick Right Hand or Left Hand at order, along with a lever style, and there is an optional door thickness entry if your door falls outside a standard 1-3/4 inch. Get the hand wrong on a patio door and the lever sits backwards against the swing.
5) Will this Emtek trim work on an Andersen swinging patio door?
Andersen is the referenced door manufacturer for the 1352 trim, and it is built for swinging patio door hardware. Match the Emtek door configuration number to your existing multi point lock layout first, since the plate cutouts follow that configuration rather than the door brand alone.
6) Can the Emtek 1352 lock the patio door from the outside?
No. It is a non-keyed passage function, so there is no cylinder and no locking from the trim. The multi point lock body still throws its bolts via the lever lift, but key control is not part of this trim. If you need a keyed exterior side, order the keyed configuration instead.
7) What finishes does the Emtek 1352 Sandcast Bronze multi point trim come in?
Three: Flat Black Bronze (FB), Medium Bronze (MB), and Tumbled White Bronze (TWB). All are from the Sandcast Bronze collection, so they match other Emtek sandcast pieces on the same elevation. The plates are bronze, sand cast rather than plated brass trim.
8) My current patio door lever sags. Does the Emtek 1352 fix that?
It addresses it directly. Each of these multi point lock trims now ships with a spring assist that returns the lever to neutral, which is what stops the drooping handle common on heavier patio levers.
9) Is the Emtek 1352 multi point trim rated for commercial openings?
It is classified as residential hardware. For apartment units, single-family, and light multi-family patio doors it is appropriate; for a high-traffic commercial entrance you want a commercial-graded lockset instead.
10) Does the latch faceplate come round or square corner for this Emtek trim?
Both corner styles are covered, round or square, so it can follow whatever the door edge prep already is. That matters on a retrofit, where recutting the edge mortise is the part nobody wants to do.
