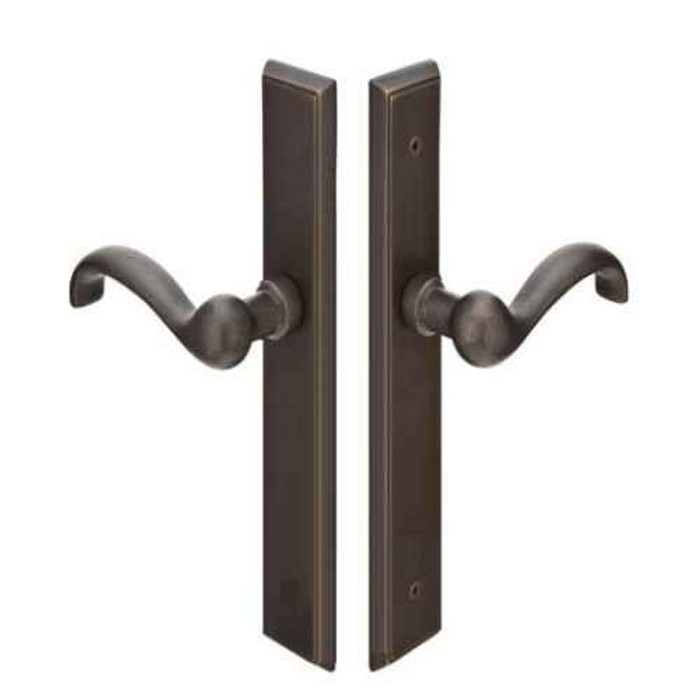

Emtek Emtek 1652 Multi Point Lock Trim (Door Config #6) - Sandcast Bronze Plates, Rectangular Style (1.5" x 11"), Non-Keyed Passage EMTEK-1652

Emtek 1652 Multi Point Lock Trim (Door Config #6) - Sandcast Bronze Plates, Rectangular Style (1.5" x 11"), Non-Keyed Passage

(No reviews yet) Write a Review

Model: 1652-FB
From the Sandcast Bronze Collection
$424.00
$339.20
Selected Finish is
Selected Lever Style is
Selected Handing is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$424.00
$339.20
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like



Specifications:

  • Backset: Adjustable 2-3/8" or 2-3/4"
  • Cross Bore: 2-1/8"
  • Door Thickness: 1-3/8" to 1-3/4"
  • Latch Faceplate: Round or Square Corner
  • Material: Brass



Emtek 1652 Multi Point Lock Trim (Door Config #6) - Sandcast Bronze Plates, Rectangular Style (1.5" x 11"), Non-Keyed Passage

  • Can be ordered with any Sandcast Bronze Levers
  • Swinging Patio Door Hardware. Set includes Plates, Handles
  • Multi Point Mortise Lock Box not included. Trims Only
  • Each Multi Point Lock Trim now includes the Spring Assist function which returns the lever to the neutral position and eliminates sagging handles.
Manufacturer Resources

Product Specs

Subcategory:
Multi Point Lock Trim
Product Group:
Mechanical Locks
Commercial/Residential:
Residential
Product Type:
Multi Point Lock Trim
Product Subgroup:
Multi Point Lock Trim
Collection:
Sandcast Bronze
Cylinder Position:
Below Handle
Door Configuration:
#6
Electronic:
No
Keyed:
No
Lock Type:
Multi Point Trim
Ref. Door Manufacturer(s):
Milgard, Pella
Series:
Rectangular
Theme:
Rustic Living
Keyed Function:
Non-Keyed
Lock Function:
Passage
MAP Policy:
Yes
Product Model:
1652
(CTC) Center-to-Center:
3-5/8"
Product Function:
Non-Keyed Passage
Product Size:
1-1/2" x 11"
Cylinder Classification:
American
Product Shape:
Rectangular
Product Style:
Rectangular
Product Material:
Bronze
Product Category:
Mechanical Locks
Product Substrate:
Bronze
Department:
Door Hardware

Emtek 1652-FB – Frequently Asked Questions

1) What door thickness does the Emtek 1652 multi point trim fit?
It covers 1-3/8 inch to 1-3/4 inch doors, which takes in both standard residential swinging patio door thicknesses. Door thickness is a required entry when you order, so give the actual measured thickness of your door rather than assuming.
2) Will this Emtek trim work on a Milgard or Pella swinging patio door?
Milgard and Pella are the reference door manufacturers for the Door Configuration #6 layout this trim is built to, with the cylinder position below the handle and 3-5/8 inch center-to-center between the handle and cylinder holes. Match your door's existing hole pattern to those numbers before ordering, since Emtek splits this trim line by configuration number.
3) Is the Emtek 1652 keyed, or does it just operate the latch?
Passage function, non-keyed. The levers retract the multi point latching and there is no cylinder or locking in this trim set. If the patio door needs to lock, you want a keyed version of the multi point trim instead.
4) Do I have to specify handing on Emtek multi point lock trim?
Yes, handing is a required selection: right hand (RH) or left hand (LH). Multi point trim is handed because the lever and plate orientation follow the door swing, and there is no field reversing on the trim. Determine handing from the hinge side as you stand outside the door.
5) What lever styles can I put on the Emtek 1652 rectangular plate?
Ten Sandcast Bronze levers pair with it: Aurora, Bryce, Cimarron, Cody, Durango, Lariat, Mariposa, Montrose, Teton and Yuma. Lever choice is a required selection on the order, and any Sandcast Bronze lever in the collection can be fitted to these plates.
6) How big are the plates on the Emtek 1652, and will they cover my old trim's holes?
The rectangular plates measure 1-1/2 x 11 inches. That is a narrow plate, so it will not hide a wide escutcheon footprint or off-pattern boring from a different configuration. It is sized to the Door Configuration #6 hole pattern with 3-5/8 inch center-to-center spacing.
7) Do the levers on this Emtek multi point trim sag over time?
Spring assist is built into every Emtek multi point lock trim now, including the 1652. It returns the lever to horizontal after each use, which is what prevents the droop you see on unsupported long levers.
8) What backset and cross bore does the Emtek 1652 need in the door?
Backset is adjustable to 2-3/8 or 2-3/4 inches, the two common residential backsets, with a 2-1/8 inch cross bore. The latch faceplate is available round corner or square corner so it can match the existing mortise in the door edge.
9) What finishes does the Emtek 1652 Sandcast Bronze trim come in?
Three: Flat Black Bronze (FB), Medium Bronze (MB) and Tumbled White Bronze (TWB). All are Sandcast Bronze finishes, so they key to other Emtek Sandcast Bronze hardware if you are matching entry and interior doors across a house.
10) Is the Emtek 1652 trim suitable for a commercial entry?
It is classed residential, made for swinging patio door hardware in homes. For a commercial opening needing a graded, code-rated lock, this bronze patio trim is the wrong family of product.
11) If I later want a keyed version, what cylinder does this Emtek multi point line take?
The Emtek multi point trim line uses an American style cylinder mounted below the handle. The 1652 itself is the non-keyed passage version and carries no cylinder, so a keyed configuration #6 trim is what you order if a lock cylinder is needed.
