Emtek 1171 Multi Point Lock Tr...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$374.00
$299.20

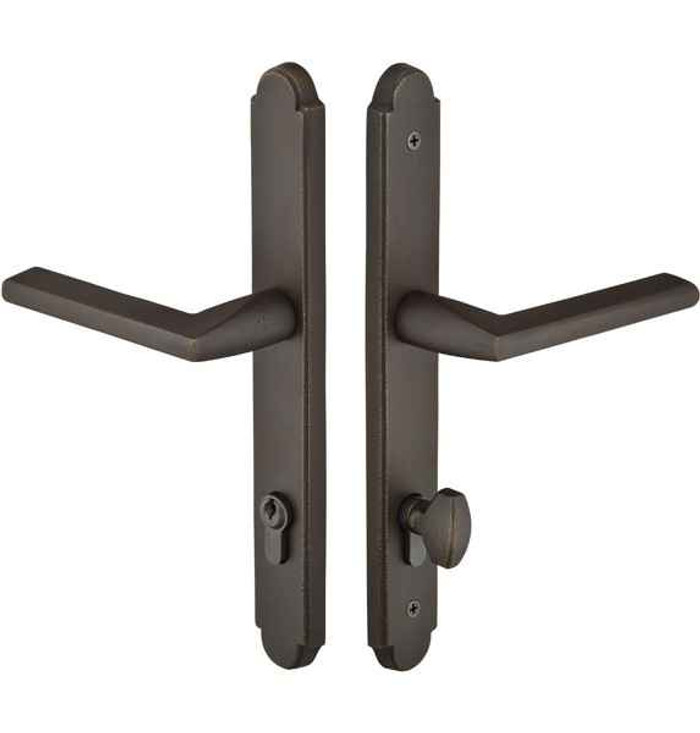

Emtek 1171 Multi Point Lock Trim Door Config #1 - Brass Plates, Concord Style (1.5" x 11"), Keyed with American Cylinder Hub Below Handle, Oil Rubbed Bronze (US10B)

Emtek 1171 Multi Point Lock Trim (Door Config #1) - Brass Plates, Concord Style (1.5" x 11"), Keyed with American Cylinder Hub BELOW Handle

(1 review) Write a Review

Model: 1171-US15
From the Brass Collection
$374.00
$299.20
Selected Finish is
Selected Lever Style is
Selected Handing is
Selected FREE KEYING Options is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$374.00
$299.20
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Emtek 1171 Concord Multipoint Lock Trim — Door Config #1, Keyed with American Cylinder Below Handle

Trim Only — No Lock Body Included. This kit provides the interior and exterior trim plates, levers of your choice, and the American cylinder (keyed entry function). The multipoint lock body/mechanism is not included and must be sourced separately from your door manufacturer or installer.

The 1171 is Emtek's Concord-style trim for Door Configuration #1 multipoint doors. Forged brass plates (1‑1/2" × 11") with a 3‑5/8" center-to-center hole spacing. The keyed American cylinder sits below the handle. Available in Schlage keyway (standard) or Weiser WR5 keyway — select at checkout.

Compatible Door Manufacturers (Config #1): Andersen, KML by Andersen, Marvin Integrity, Atrium, G-U, Paddock Lockmaster, Superior. Verify your door's configuration number and CTC spacing before ordering.

Features:

  • Forged brass construction — lasting durability, premium weight and feel
  • Your choice of lever style included (Select, Modern, Traditional, or Transitional Brass levers)
  • Available in 8 finishes: Oil Rubbed Bronze, Satin Nickel, Pewter, Flat Black, Polished Chrome, Polished Brass (Lifetime), Unlacquered Brass, French Antique
  • Includes all necessary mounting hardware
  • Two keys shipped per lock; orders of 3+ keyed-alike ship 6 keys total
  • Covered by Emtek's limited lifetime warranty

Specifications:

  • Trim Height: 11"
  • Trim Width: 1‑1/2"
  • Center-to-Center (CTC): 3‑5/8" (92 mm)
  • Mounting Holes CTC: 7‑9/16"
  • Handle to Mount: 2‑9/16"
  • Cylinder Hub Location: Below Handle
  • Cylinder Type: American (Schlage or Weiser WR5 keyway)
  • Door Configuration: #1
  • Compatible Door Thickness: 1‑5/8", 1‑3/4", 1‑7/8", 2", 2‑1/8", 2‑1/4", 2‑3/8", 2‑1/2", 2‑5/8", 2‑3/4"
  • Material: Forged Brass
Manufacturer Resources

Product Specs

Subcategory:
Multi Point Lock Trim
Product Group:
Mechanical Locks
Commercial/Residential:
Residential
Product Type:
Multi Point Lock Trim
Product Subgroup:
Multi Point Lock Trim
Collection:
Brass
Cylinder Position:
Below Handle
Door Configuration:
#1
Electronic:
No
Keyed:
Yes
Keyed Function:
Single Cylinder
Lock Function:
Single Cylinder
Lock Type:
Multi Point Trim
Ref. Door Manufacturer(s):
Atrium, G-U, KML by Andersen, Andersen, Marvin Integrity, Paddock Lockmaster, Superior
Series:
Concord
Theme:
American Classic
MAP Policy:
Yes
Product Model:
1171
(CTC) Center-to-Center:
3-5/8"
Product Function:
Keyed with American Cylinder
Product Size:
1-1/2" x 11"
Cylinder Classification:
American
Product Style:
Concord
Product Material:
Brass
Product Category:
Mechanical Locks
Product Substrate:
Brass
Department:
Door Hardware

Emtek 1171-US15 – Frequently Asked Questions

1) Does the Emtek 1171 multipoint trim include the multipoint lock body?
No. The 1171 Concord trim is a trim-only kit: interior and exterior brass plates, the lever style you pick, the keyed American cylinder, and the mounting hardware. The multipoint gearbox that drives the rods stays with the door and has to come from the door manufacturer or your installer. If your existing mechanism still works and you only want new handles and a fresh key, this is the right kit. If the mechanism itself has failed, replacing the trim will not fix it.
2) Will the Emtek 1171 Concord trim fit my Andersen or Marvin patio door?
The 1171 is cut for Door Configuration #1, and Emtek lists that configuration against Andersen, KML by Andersen, Marvin Integrity, Atrium, G-U, Paddock Lockmaster, and Superior doors. Configuration is not a brand promise though, it is a hole pattern: measure the spacing between the handle spindle hole and the cylinder hole on your door. It needs to be 3-5/8 inches (92 mm) with the cylinder hole below the handle. If your door reads differently, it is a different config and this plate will not line up.
3) My door has the key cylinder above the handle. Can I still use the 1171?
No, and this is the most common mis-order on multipoint trim. The 1171 Concord plate is drilled with the American cylinder hub below the handle. On a plate that measures 1-1/2 by 11 inches, the cylinder and spindle holes are fixed, so a cylinder-above door will not accept it, even if the 3-5/8 inch center-to-center matches. Look for the Emtek Concord trim built for a cylinder-above configuration instead.
4) What do I need to specify when ordering Emtek 1171 multipoint trim?
Five choices, and four of them are required. Handing (right or left, taken from outside the door), lever style from the brass range, keyway (Schlage is standard, Weiser WR5 is the alternative), keying (keyed different or keyed alike, with an optional key code if you are matching an existing system), and finish. Door thickness is the optional field, and you should fill it in anyway so the spindle and screws suit your slab.
5) Can Emtek multipoint trim be keyed to match my existing Schlage keys?
Yes, if your house is on a Schlage keyway. The 1171 ships with an American cylinder in Schlage keyway as standard, or Weiser WR5 if that is what your other doors use, and you can supply a key code at checkout to have it cut to your existing system. Ordering keyed alike across multiple locks gets them all on one key. Two keys ship per lock, and orders of three or more keyed alike ship six keys total.
6) Does handing matter on the Emtek 1171, and how do I work out mine?
Handing matters, and it is a required selection. Stand outside the door: if the hinges are on your right, it is right hand; hinges on the left, left hand. Get it wrong and the lever points the wrong way and the plate orientation is off. There is no field-reversible option here, so settle it before you order.
7) What is the difference between multipoint lock trim and a regular entry handleset?
A regular handleset carries its own latch and deadbolt in the door edge. Multipoint trim like the 1171 carries no latching hardware at all: the lever turns a spindle that drives a gearbox already in the door, throwing hooks or rollers at several points up and down the edge. That is why the plate is long and narrow, 1-1/2 by 11 inches, and why the lock body is not part of the kit. If your door has a single bore and a separate deadbolt, you want a handleset, not this.
8) What finishes does the Emtek Concord multipoint trim come in, and will they match my other Emtek hardware?
Eight: Oil Rubbed Bronze (US10B), Satin Nickel (US15), Pewter (US15A), Flat Black (US19), Polished Chrome (US26), Polished Brass Lifetime (US3), Unlacquered Brass (US3NL), and French Antique (US7). All eight are offered with either keyway. These are Emtek's standard brass-collection finish codes, so a US15 lever set elsewhere in the house will read the same as a US15 Concord plate. Unlacquered brass is the one to think about: it has no clear coat and will darken with handling, which is the point of it but not what you want if the rest of the house is staying bright.
9) Is the Emtek 1171 rated for a commercial entrance?
Emtek catalogues the 1171 Concord multipoint trim as residential hardware, and the multipoint doors it fits, Andersen, Marvin Integrity, Atrium and the like, are residential and light-commercial patio and entry doors. For a property manager doing unit entries or patio doors in multi-family, that is a fit. For a high-traffic storefront or an institutional opening, specify commercial-grade hardware instead.
10) Is the Emtek 1171 trim solid brass or plated?
Forged solid brass, plates and levers both, from Emtek's brass collection. Forged brass gives the plate its weight and it takes finish plating properly rather than flaking off a zinc casting. On an exterior patio or entry door that is the material difference that shows up in five years.
11) Is there an electronic or keypad version of the Emtek 1171 multipoint trim?
No. The 1171 is mechanical: a single-cylinder keyed American cylinder outside, thumbturn-free lever operation inside, no electronics, no power, nothing to fail when the batteries die. If you need keyless entry on a Config #1 multipoint door, that is a different Emtek trim, not this one.
12) Can I pick any Emtek lever for the 1171, or only certain ones?
The lever comes from Emtek's brass lever range, and it is a required pick, not an accessory bought separately. The list spans the L-Square, T-Bar and R-Bar bar levers in Faceted, Hammered, Knurled, Tribeca, Straight Knurled and White Marble treatments, the modern cast levers (Athena, Helios, Hermes, Luzern, Poseidon, Stuttgart, Argos, Aston, Basel, Breslin, Dumont, Freestone, Geneva, Hercules, Mercury, Myles, Sion, Spencer, Triton), and the traditional and transitional group (Cortina, Manning, Milano, Merrimack, Turino, Coventry, Elan, Ribbon and Reed, Rope, Rustic, Santa Fe, Wembley, Arts and Crafts, Hammered). Whatever you choose ships in the same finish as the plate.
How fast can I get the Emtek 1171-US15 delivered?
Most orders ship the same day from our distribution partners, with quick delivery throughout the continental U.S. Need it urgently? Contact Us for expedited shipping options.
Can I return it if it doesn’t work for me?
Yes—ZenSupply offers a hassle-free return policy. If the product isn’t the right fit, reach out to our support team for a return authorization or setup a return by following our return instructions.
Does the Emtek 1171-US15 come with a warranty?
Absolutely. The Emtek 1171-US15 is backed by a manufacturer’s warranty. For full warranty terms, check the product documentation or Contact Us.
How do I get technical support or installation help for the Emtek 1171-US15?
You can call, text, or email our expert support team for fast answers. We’re here to help with product selection, installation tips, and troubleshooting. Contact Us
Why buy the Emtek 1171-US15 from ZenSupply?
ZenSupply makes it easy to get the commercial door hardware you need—fast shipping, expert support, and rewards on every order. Our team is always ready to help you choose the right product for your project.

Product Reviews

  • 5
    Elegant and Secure Multi-Point Lock Trim

    Posted by Ivan on Mar 24th 2024

    Impressed with the sleek design and sturdy construction of this multi-point lock trim. The brass plates add a touch of class to my door. However, the keyed entry mechanism can be a bit finicky at times, requiring some patience. Overall, a stylish and reliable choice for enhancing home security.

!
