Emtek 1671 Multi Point Lock Tr...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$381.00
$304.80

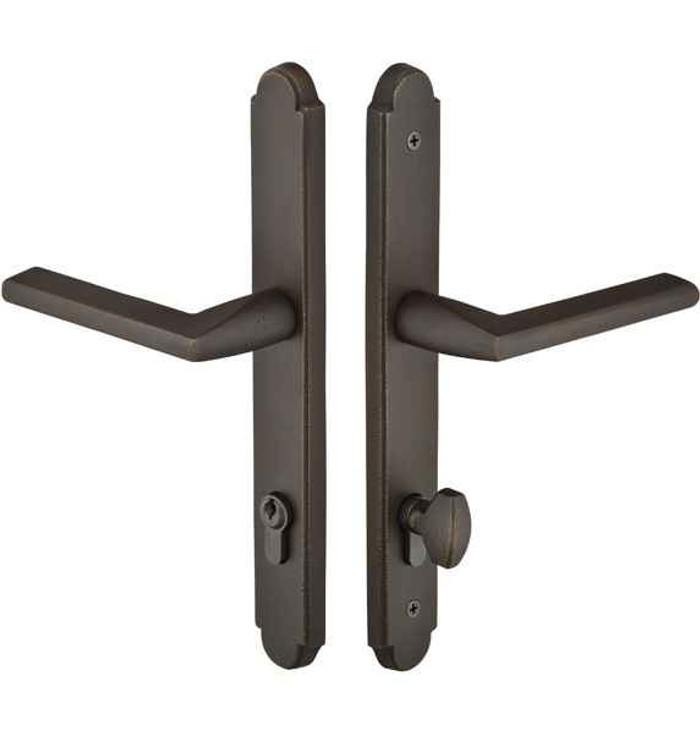

Emtek 1671 Multi Point Lock Trim (Door Config #6) - Brass Plates, Concord Style (1.5" x 11"), Keyed with American Cylinder Hub BELOW Handle

Emtek 1671 Multi Point Lock Trim (Door Config #6) - Brass Plates, Concord Style (1.5" x 11"), Keyed with American Cylinder Hub BELOW Handle

(No reviews yet) Write a Review

Model: 1671-US15
From the Brass Collection
$381.00
$304.80
Selected Finish is
Selected Lever Style is
Selected Handing is
Selected FREE KEYING Options is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$381.00
$304.80
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like



Specifications:

  • Door Configuration: Configuration #6
  • Plate Size: 1.5" x 11"
  • Material: Brass
  • Plate Style: Concord
  • Keyed: Yes
  • Function: Keyed Entry
  • Cylinder Type: American Cylinder
  • Cylinder Position: Below Handle
  • Product Type: Multi Point Lock Trim



Emtek 1671 Multi Point Lock Trim (Door Config #6) - Brass Plates, Concord Style (1.5" x 11"), Keyed with American Cylinder Hub BELOW Handle

  • Can be ordered with any Brass Levers
  • Swinging Patio Door Hardware. Set includes Plates, Handles, and Cylinder
  • Multi Point Mortise Lock Box not included. Trims Only
  • Each Multi Point Lock Trim now includes the Spring Assist function which returns the lever to the neutral position and eliminates sagging handles.
Manufacturer Resources

Product Specs

Subcategory:
Multi Point Lock Trim
Product Group:
Mechanical Locks
Commercial/Residential:
Residential
Product Type:
Multi Point Lock Trim
Product Subgroup:
Multi Point Lock Trim
Collection:
Brass
Cylinder Position:
Below Handle
Door Configuration:
#6
Electronic:
No
Keyed:
Yes
Keyed Function:
Single Cylinder
Lock Function:
Single Cylinder
Lock Type:
Multi Point Trim
Ref. Door Manufacturer(s):
Milgard, Pella
Series:
Concord
Theme:
American Classic
MAP Policy:
Yes
Product Model:
1671
(CTC) Center-to-Center:
3-5/8"
Product Function:
Keyed with American Cylinder
Product Size:
1-1/2" x 11"
Cylinder Classification:
American
Product Style:
Concord
Product Material:
Brass
Product Category:
Mechanical Locks
Product Substrate:
Brass
Department:
Door Hardware

Emtek 1671-US15 – Frequently Asked Questions

1) Does the Emtek 1671 multipoint trim include the multipoint lock mechanism itself?
No. The 1671 is trim only. What ships is the plates, the handles, and the cylinder. The multipoint mortise lock box has to be sourced separately, so if you are replacing a whole system you need the gearbox already in the door or ordered alongside. This is swinging patio door hardware, so the existing multipoint case in the door edge stays put and the 1671 dresses it.
2) Will the Emtek 1671 Concord trim fit my Milgard or Pella patio door?
Milgard and Pella are the reference door manufacturers for the 1671. The deciding number is the spacing: this is a Door Configuration #6 trim with 3-5/8 inch center-to-center between the handle hub and the cylinder, cylinder sitting below the handle. Measure your existing plate hub-to-cylinder before ordering. If it comes out at something other than 3-5/8 inches, you are on a different Emtek door configuration and need the matching trim number.
3) Can I key the Emtek 1671 to my existing Schlage or Kwikset house keys?
The cylinder is an American-style cylinder and you pick the keyway when you order: Schlage keyway is the standard option, Weiser WR5 is the alternative. WR5 is the Kwikset-family keyway, so if the rest of the house is on Kwikset-style keys, take the WR5. Keying is single cylinder, meaning key outside and thumb-operated lever inside. You can order keyed alike with other pieces or keyed different, and there is a field to key to a specific code if you have one on file.
4) Do I have to specify handing on the Emtek 1671 multipoint trim?
Handing is required, right hand or left hand, and it is not field-reversible on the order form. Stand outside the door: if the hinges are on your right and it swings away from you, that is right hand. Get it wrong and the lever and the cylinder sit on the wrong sides of the plate. Lever style is also a required choice, so have both settled before you place the order.
5) What size are the Emtek Concord plates and will they cover the old plate footprint?
Concord plates measure 1-1/2 x 11 inches. That is a narrow, tall plate, so it suits the slim stile of a swinging patio door but will not hide a wider escutcheon or a larger paint shadow left by a previous plate. Hold a 1-1/2 by 11 inch outline against the door before you pull the old trim if the finish underneath matters.
6) Which levers can I use with the Emtek 1671 Concord trim?
Any Emtek brass lever pairs with the 1671, and lever style is a required selection. The range runs from the L-Square, T-Bar and R-Bar bar levers in Faceted, Hammered, Knurled, Tribeca, Straight Knurled and White Marble, through cast styles like Athena, Helios, Hermes, Luzern, Poseidon, Stuttgart, Argos, Aston, Basel, Breslin, Dumont, Freestone, Geneva, Hercules, Mercury, Myles, Sion, Spencer and Triton, to traditional shapes such as Cortina, Manning, Milano, Merrimack, Turino, Coventry, Elan, Ribbon and Reed, Rope, Rustic, Santa Fe, Wembley, Arts and Crafts and Hammered. If you are matching interior door levers already in the house, pick the same name here.
7) Is the Emtek 1671 multipoint trim rated for a commercial entrance?
The 1671 is residential door hardware, built as swinging patio door trim in solid brass. For a storefront, an apartment building common entry, or anything taking commercial traffic, look at a Grade 1 or Grade 2 commercial lockset instead. For a house, a condo unit door, or a single-family rental patio door it is the right class of product.
8) Will the lever on this Emtek patio door trim sag over time?
Spring assist is built into the 1671 trim. It returns the lever to the neutral horizontal position and is there specifically to stop the droop that older multipoint trims develop after a few years of use. Worth knowing if you are replacing a sagging set rather than fitting new.
9) What finishes does the Emtek 1671 Concord multipoint trim come in?
Eight finishes, and each one is available with either keyway: Oil Rubbed Bronze (US10B), Satin Nickel (US15), Pewter (US15A), Flat Black (US19), Polished Chrome (US26), Polished Brass Lifetime (US3), Unlacquered Brass (US3NL), and French Antique (US7). Unlacquered brass is the one that will patina, so choose it deliberately if you want the door to age rather than stay bright.
10) Do I need to give the door thickness when ordering the Emtek 1671 trim?
There is an optional door thickness field on the order. Multipoint patio doors vary more than standard interior doors, so if yours is anything out of the ordinary, put the measured thickness in that field rather than leaving it blank. It affects how the spindle and cylinder tailpiece length are set up for your door.
11) Is the Emtek 1671 an electronic or keypad multipoint handle set?
Strictly mechanical. The 1671 is a keyed trim with an American cylinder, no keypad, no electronics, no wiring to run. If you want code or smartphone entry on a multipoint patio door, you need an electronic multipoint trim instead, not this one.
