Emtek 11B2 Multi Point Lock Tr...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$381.00
$304.80

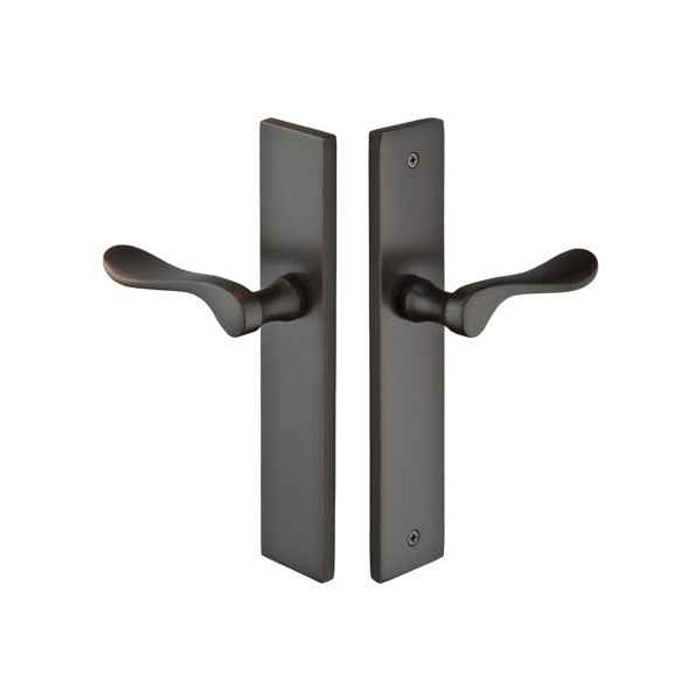

Emtek Emtek 11B2 Multi Point Lock Trim (Door Config #1) - Brass Plates, Modern Style (2" x 10"), Non-Keyed Passage EMTEK-11B2

Emtek 11B2 Multi Point Lock Trim (Door Config #1) - Brass Plates, Modern Style (2" x 10"), Non-Keyed Passage

(No reviews yet) Write a Review

Model: 11B2-US19
From the Brass Collection
$381.00
$304.80
Selected Finish is
Selected Lever Style is
Selected Handing is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$381.00
$304.80
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like



Specifications:

  • Backset: Adjustable 2-3/8" or 2-3/4"
  • Cross Bore: 2-1/8"
  • Door Thickness: 1-3/8" to 1-3/4"
  • Latch Faceplate: Round or Square Corner
  • Material: Brass



Emtek 11B2 Multi Point Lock Trim (Door Config #1) - Brass Plates, Modern Style (2" x 10"), Non-Keyed Passage


  • Can be ordered with any Brass Levers
  • Swinging Patio Door Hardware. Set includes Plates, Handles
  • Multi Point Mortise Lock Box not included. Trims Only
  • Each Multi Point Lock Trim now includes the Spring Assist function which returns the lever to the neutral position and eliminates sagging handles.
Manufacturer Resources

Product Specs

Subcategory:
Multi Point Lock Trim
Product Group:
Mechanical Locks
Commercial/Residential:
Residential
Product Type:
Multi Point Lock Trim
Product Subgroup:
Multi Point Lock Trim
Collection:
Brass
Cylinder Position:
Below Handle
Door Configuration:
#1
Electronic:
No
Keyed:
No
Lock Type:
Multi Point Trim
Ref. Door Manufacturer(s):
Atrium, G-U, KML by Andersen, Andersen, Marvin Integrity, Paddock Lockmaster, Superior
Series:
Modern
Theme:
Contemporary
Keyed Function:
Non-Keyed
Lock Function:
Passage
MAP Policy:
Yes
Product Model:
11B2
(CTC) Center-to-Center:
3-5/8"
Product Function:
Non-Keyed Passage
Product Size:
2" x 10"
Cylinder Classification:
American
Product Style:
Modern
Product Material:
Brass
Product Category:
Mechanical Locks
Product Substrate:
Brass
Department:
Door Hardware

Emtek 11B2-US19 – Frequently Asked Questions

1) What door manufacturers does the Emtek Door Config #1 multi point trim line up with?
Config #1 is the layout referenced for Atrium, G-U, KML by Andersen, Andersen, Marvin Integrity, Paddock Lockmaster, and Superior doors. The key detail that defines it is a 3-5/8 inch center-to-center between the handle and the cylinder hole, with the cylinder sitting below the handle. Measure your existing door prep against that 3-5/8 inch spacing before ordering.
2) Will the Emtek 11B2 trim work on a 1-3/8 inch swinging patio door?
Yes. The 11B2 covers doors from 1-3/8 to 1-3/4 inches thick, which spans both the older lighter patio door and the standard 1-3/4 inch slab. Door thickness is an optional field on the order, so specify it if your door sits at the thin end.
3) Is the Emtek 11B2 keyed, and can I lock the door with it?
It is a non-keyed passage trim. The levers turn the multi point mechanism to operate the latch, but there is no key cylinder and no locking function in this configuration. If you need to key the opening, you want the keyed entry version of the Config #1 trim instead, which uses an American-style cylinder mounted below the handle.
4) Is the Emtek 11B2 multi point trim suitable for a commercial entrance?
It is classified residential hardware, intended for swinging patio doors in a home. For an apartment community or commercial opening with traffic and code requirements, a residential multi point patio trim is the wrong tool; look at a graded commercial mortise or cylindrical lockset instead.
5) What backset and bore does the Emtek multi point trim need in the door?
The latch is adjustable to either a 2-3/8 or 2-3/4 inch backset, the two standard residential backsets, and it works with a 2-1/8 inch cross bore. Latch faceplate comes in round or square corner so it can match the existing mortise in the edge of the door.
6) How big are the plates on the Emtek 11B2 Modern trim?
The plates measure 2 x 10 inches in the Modern, contemporary-styled profile. That is a narrow rectangular escutcheon, so it suits a patio door stile without crowding the glass, but it will not cover a larger cut-out left behind by a wider plate.
7) Do I have to order the levers separately with the Emtek 11B2?
No, the set includes plates and handles, but you pick the lever style when you order. Any Emtek brass lever works with it, from the L-Square, T-Bar and R-Bar modern bars in Faceted, Hammered, Knurled, Tribeca, Straight Knurled or White Marble, through to traditional shapes like Cortina, Milano, Rope, Rustic and Arts and Crafts.
8) Is the Emtek 11B2 handed, and how do I tell which one I need?
Yes, handing matters. You order it as Right Hand or Left Hand. Standing outside the door looking at it, the side the hinges are on tells you the hand. Get it wrong and the lever and plate orientation will not match the swing.
9) Will the levers on this Emtek trim sag over time?
Each multi point lock trim now ships with a spring assist that returns the lever to neutral, which is what keeps handles from drooping on a heavy patio door. That is built into the trim, not something you add.
10) What finishes does the Emtek 11B2 brass trim come in for matching other hardware in the house?
Seven finishes: Oil Rubbed Bronze (US10B), Lifetime Polished Nickel (US14), Satin Nickel (US15), Flat Black (US19), Polished Chrome (US26), Unlacquered Brass (US3NL) and Satin Brass (US4). All are on a brass substrate, so they pair with the rest of Emtek's brass collection across the interior doors.
